Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 128,000
ssj_ops@100% per JVM = 64,000
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     126,366
Calibration 2     128,019
Calibration 3     128,333
ssj_ops@calibrated=128,176
100% 99.9% 128,176 128,000
90% 90.3% 115,358 115,760
80% 80.7% 102,541 103,495
70% 69.7% 89,723 89,345
60% 59.9% 76,905 76,775
50% 48.8% 64,088 62,542
40% 40.1% 51,270 51,402
30% 29.5% 38,453 37,832
20% 19.5% 25,635 24,966
10% 10.0% 12,818 12,816
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI34.001 64,460
HITACHI34.002 63,540
ssj_ops@100% 128,000
ssj_ops@100% per JVM 64,000

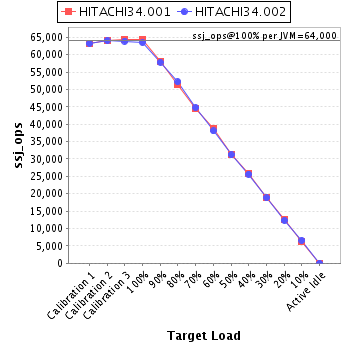

Graph of per-instance results

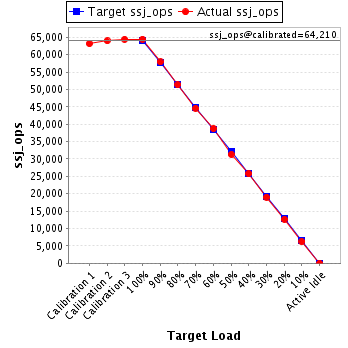

JVM 'HITACHI34.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,129
Calibration 2     63,977
Calibration 3     64,443
ssj_ops@calibrated=64,210
100% 100.4% 64,210 64,460
90% 90.2% 57,789 57,898
80% 79.9% 51,368 51,328
70% 69.5% 44,947 44,608
60% 60.3% 38,526 38,722
50% 48.8% 32,105 31,327
40% 40.1% 25,684 25,749
30% 29.7% 19,263 19,058
20% 19.7% 12,842 12,638
10% 9.7% 6,421 6,229
Active Idle   0 0
Graph of results

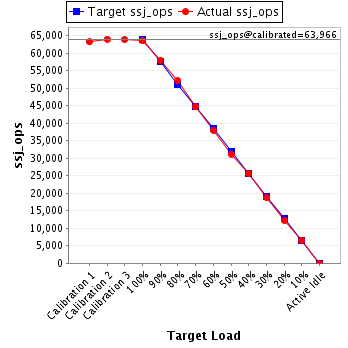

JVM 'HITACHI34.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,237
Calibration 2     64,042
Calibration 3     63,889
ssj_ops@calibrated=63,966
100% 99.3% 63,966 63,540
90% 90.5% 57,569 57,861
80% 81.6% 51,172 52,168
70% 69.9% 44,776 44,737
60% 59.5% 38,379 38,053
50% 48.8% 31,983 31,215
40% 40.1% 25,586 25,653
30% 29.4% 19,190 18,774
20% 19.3% 12,793 12,327
10% 10.3% 6,397 6,587
Active Idle   0 0
Graph of results
