Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 127,169
ssj_ops@100% per JVM = 63,585
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,321
Calibration 2     127,862
Calibration 3     128,013
ssj_ops@calibrated=127,938
100% 99.4% 127,938 127,169
90% 89.8% 115,144 114,889
80% 79.9% 102,350 102,170
70% 69.9% 89,556 89,416
60% 60.4% 76,763 77,226
50% 50.0% 63,969 64,006
40% 40.3% 51,175 51,610
30% 30.2% 38,381 38,684
20% 20.1% 25,588 25,672
10% 10.2% 12,794 13,100
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI8.001 63,062
HITACHI8.002 64,107
ssj_ops@100% 127,169
ssj_ops@100% per JVM 63,585
Graph of per-instance results

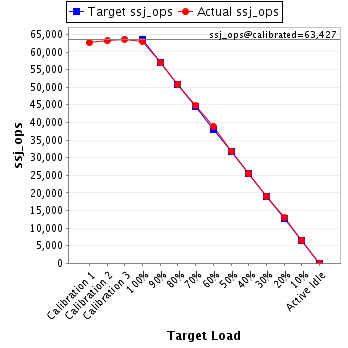

JVM 'HITACHI8.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,631
Calibration 2     63,209
Calibration 3     63,644
ssj_ops@calibrated=63,427
100% 99.4% 63,427 63,062
90% 89.8% 57,084 56,942
80% 80.1% 50,742 50,794
70% 70.6% 44,399 44,755
60% 61.1% 38,056 38,753
50% 50.2% 31,713 31,840
40% 40.2% 25,371 25,521
30% 29.9% 19,028 18,975
20% 20.3% 12,685 12,856
10% 10.2% 6,343 6,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

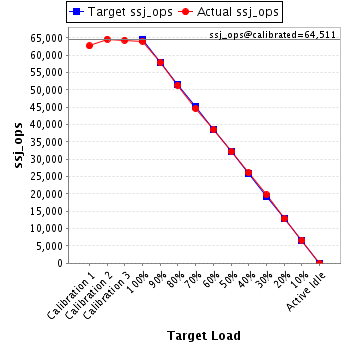

JVM 'HITACHI8.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,690
Calibration 2     64,653
Calibration 3     64,368
ssj_ops@calibrated=64,511
100% 99.4% 64,511 64,107
90% 89.8% 58,060 57,947
80% 79.6% 51,609 51,375
70% 69.2% 45,157 44,661
60% 59.6% 38,706 38,473
50% 49.9% 32,255 32,166
40% 40.4% 25,804 26,089
30% 30.6% 19,353 19,709
20% 19.9% 12,902 12,816
10% 10.3% 6,451 6,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
