Acer Incorporated Gateway GR585 F1 SPECpower_ssj2008 = 2,210 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Apr 6, 2011
Hardware Availability: Jul-2010 Software Availability: Dec-2009 Publication: May 4, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 523 23.9
Calibration 2 527 24.4
Calibration 3 529 24.5
100% 524 24.0
90% 498 23.8
80% 477 23.9
70% 447 23.7
60% 419 23.6
50% 393 24.1
40% 355 24.0
30% 320 23.6
20% 292 23.8
10% 267 24.3
Active Idle 192 24.4

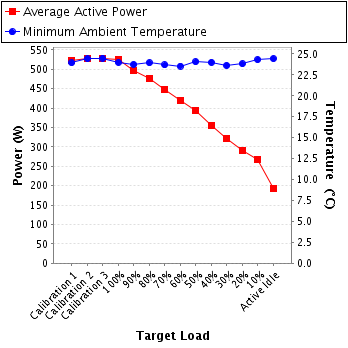

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Calibration Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 10-06-BAC-041-01
Date of Calibration: 1-Jun-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 2.54 5.0 0.965 523 0.4%
Calibration 2 215 300.0 2.54 5.0 0.964 527 0.4%
Calibration 3 216 300.0 2.54 5.0 0.964 529 0.4%
100% 215 300.0 2.52 5.0 0.964 524 0.4%
90% 216 300.0 2.40 5.0 0.962 498 0.5%
80% 216 300.0 2.30 5.0 0.961 477 0.5%
70% 216 300.0 2.16 5.0 0.959 447 0.5%
60% 216 300.0 2.03 5.0 0.956 419 0.5%
50% 215 300.0 1.92 5.0 0.954 393 0.5%
40% 215 300.0 1.74 5.0 0.948 355 0.6%
30% 216 300.0 1.58 2.0 0.942 320 0.4%
20% 217 300.0 1.44 2.0 0.935 292 0.4%
10% 217 300.0 1.32 2.0 0.929 267 0.4%
Active Idle 216 300.0 1.00 2.0 0.884 192 0.5%

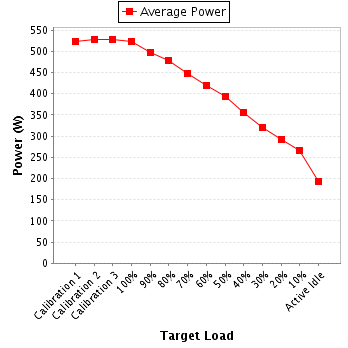

Power details for pwr1
