Acer Incorporated Gateway GR585 F1 ssj_ops@100% = 1,664,712
ssj_ops@100% per JVM = 208,089
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Apr 6, 2011
Hardware Availability: Jul-2010 Software Availability: Dec-2009 Publication: May 4, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,684,859
Calibration 2     1,685,179
Calibration 3     1,684,261
ssj_ops@calibrated=1,684,720
100% 98.8% 1,684,720 1,664,712
90% 89.9% 1,516,248 1,514,689
80% 80.0% 1,347,776 1,348,303
70% 70.0% 1,179,304 1,179,237
60% 59.7% 1,010,832 1,006,588
50% 50.0% 842,360 841,849
40% 40.2% 673,888 676,766
30% 30.2% 505,416 508,634
20% 20.0% 336,944 337,640
10% 10.0% 168,472 168,560
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GR585 F1
Form Factor: 2U
CPU Name: AMD Opteron 6168
CPU Characteristics: 12-Core, 1.90 GHz, 12 MB L3 cache
CPU Frequency (MHz): 1900
CPU(s) Enabled: 48 cores, 4 chips, 12 cores/chip
Hardware Threads: 48 (1 / core)
CPU(s) Orderable: 2, 4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 16 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, 3A, and 4A populated on each processor
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41F-1R
Disk Drive: 1 x 500GB SATA2 7200 RPM 3.5" HDD, Acer part #KH.500W8.019
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: PS2
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008 Enterprise
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [3F,FC0,3F000,FC0000,3F000000,FC0000000,3F000000000,FC0000000000]
JVM Instances: 8
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: T01
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-CHT7NBLTVIG.001 210,538
WIN-CHT7NBLTVIG.002 208,505
WIN-CHT7NBLTVIG.003 205,209
WIN-CHT7NBLTVIG.004 204,076
WIN-CHT7NBLTVIG.005 210,262
WIN-CHT7NBLTVIG.006 206,716
WIN-CHT7NBLTVIG.007 213,028
WIN-CHT7NBLTVIG.008 206,379
ssj_ops@100% 1,664,712
ssj_ops@100% per JVM 208,089
Graph of per-instance results
JVM 'WIN-CHT7NBLTVIG.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     211,990
Calibration 2     211,861
Calibration 3     211,528
ssj_ops@calibrated=211,694
100% 99.5% 211,694 210,538
90% 89.8% 190,525 190,065
80% 80.5% 169,356 170,332
70% 70.2% 148,186 148,553
60% 59.3% 127,017 125,468
50% 49.9% 105,847 105,662
40% 40.0% 84,678 84,751
30% 30.6% 63,508 64,870
20% 19.9% 42,339 42,072
10% 10.0% 21,169 21,218
Active Idle   0 0
Graph of results
JVM 'WIN-CHT7NBLTVIG.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     209,480
Calibration 2     209,753
Calibration 3     209,851
ssj_ops@calibrated=209,802
100% 99.4% 209,802 208,505
90% 90.2% 188,822 189,158
80% 80.1% 167,842 168,025
70% 68.9% 146,862 144,614
60% 59.5% 125,881 124,926
50% 49.9% 104,901 104,758
40% 40.2% 83,921 84,278
30% 29.6% 62,941 62,017
20% 20.3% 41,960 42,681
10% 10.1% 20,980 21,178
Active Idle   0 0
Graph of results
JVM 'WIN-CHT7NBLTVIG.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     204,819
Calibration 2     205,780
Calibration 3     205,482
ssj_ops@calibrated=205,631
100% 99.8% 205,631 205,209
90% 89.9% 185,068 184,805
80% 80.2% 164,505 164,981
70% 70.1% 143,942 144,109
60% 60.5% 123,379 124,421
50% 49.6% 102,816 102,047
40% 40.2% 82,252 82,635
30% 30.1% 61,689 61,919
20% 20.2% 41,126 41,521
10% 10.2% 20,563 20,944
Active Idle   0 0
Graph of results
JVM 'WIN-CHT7NBLTVIG.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     213,752
Calibration 2     213,463
Calibration 3     213,705
ssj_ops@calibrated=213,584
100% 95.5% 213,584 204,076
90% 89.5% 192,226 191,204
80% 80.7% 170,867 172,469
70% 70.1% 149,509 149,817
60% 59.2% 128,150 126,358
50% 50.2% 106,792 107,226
40% 40.1% 85,434 85,551
30% 30.5% 64,075 65,153
20% 19.7% 42,717 42,122
10% 9.9% 21,358 21,154
Active Idle   0 0
Graph of results
JVM 'WIN-CHT7NBLTVIG.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     211,607
Calibration 2     211,528
Calibration 3     211,678
ssj_ops@calibrated=211,603
100% 99.4% 211,603 210,262
90% 90.0% 190,443 190,356
80% 79.1% 169,282 167,377
70% 69.8% 148,122 147,800
60% 60.2% 126,962 127,418
50% 50.4% 105,802 106,579
40% 40.4% 84,641 85,508
30% 30.5% 63,481 64,507
20% 20.3% 42,321 42,949
10% 10.0% 21,160 21,253
Active Idle   0 0
Graph of results
JVM 'WIN-CHT7NBLTVIG.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     210,055
Calibration 2     209,894
Calibration 3     209,006
ssj_ops@calibrated=209,450
100% 98.7% 209,450 206,716
90% 90.4% 188,505 189,412
80% 79.1% 167,560 165,692
70% 70.6% 146,615 147,932
60% 60.0% 125,670 125,775
50% 50.3% 104,725 105,323
40% 40.4% 83,780 84,624
30% 30.2% 62,835 63,150
20% 20.0% 41,890 41,883
10% 9.9% 20,945 20,713
Active Idle   0 0
Graph of results

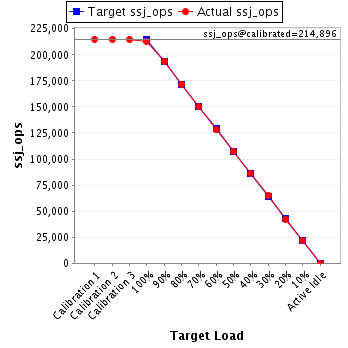

JVM 'WIN-CHT7NBLTVIG.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     214,918
Calibration 2     215,036
Calibration 3     214,757
ssj_ops@calibrated=214,896
100% 99.1% 214,896 213,028
90% 90.2% 193,406 193,763
80% 80.0% 171,917 172,006
70% 69.9% 150,427 150,236
60% 59.5% 128,938 127,924
50% 50.0% 107,448 107,526
40% 40.1% 85,958 86,131
30% 30.1% 64,469 64,680
20% 19.5% 42,979 42,010
10% 10.0% 21,490 21,453
Active Idle   0 0
Graph of results
JVM 'WIN-CHT7NBLTVIG.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     208,240
Calibration 2     207,865
Calibration 3     208,253
ssj_ops@calibrated=208,059
100% 99.2% 208,059 206,379
90% 89.4% 187,253 185,926
80% 80.5% 166,447 167,421
70% 70.3% 145,641 146,175
60% 59.7% 124,836 124,299
50% 49.4% 104,030 102,729
40% 40.0% 83,224 83,288
30% 30.0% 62,418 62,338
20% 20.4% 41,612 42,402
10% 9.9% 20,806 20,646
Active Idle   0 0
Graph of results
