Acer Incorporated Gateway GR585 F1 SPECpower_ssj2008 = 2,350 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Apr 6, 2011
Hardware Availability: Feb-2011 Software Availability: Dec-2009 Publication: May 4, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 571 25.4
Calibration 2 574 25.1
Calibration 3 577 25.8
100% 571 25.2
90% 538 24.9
80% 511 25.4
70% 478 26.1
60% 439 24.6
50% 402 24.8
40% 360 25.6
30% 324 26.1
20% 295 26.1
10% 266 25.9
Active Idle 185 24.4

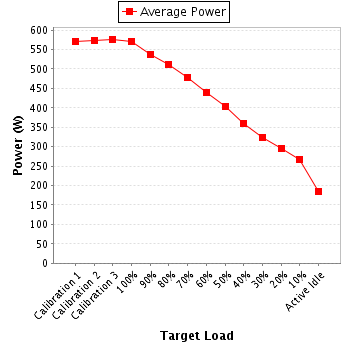

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Calibration Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 10-06-BAC-041-01
Date of Calibration: 1-Jun-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 2.75 5.0 0.966 571 0.4%
Calibration 2 215 300.0 2.76 5.0 0.966 574 0.4%
Calibration 3 215 300.0 2.77 5.0 0.966 577 0.4%
100% 215 300.0 2.75 5.0 0.966 571 0.4%
90% 215 300.0 2.59 5.0 0.965 538 0.4%
80% 216 300.0 2.46 5.0 0.963 511 0.4%
70% 216 300.0 2.30 5.0 0.961 478 0.5%
60% 216 300.0 2.12 5.0 0.958 439 0.5%
50% 216 300.0 1.95 5.0 0.954 402 0.5%
40% 216 300.0 1.76 5.0 0.949 360 0.6%
30% 216 300.0 1.59 2.0 0.943 324 0.4%
20% 216 300.0 1.46 2.0 0.937 295 0.4%
10% 216 300.0 1.33 2.0 0.930 266 0.4%
Active Idle 216 300.0 0.973 2.0 0.880 185 0.5%
Power details for pwr1
