Dell Inc. PowerEdge M915 | SPECpower_ssj2008 = 2,716 overall ssj_ops/watt | ||||
Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Multi Node |
Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Jun 28, 2011 |
Hardware Availability: | Jun-2011 | Software Availability: | Feb-2011 | Publication: | Aug 2, 2011 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

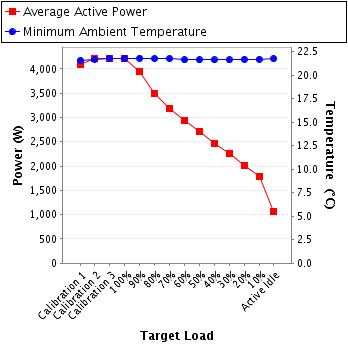

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 4,081 | 21.6 |
Calibration 2 | 4,221 | 21.7 |
Calibration 3 | 4,212 | 21.8 |
100% | 4,219 | 21.8 |
90% | 3,939 | 21.8 |
80% | 3,493 | 21.8 |
70% | 3,183 | 21.8 |
60% | 2,947 | 21.6 |
50% | 2,706 | 21.6 |
40% | 2,457 | 21.6 |
30% | 2,268 | 21.6 |
20% | 2,013 | 21.7 |
10% | 1,796 | 21.7 |
Active Idle | 1,068 | 21.8 |

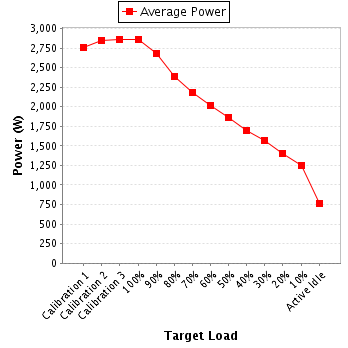

Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91KA21980 |
Connectivity: | RS-232 |
Input Connection: | Default |
Calibration Institute: | NIST |
Accredited by: | Simco Electronics |
Calibration Label: | 33427-2602 |
Date of Calibration: | 08-Nov-2010 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.0-7071d9e7 |
Setup Description: | Connected to Power Supplies 1 and 2 |

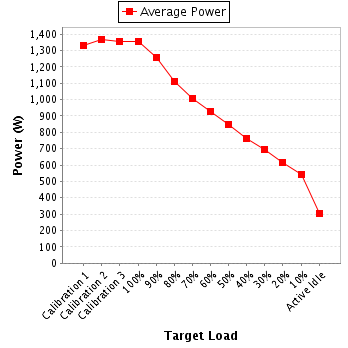

Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91KA21978 |
Connectivity: | RS-232 |
Input Connection: | Default |
Calibration Institute: | NIST |
Accredited by: | Simco Electronics |
Calibration Label: | 33427-2600 |
Date of Calibration: | 08-Nov-2010 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.0-7071d9e7 |
Setup Description: | Connected to Power Supply 3 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.30.2.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5mm in front of SUT air intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 201 | 300.0 | 13.8 | 20.0 | 0.990 | 2,751 | 0.3% |
Calibration 2 | 202 | 300.0 | 14.3 | 20.0 | 0.991 | 2,852 | 0.3% |
Calibration 3 | 202 | 300.0 | 14.3 | 20.0 | 0.991 | 2,858 | 0.3% |
100% | 202 | 300.0 | 14.3 | 20.0 | 0.991 | 2,863 | 0.3% |
90% | 203 | 300.0 | 13.4 | 20.0 | 0.990 | 2,679 | 0.4% |
80% | 203 | 300.0 | 11.9 | 20.0 | 0.989 | 2,382 | 0.4% |
70% | 203 | 300.0 | 10.8 | 20.0 | 0.988 | 2,177 | 0.4% |
60% | 204 | 300.0 | 10.0 | 20.0 | 0.988 | 2,021 | 0.4% |
50% | 204 | 300.0 | 9.23 | 10.0 | 0.987 | 1,861 | 0.3% |
40% | 205 | 300.0 | 8.38 | 10.0 | 0.987 | 1,693 | 0.3% |
30% | 205 | 300.0 | 7.76 | 10.0 | 0.987 | 1,570 | 0.3% |
20% | 206 | 300.0 | 6.87 | 10.0 | 0.987 | 1,398 | 0.3% |
10% | 207 | 300.0 | 6.15 | 10.0 | 0.988 | 1,255 | 0.4% |
Active Idle | 208 | 300.0 | 3.76 | 5.0 | 0.982 | 766 | 0.3% |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 202 | 300.0 | 6.67 | 10.0 | 0.987 | 1,331 | 0.4% |
Calibration 2 | 202 | 300.0 | 6.86 | 10.0 | 0.988 | 1,369 | 0.4% |
Calibration 3 | 202 | 300.0 | 6.78 | 10.0 | 0.987 | 1,354 | 0.4% |
100% | 202 | 300.0 | 6.78 | 10.0 | 0.988 | 1,356 | 0.4% |
90% | 203 | 300.0 | 6.29 | 10.0 | 0.987 | 1,260 | 0.4% |
80% | 204 | 300.0 | 5.54 | 10.0 | 0.985 | 1,112 | 0.4% |
70% | 204 | 300.0 | 5.02 | 5.0 | 0.983 | 1,007 | 0.3% |
60% | 204 | 300.0 | 4.61 | 5.0 | 0.982 | 925 | 0.3% |
50% | 205 | 300.0 | 4.21 | 5.0 | 0.981 | 846 | 0.3% |
40% | 205 | 300.0 | 3.80 | 5.0 | 0.979 | 763 | 0.3% |
30% | 206 | 300.0 | 3.47 | 5.0 | 0.977 | 697 | 0.4% |
20% | 206 | 300.0 | 3.06 | 5.0 | 0.975 | 615 | 0.4% |
10% | 207 | 300.0 | 2.69 | 5.0 | 0.971 | 541 | 0.4% |
Active Idle | 208 | 300.0 | 1.60 | 2.0 | 0.911 | 302 | 0.4% |
