Hitachi, Ltd. HA8000/RS210 (AL) SPECpower_ssj2008 = 2,229 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jul 9, 2011
Hardware Availability: May-2011 Software Availability: Jun-2010 Publication: Aug 10, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 291 23.6
Calibration 2 294 23.4
Calibration 3 294 23.4
100% 293 23.4
90% 273 23.4
80% 253 23.4
70% 234 23.3
60% 214 23.2
50% 198 23.2
40% 187 23.2
30% 176 23.2
20% 165 23.2
10% 153 23.2
Active Idle 118 23.2

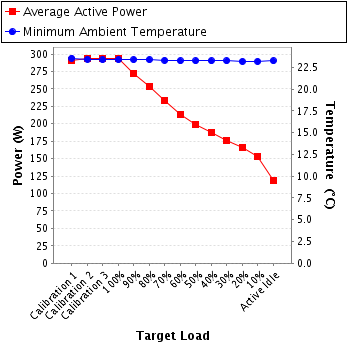

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: S2011-06-52513
Date of Calibration: 28-Jun-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 200 300.0 1.48 2.0 0.984 291 0.3%
Calibration 2 200 300.0 1.49 2.0 0.984 294 0.3%
Calibration 3 200 300.0 1.49 2.0 0.984 294 0.3%
100% 200 300.0 1.49 2.0 0.984 293 0.3%
90% 200 300.0 1.39 2.0 0.982 273 0.4%
80% 200 300.0 1.29 2.0 0.979 253 0.4%
70% 200 300.0 1.20 2.0 0.978 234 0.4%
60% 200 300.0 1.09 2.0 0.977 214 0.4%
50% 200 300.0 1.02 2.0 0.975 198 0.4%
40% 200 300.0 0.961 1.0 0.973 187 0.3%
30% 200 300.0 0.907 1.0 0.971 176 0.3%
20% 200 300.0 0.854 1.0 0.967 165 0.3%
10% 200 300.0 0.797 1.0 0.959 153 0.4%
Active Idle 200 300.0 0.628 1.0 0.943 118 0.4%
Power details for pwr1
