Hitachi, Ltd. HA8000/RS220 (AL) SPECpower_ssj2008 = 2,204 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jul 10, 2011
Hardware Availability: May-2011 Software Availability: Jun-2010 Publication: Aug 10, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 914,922 293 3,123
90% 90.0% 827,281 273 3,032
80% 80.0% 735,853 255 2,885
70% 69.8% 641,981 235 2,728
60% 60.0% 551,513 218 2,534
50% 50.0% 460,082 202 2,274
40% 40.1% 368,685 190 1,944
30% 30.1% 276,791 179 1,550
20% 19.9% 182,540 168 1,087
10% 9.9% 91,048 156 585
Active Idle 0 124 0
∑ssj_ops / ∑power = 2,204

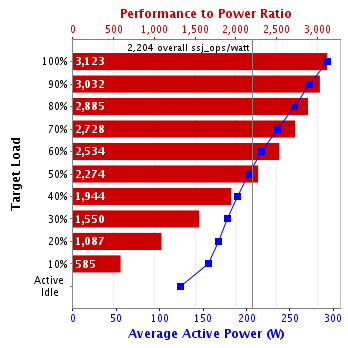

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS220 (AL)
Form Factor: 2U
CPU Name: Intel Xeon X5675
CPU Characteristics: Six Core, 3.06GHz, 12MB L3 Cache
CPU Frequency (MHz): 3066
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 6 x 8192 MB
Memory Details: 8GB 2Rx4 PC3L-10600R ECC CL9; slots DIMM_#02,#04.#06,#08,#10 and DIMM_#12 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: DELTA DPS-750QB (Hitachi P/N:GQ-BP2351)
Disk Drive: 1 x 64GB SSD SATA (Hitachi P/N:GQ-UH70647G)
Disk Controller: Diskarray Controller Board
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1500m -Xmx1500m -Xmn1300m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start/affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000.C00000]
JVM Instances: 12
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 7TTSHE-F11
Management Firmware Version: 08.40
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS110 (AH)
CPU Description: Intel Pentium E5200
Memory amount (GB): 4
Software
Operating System (OS): Microsoft Windows Server 2008 Enterprise 32-bit SP2
JVM Vendor: Oracle Corporation
JVM Version: Java(TM) SE Runtime Environment (build 1.6.0_17-b04)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: S2011-06-52513
Date of Calibration: 28-Jun-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 293 23.8
90% 273 23.8
80% 255 23.8
70% 235 23.9
60% 218 23.9
50% 202 23.9
40% 190 23.9
30% 179 23.8
20% 168 23.8
10% 156 23.8
Active Idle 124 23.8
Line Standard Minimum Temperature (°C) Elevation (m)
200V / 50 Hz / 1 phase / 2 wires 23.8 105
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     908,049
Calibration 2     920,778
Calibration 3     917,758
ssj_ops@calibrated=919,268
100% 99.5% 919,268 914,922
90% 90.0% 827,341 827,281
80% 80.0% 735,415 735,853
70% 69.8% 643,488 641,981
60% 60.0% 551,561 551,513
50% 50.0% 459,634 460,082
40% 40.1% 367,707 368,685
30% 30.1% 275,780 276,791
20% 19.9% 183,854 182,540
10% 9.9% 91,927 91,048
Active Idle   0 0
