Hitachi, Ltd. HA8000/TS10 (DL) SPECpower_ssj2008 = 3,552 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jul 28, 2011
Hardware Availability: Jun-2011 Software Availability: Feb-2011 Publication: Aug 24, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.3% 411,743 98.4 4,183
90% 90.3% 374,215 91.4 4,094
80% 79.6% 330,048 82.1 4,022
70% 70.6% 292,781 73.8 3,970
60% 59.9% 248,367 61.3 4,049
50% 50.1% 207,510 53.9 3,852
40% 39.9% 165,607 46.5 3,562
30% 29.9% 123,797 41.7 2,969
20% 20.0% 82,983 36.9 2,247
10% 10.0% 41,487 31.3 1,325
Active Idle 0 24.2 0
∑ssj_ops / ∑power = 3,552

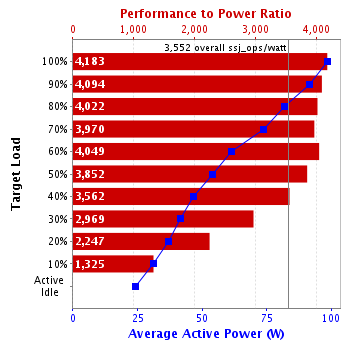

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/TS10 (DL)
Form Factor: Tower
CPU Name: Intel Xeon E3-1280
CPU Characteristics: Quad Core, 3.50GHz, 8MB L3 Cache
CPU Frequency (MHz): 3500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PC3-10600E ECC CL9; slots DIMM_#2 and DIMM_#4 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: DELTA DPS-400AB-14A
Disk Drive: 1 x 250GB SATA (Hitachi P/N:GQ-SUH72505B)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom BCM5718 Dual-Port Gigabit Ethernet Controller (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard SP1
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1950m -Xmx1950m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start/affinity [F,F0]
JVM Instances: 2
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: 1.04
Management Firmware Version: 06.14
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS110 (AH)
CPU Description: Intel Pentium E5200
Memory amount (GB): 4
Software
Operating System (OS): Microsoft Windows Server 2008 Enterprise 32-bit SP2
JVM Vendor: Oracle Corporation
JVM Version: Java(TM) SE Runtime Environment (build 1.6.0_17-b04)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: S2011-06-52513
Date of Calibration: 28-Jun-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 98.4 23.6
90% 91.4 23.6
80% 82.1 23.6
70% 73.8 23.6
60% 61.3 23.6
50% 53.9 23.6
40% 46.5 23.6
30% 41.7 23.6
20% 36.9 23.6
10% 31.3 23.6
Active Idle 24.2 23.7
Line Standard Minimum Temperature (°C) Elevation (m)
100V / 50 Hz / 1 phase / 2 wires 23.6 105
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     415,315
Calibration 2     416,370
Calibration 3     412,824
ssj_ops@calibrated=414,597
100% 99.3% 414,597 411,743
90% 90.3% 373,137 374,215
80% 79.6% 331,678 330,048
70% 70.6% 290,218 292,781
60% 59.9% 248,758 248,367
50% 50.1% 207,299 207,510
40% 39.9% 165,839 165,607
30% 29.9% 124,379 123,797
20% 20.0% 82,919 82,983
10% 10.0% 41,460 41,487
Active Idle   0 0
Graph of results
