Dell Inc. PowerEdge M710HD ssj_ops@100% = 944,940
ssj_ops@100% per JVM = 472,470
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 30, 2011
Hardware Availability: Feb-2011 Software Availability: Apr-2011 Publication: Sep 21, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     952,707
Calibration 2     943,715
Calibration 3     950,722
ssj_ops@calibrated=947,219
100% 99.8% 947,219 944,940
90% 89.5% 852,497 847,341
80% 80.1% 757,775 758,712
70% 70.3% 663,053 665,553
60% 59.7% 568,331 565,906
50% 50.1% 473,609 474,559
40% 40.2% 378,887 380,508
30% 29.9% 284,166 283,605
20% 19.9% 189,444 188,703
10% 9.9% 94,722 93,740
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M710HD
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M710HD
Form Factor: Blade
CPU Name: Intel Xeon X5675 (3.06 GHz)
CPU Characteristics: 6 Core, 3.06 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 3060
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1, A2, A3, B1, B2, B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB 2.5" SSD SATA (Dell PN X2N7H)
Disk Controller: PERC H200 Modular
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port 1 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25
JVM Command-line Options: -server -Xmx6g -Xms6g -Xmn5g -XX:SurvivorRatio=55 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [FFF, FFF000]
JVM Instances: 2
JVM Initial Heap (MB): 6144
JVM Maximum Heap (MB): 6144
JVM Address Bits: 64
Boot Firmware Version: 3.0.1
Management Firmware Version: iDRAC 3.21 build 48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Disabled Adjacent Cache Line Prefetch in BIOS.
  • Disabled Hardware Prefetcher in BIOS.
  • Disabled DCU Streamer Prefetcher in BIOS.
  • Disabled Data Reuse in BIOS
  • Disabled Turbo Mode in BIOS
  • Memory Speed set to 1066MHz in BIOS.
  • DAPC Mode Enabled.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M710HD-2.001 475,199
    M710HD-2.002 469,741
    ssj_ops@100% 944,940
    ssj_ops@100% per JVM 472,470

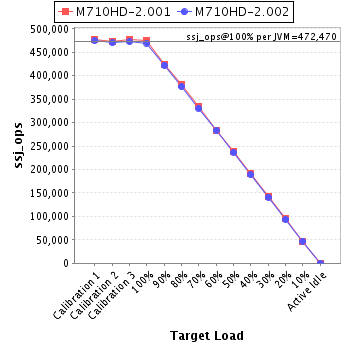

    Graph of per-instance results
    JVM 'M710HD-2.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     477,765
    Calibration 2     472,830
    Calibration 3     478,162
    ssj_ops@calibrated=475,496
    100% 99.9% 475,496 475,199
    90% 89.3% 427,946 424,770
    80% 80.4% 380,397 382,156
    70% 70.4% 332,847 334,896
    60% 59.4% 285,297 282,669
    50% 50.0% 237,748 237,619
    40% 40.2% 190,198 191,322
    30% 29.9% 142,649 142,362
    20% 20.0% 95,099 94,960
    10% 9.8% 47,550 46,823
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M710HD-2.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     474,941
    Calibration 2     470,885
    Calibration 3     472,560
    ssj_ops@calibrated=471,723
    100% 99.6% 471,723 469,741
    90% 89.6% 424,550 422,572
    80% 79.8% 377,378 376,556
    70% 70.1% 330,206 330,657
    60% 60.0% 283,034 283,237
    50% 50.2% 235,861 236,940
    40% 40.1% 188,689 189,186
    30% 29.9% 141,517 141,243
    20% 19.9% 94,345 93,743
    10% 9.9% 47,172 46,917
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
