Dell Inc. PowerEdge M710HD ssj_ops@100% = 948,224
ssj_ops@100% per JVM = 474,112
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 30, 2011
Hardware Availability: Feb-2011 Software Availability: Apr-2011 Publication: Sep 21, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     956,458
Calibration 2     960,369
Calibration 3     961,270
ssj_ops@calibrated=960,819
100% 98.7% 960,819 948,224
90% 89.9% 864,737 863,547
80% 80.1% 768,656 769,142
70% 70.4% 672,574 676,091
60% 59.9% 576,492 575,680
50% 50.2% 480,410 482,297
40% 40.1% 384,328 385,294
30% 30.0% 288,246 288,496
20% 20.1% 192,164 193,434
10% 10.0% 96,082 96,079
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M710HD
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M710HD
Form Factor: Blade
CPU Name: Intel Xeon X5675 (3.06 GHz)
CPU Characteristics: 6 Core, 3.06 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 3060
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1, A2, A3, B1, B2, B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB 2.5" SSD SATA (Dell PN X2N7H)
Disk Controller: PERC H200 Modular
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port 1 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25
JVM Command-line Options: -server -Xmx6g -Xms6g -Xmn5g -XX:SurvivorRatio=55 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [FFF, FFF000]
JVM Instances: 2
JVM Initial Heap (MB): 6144
JVM Maximum Heap (MB): 6144
JVM Address Bits: 64
Boot Firmware Version: 3.0.1
Management Firmware Version: iDRAC 3.21 build 48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Disabled Adjacent Cache Line Prefetch in BIOS.
  • Disabled Hardware Prefetcher in BIOS.
  • Disabled DCU Streamer Prefetcher in BIOS.
  • Disabled Data Reuse in BIOS
  • Disabled Turbo Mode in BIOS
  • Memory Speed set to 1066MHz in BIOS.
  • DAPC Mode Enabled.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M710HD-3.001 472,833
    M710HD-3.002 475,392
    ssj_ops@100% 948,224
    ssj_ops@100% per JVM 474,112

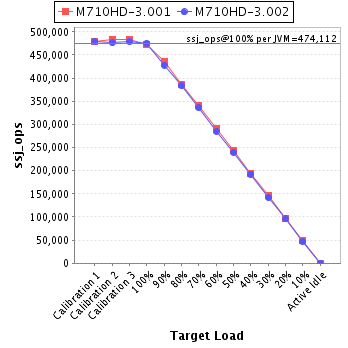

    Graph of per-instance results
    JVM 'M710HD-3.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     478,331
    Calibration 2     484,144
    Calibration 3     483,238
    ssj_ops@calibrated=483,691
    100% 97.8% 483,691 472,833
    90% 90.0% 435,322 435,464
    80% 79.8% 386,953 385,983
    70% 70.3% 338,584 339,990
    60% 60.1% 290,215 290,656
    50% 50.2% 241,846 242,692
    40% 40.1% 193,476 193,778
    30% 30.2% 145,107 146,286
    20% 20.2% 96,738 97,741
    10% 10.2% 48,369 49,096
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M710HD-3.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     478,127
    Calibration 2     476,224
    Calibration 3     478,032
    ssj_ops@calibrated=477,128
    100% 99.6% 477,128 475,392
    90% 89.7% 429,416 428,083
    80% 80.3% 381,703 383,159
    70% 70.4% 333,990 336,101
    60% 59.7% 286,277 285,024
    50% 50.2% 238,564 239,605
    40% 40.1% 190,851 191,516
    30% 29.8% 143,139 142,210
    20% 20.1% 95,426 95,692
    10% 9.8% 47,713 46,983
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
