Dell Inc. PowerEdge M710HD ssj_ops@100% = 951,458
ssj_ops@100% per JVM = 475,729
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 30, 2011
Hardware Availability: Feb-2011 Software Availability: Apr-2011 Publication: Sep 21, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     956,861
Calibration 2     958,402
Calibration 3     958,046
ssj_ops@calibrated=958,224
100% 99.3% 958,224 951,458
90% 89.9% 862,402 861,324
80% 80.1% 766,579 767,188
70% 70.2% 670,757 672,428
60% 60.2% 574,935 576,508
50% 50.1% 479,112 479,598
40% 39.8% 383,290 381,597
30% 30.0% 287,467 287,653
20% 20.0% 191,645 191,362
10% 10.0% 95,822 95,885
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M710HD
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M710HD
Form Factor: Blade
CPU Name: Intel Xeon X5675 (3.06 GHz)
CPU Characteristics: 6 Core, 3.06 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 3060
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1, A2, A3, B1, B2, B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB 2.5" SSD SATA (Dell PN X2N7H)
Disk Controller: PERC H200 Modular
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port 1 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25
JVM Command-line Options: -server -Xmx6g -Xms6g -Xmn5g -XX:SurvivorRatio=55 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [FFF, FFF000]
JVM Instances: 2
JVM Initial Heap (MB): 6144
JVM Maximum Heap (MB): 6144
JVM Address Bits: 64
Boot Firmware Version: 3.0.1
Management Firmware Version: iDRAC 3.21 build 48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Disabled Adjacent Cache Line Prefetch in BIOS.
  • Disabled Hardware Prefetcher in BIOS.
  • Disabled DCU Streamer Prefetcher in BIOS.
  • Disabled Data Reuse in BIOS
  • Disabled Turbo Mode in BIOS
  • Memory Speed set to 1066MHz in BIOS.
  • DAPC Mode Enabled.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    m710hd-10.001 476,703
    m710hd-10.002 474,755
    ssj_ops@100% 951,458
    ssj_ops@100% per JVM 475,729

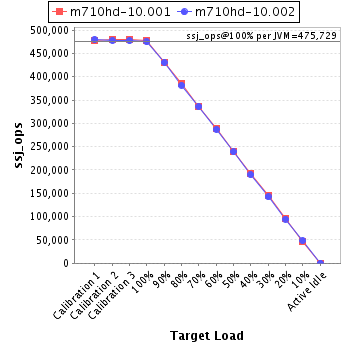

    Graph of per-instance results
    JVM 'm710hd-10.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     477,000
    Calibration 2     480,501
    Calibration 3     480,545
    ssj_ops@calibrated=480,523
    100% 99.2% 480,523 476,703
    90% 89.6% 432,471 430,549
    80% 80.2% 384,418 385,373
    70% 70.1% 336,366 336,819
    60% 60.2% 288,314 289,336
    50% 50.1% 240,261 240,684
    40% 39.9% 192,209 191,753
    30% 30.2% 144,157 145,330
    20% 20.1% 96,105 96,487
    10% 9.9% 48,052 47,712
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'm710hd-10.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     479,861
    Calibration 2     477,902
    Calibration 3     477,501
    ssj_ops@calibrated=477,701
    100% 99.4% 477,701 474,755
    90% 90.2% 429,931 430,775
    80% 79.9% 382,161 381,815
    70% 70.3% 334,391 335,609
    60% 60.1% 286,621 287,172
    50% 50.0% 238,851 238,913
    40% 39.7% 191,081 189,843
    30% 29.8% 143,310 142,323
    20% 19.9% 95,540 94,876
    10% 10.1% 47,770 48,173
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
