Dell Inc. PowerEdge M710HD ssj_ops@100% = 951,625
ssj_ops@100% per JVM = 475,813
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 30, 2011
Hardware Availability: Feb-2011 Software Availability: Apr-2011 Publication: Sep 21, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     955,638
Calibration 2     955,981
Calibration 3     954,761
ssj_ops@calibrated=955,371
100% 99.6% 955,371 951,625
90% 89.9% 859,834 859,275
80% 80.1% 764,297 765,711
70% 70.0% 668,760 668,336
60% 60.0% 573,223 573,456
50% 49.9% 477,686 476,560
40% 40.0% 382,149 381,865
30% 30.0% 286,611 286,934
20% 20.0% 191,074 191,218
10% 10.0% 95,537 95,929
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M710HD
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M710HD
Form Factor: Blade
CPU Name: Intel Xeon X5675 (3.06 GHz)
CPU Characteristics: 6 Core, 3.06 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 3060
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1, A2, A3, B1, B2, B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB 2.5" SSD SATA (Dell PN X2N7H)
Disk Controller: PERC H200 Modular
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port 1 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25
JVM Command-line Options: -server -Xmx6g -Xms6g -Xmn5g -XX:SurvivorRatio=55 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [FFF, FFF000]
JVM Instances: 2
JVM Initial Heap (MB): 6144
JVM Maximum Heap (MB): 6144
JVM Address Bits: 64
Boot Firmware Version: 3.0.1
Management Firmware Version: iDRAC 3.21 build 48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Disabled Adjacent Cache Line Prefetch in BIOS.
  • Disabled Hardware Prefetcher in BIOS.
  • Disabled DCU Streamer Prefetcher in BIOS.
  • Disabled Data Reuse in BIOS
  • Disabled Turbo Mode in BIOS
  • Memory Speed set to 1066MHz in BIOS.
  • DAPC Mode Enabled.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    m710hd-13.001 475,070
    m710hd-13.002 476,555
    ssj_ops@100% 951,625
    ssj_ops@100% per JVM 475,813

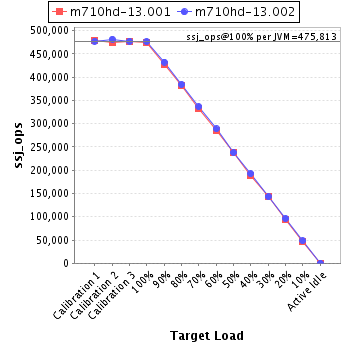

    Graph of per-instance results
    JVM 'm710hd-13.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     478,120
    Calibration 2     474,233
    Calibration 3     477,260
    ssj_ops@calibrated=475,746
    100% 99.9% 475,746 475,070
    90% 89.7% 428,172 426,676
    80% 80.1% 380,597 381,135
    70% 69.8% 333,023 331,925
    60% 59.8% 285,448 284,603
    50% 50.1% 237,873 238,210
    40% 39.8% 190,299 189,322
    30% 30.3% 142,724 143,953
    20% 19.9% 95,149 94,894
    10% 10.0% 47,575 47,798
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'm710hd-13.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     477,518
    Calibration 2     481,749
    Calibration 3     477,501
    ssj_ops@calibrated=479,625
    100% 99.4% 479,625 476,555
    90% 90.2% 431,662 432,598
    80% 80.2% 383,700 384,576
    70% 70.1% 335,737 336,411
    60% 60.2% 287,775 288,853
    50% 49.7% 239,812 238,350
    40% 40.1% 191,850 192,544
    30% 29.8% 143,887 142,981
    20% 20.1% 95,925 96,324
    10% 10.0% 47,962 48,131
    Active Idle   0 0

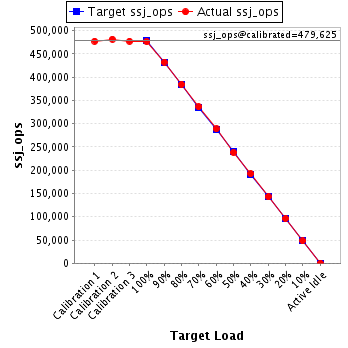

    Graph of results
    See the JVM Instance Performance Report for additional details.
