Hewlett-Packard Company ProLiant SL170s G6 (3.06 GHz, Intel Xeon X5675 processor) SPECpower_ssj2008 = 3,322 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jun 8, 2011
Hardware Availability: Feb-2011 Software Availability: May-2011 Publication: Oct 4, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 7,299,642 1,761 4,144
90% 90.0% 6,598,666 1,625 4,061
80% 80.1% 5,868,894 1,481 3,963
70% 70.0% 5,134,479 1,319 3,891
60% 60.1% 4,403,277 1,174 3,750
50% 50.0% 3,666,333 1,057 3,469
40% 39.9% 2,927,021 960 3,048
30% 30.0% 2,202,527 877 2,513
20% 20.0% 1,464,261 794 1,844
10% 10.0% 733,737 693 1,060
Active Idle 0 389 0
∑ssj_ops / ∑power = 3,322

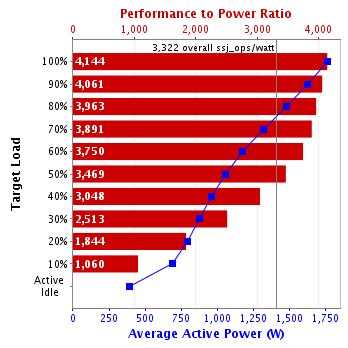

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
8 16 96 192 128 8 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ProLiant SL6500
Form Factor: 2U
Power Supply Quantity and Rating (W): 3 x 750
Power Supply Details: Part Number: 593831-B21
Network Switch: Hewlett-Packard Company ProCurve 3500yl-24G
Network Switch Details: 24 Port Gigabit
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch is a standalone device and is not included in the power measurement.
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 8
Comment: N/A
Hardware per Node
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant SL170s G6 (3.06 GHz, Intel Xeon X5675 processor)
Form Factor: Blade
CPU Name: Intel Xeon X5675
CPU Characteristics: 6 Core, 3.06 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4 GB
Memory Details: 4 GB 2Rx8 PC3L-10600E-9, ECC, slots 1 & 4 are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 120 GB SATA SSD, Part Number: 586587-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Embedded HP NC382i Dual-Port Multifunction Gigabit Server Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (See SUT Notes)
Operating System (OS): Windows Server 2008 x64 Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java SE Runtime Environment (build 1.6.0_25-b06), Java HotSpot 64-Bit Server VM (build 20.0-b11, mixed mode)
JVM Command-line Options: -server -Xmx6g -Xms6g -Xmn5g -XX:SurvivorRatio=65 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=192 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=5500 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [FFF, FFF000]
JVM Instances: 2
JVM Initial Heap (MB): 6144
JVM Maximum Heap (MB): 6144
JVM Address Bits: 64
Boot Firmware Version: O40 4/26/2011
Management Firmware Version: 4.22 2/7/2011
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL360 G5
CPU Description: Intel Xeon E5440
Memory amount (GB): 2
Software
Operating System (OS): Windows Server 2003 x64 Enterprise Edition R2 SP2
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2003 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB47169
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST
Accredited by: HP Metrology
Calibration Label: 705452
Date of Calibration: 7-Apr-2011
PTDaemon Host System: Same as CCS
PTDaemon Host OS: Same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: N/A
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: Same as CCS
PTDaemon Host OS: Same as CCS
Setup Description: N/A
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 1,761 21.2
90% 1,625 21.2
80% 1,481 21.2
70% 1,319 21.2
60% 1,174 21.2
50% 1,057 21.2
40% 960 21.2
30% 877 21.2
20% 794 21.2
10% 693 21.2
Active Idle 389 21.1
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 21.1 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,326,520
Calibration 2     7,343,590
Calibration 3     7,319,451
ssj_ops@calibrated=7,331,521
100% 99.6% 7,331,521 7,299,642
90% 90.0% 6,598,369 6,598,666
80% 80.1% 5,865,216 5,868,894
70% 70.0% 5,132,064 5,134,479
60% 60.1% 4,398,912 4,403,277
50% 50.0% 3,665,760 3,666,333
40% 39.9% 2,932,608 2,927,021
30% 30.0% 2,199,456 2,202,527
20% 20.0% 1,466,304 1,464,261
10% 10.0% 733,152 733,737
Active Idle   0 0
Graph of results
