Huawei Technologies Co., Ltd RH2285 SPECpower_ssj2008 = 3,199 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Oct 19, 2011
Hardware Availability: Mar-2010 Software Availability: Mar-2011 Publication: Nov 2, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 738,788 164 4,499
90% 90.1% 668,198 152 4,383
80% 80.3% 595,701 143 4,177
70% 69.7% 516,689 133 3,890
60% 60.0% 445,017 124 3,586
50% 50.1% 371,736 116 3,208
40% 40.1% 297,433 108 2,749
30% 30.2% 223,780 102 2,199
20% 20.0% 148,428 95.4 1,555
10% 10.1% 74,831 87.0 860
Active Idle 0 51.0 0
∑ssj_ops / ∑power = 3,199

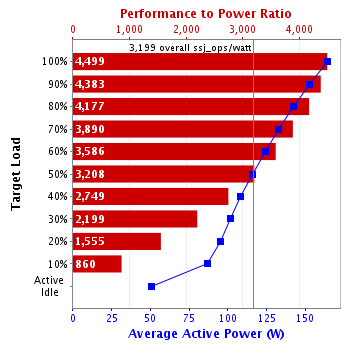

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2285
Form Factor: 2U
CPU Name: Intel Xeon L5640
CPU Characteristics: Six-Core, 2.26GHz, 12MB L3 Cache
CPU Frequency (MHz): 2266
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC RDIMM, slot A1, A2, B1, B2, populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA SA:E64511-309
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port BCM 5709 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Windows Server 2008 R2, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1625m -Xms2000m -Xmx2000m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 2000
JVM Maximum Heap (MB): 2000
JVM Address Bits: 64
Boot Firmware Version: BV28
Management Firmware Version: V026
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere application server V7.0 for Windows on X86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Tecal RH2280 Rack Server
CPU Description: Intel Xeon E5642 2.8 GHz
Memory amount (GB): 4
Software
Operating System (OS): Microsoft Windows Server 2003 SP2
JVM Vendor: Oracle
JVM Version: jrockit-R27.6.0-jre1.6.0_05-ia32
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91F522082
Connectivity: GPIB
Input Connection: Default
Calibration Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: 2GB11003462-0020
Date of Calibration: 4-May-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: none
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 164 22.6
90% 152 22.4
80% 143 22.4
70% 133 22.6
60% 124 23.2
50% 116 23.0
40% 108 22.8
30% 102 22.9
20% 95.4 22.7
10% 87.0 22.5
Active Idle 51.0 22.4
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 22.4 101
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     734,342
Calibration 2     742,103
Calibration 3     740,930
ssj_ops@calibrated=741,517
100% 99.6% 741,517 738,788
90% 90.1% 667,365 668,198
80% 80.3% 593,213 595,701
70% 69.7% 519,062 516,689
60% 60.0% 444,910 445,017
50% 50.1% 370,758 371,736
40% 40.1% 296,607 297,433
30% 30.2% 222,455 223,780
20% 20.0% 148,303 148,428
10% 10.1% 74,152 74,831
Active Idle   0 0

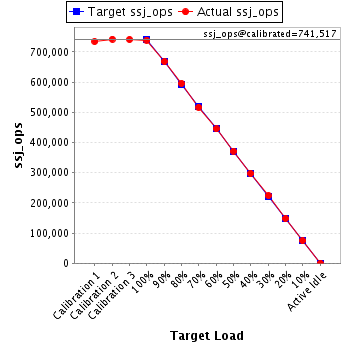

Graph of results
