Hitachi, Ltd. BS2000 Server Blade E57A2 ssj_ops@100% = 1,206,026
ssj_ops@100% per JVM = 120,603
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Oct 19, 2011
Hardware Availability: Jun-2011 Software Availability: Feb-2011 Publication: Nov 9, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,211,277
Calibration 2     1,213,638
Calibration 3     1,214,389
ssj_ops@calibrated=1,214,014
100% 99.3% 1,214,014 1,206,026
90% 90.0% 1,092,612 1,093,106
80% 80.3% 971,211 974,598
70% 70.0% 849,810 849,949
60% 60.0% 728,408 728,034
50% 50.0% 607,007 607,283
40% 39.9% 485,606 484,868
30% 30.1% 364,204 364,840
20% 19.9% 242,803 242,135
10% 10.0% 121,401 121,946
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: BS2000 Server Blade E57A2
Form Factor: Blade
CPU Name: Intel Xeon processor E7-8870
CPU Characteristics: Ten Core, 2.40GHz, 30MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 20 cores, 2 chips, 10 cores/chip
Hardware Threads: 40 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4 GB
Memory Details: 32GB(DDR3 Registered DIMM 4GB x 8) 1067MHz
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 33 GB LUN in RAID1 Raid Group consisting of 2 x 300 GB 15K RPM SAS
Disk Controller: None
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: Hitachi 8Gb 2-port FC adapter in PCIe Expansion Slot
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000]
JVM Instances: 10
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 08-17
Management Firmware Version: 04-60
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
hitachi-5.001 121,940
hitachi-5.002 122,681
hitachi-5.003 119,033
hitachi-5.004 121,002
hitachi-5.005 119,078
hitachi-5.006 122,946
hitachi-5.007 118,557
hitachi-5.008 120,272
hitachi-5.009 119,991
hitachi-5.010 120,525
ssj_ops@100% 1,206,026
ssj_ops@100% per JVM 120,603

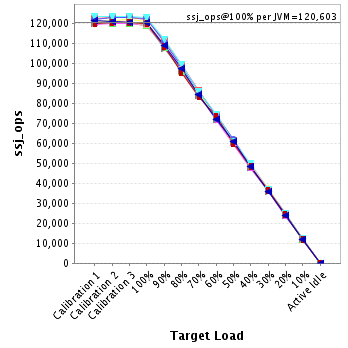

Graph of per-instance results
JVM 'hitachi-5.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,540
Calibration 2     123,075
Calibration 3     123,090
ssj_ops@calibrated=123,083
100% 99.1% 123,083 121,940
90% 90.7% 110,774 111,579
80% 80.8% 98,466 99,395
70% 70.3% 86,158 86,516
60% 59.9% 73,850 73,765
50% 49.9% 61,541 61,457
40% 39.0% 49,233 48,000
30% 29.6% 36,925 36,460
20% 19.7% 24,617 24,242
10% 10.0% 12,308 12,352
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-5.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,098
Calibration 2     122,821
Calibration 3     122,869
ssj_ops@calibrated=122,845
100% 99.9% 122,845 122,681
90% 90.2% 110,560 110,763
80% 80.1% 98,276 98,388
70% 69.9% 85,991 85,867
60% 60.3% 73,707 74,106
50% 50.3% 61,422 61,746
40% 39.8% 49,138 48,946
30% 30.1% 36,853 36,960
20% 20.2% 24,569 24,837
10% 9.9% 12,284 12,211
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-5.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,377
Calibration 2     119,905
Calibration 3     120,107
ssj_ops@calibrated=120,006
100% 99.2% 120,006 119,033
90% 90.2% 108,005 108,195
80% 80.2% 96,005 96,230
70% 71.4% 84,004 85,720
60% 60.1% 72,004 72,104
50% 50.4% 60,003 60,525
40% 40.1% 48,002 48,152
30% 30.1% 36,002 36,178
20% 20.1% 24,001 24,148
10% 10.1% 12,001 12,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-5.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,947
Calibration 2     121,482
Calibration 3     121,819
ssj_ops@calibrated=121,651
100% 99.5% 121,651 121,002
90% 88.9% 109,486 108,118
80% 79.5% 97,320 96,652
70% 70.1% 85,155 85,285
60% 59.3% 72,990 72,179
50% 50.3% 60,825 61,147
40% 39.9% 48,660 48,506
30% 30.8% 36,495 37,418
20% 20.0% 24,330 24,335
10% 10.1% 12,165 12,338
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-5.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,583
Calibration 2     119,959
Calibration 3     120,091
ssj_ops@calibrated=120,025
100% 99.2% 120,025 119,078
90% 90.1% 108,022 108,183
80% 80.8% 96,020 97,038
70% 70.4% 84,017 84,506
60% 59.5% 72,015 71,463
50% 49.7% 60,012 59,678
40% 39.4% 48,010 47,246
30% 30.0% 36,007 36,032
20% 19.3% 24,005 23,222
10% 10.3% 12,002 12,310
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-5.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,433
Calibration 2     123,371
Calibration 3     123,607
ssj_ops@calibrated=123,489
100% 99.6% 123,489 122,946
90% 90.9% 111,140 112,251
80% 80.7% 98,791 99,690
70% 69.7% 86,442 86,103
60% 60.1% 74,093 74,249
50% 49.5% 61,745 61,162
40% 40.4% 49,396 49,901
30% 29.8% 37,047 36,807
20% 20.1% 24,698 24,852
10% 10.0% 12,349 12,293
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-5.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,563
Calibration 2     120,898
Calibration 3     120,946
ssj_ops@calibrated=120,922
100% 98.0% 120,922 118,557
90% 90.1% 108,830 108,937
80% 81.0% 96,737 97,968
70% 69.7% 84,645 84,255
60% 60.1% 72,553 72,620
50% 49.5% 60,461 59,818
40% 40.7% 48,369 49,230
30% 30.5% 36,277 36,936
20% 20.0% 24,184 24,167
10% 9.9% 12,092 12,016
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-5.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,237
Calibration 2     120,780
Calibration 3     120,491
ssj_ops@calibrated=120,636
100% 99.7% 120,636 120,272
90% 89.1% 108,572 107,525
80% 79.9% 96,508 96,375
70% 69.5% 84,445 83,882
60% 59.8% 72,381 72,148
50% 50.6% 60,318 61,064
40% 39.9% 48,254 48,118
30% 29.9% 36,191 36,120
20% 19.9% 24,127 24,040
10% 10.3% 12,064 12,416
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-5.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,132
Calibration 2     120,500
Calibration 3     120,624
ssj_ops@calibrated=120,562
100% 99.5% 120,562 119,991
90% 90.0% 108,506 108,464
80% 79.2% 96,450 95,497
70% 69.2% 84,393 83,396
60% 60.8% 72,337 73,272
50% 49.7% 60,281 59,879
40% 40.1% 48,225 48,342
30% 30.1% 36,169 36,248
20% 20.3% 24,112 24,441
10% 9.8% 12,056 11,855
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hitachi-5.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,367
Calibration 2     120,847
Calibration 3     120,746
ssj_ops@calibrated=120,796
100% 99.8% 120,796 120,525
90% 90.3% 108,717 109,090
80% 80.6% 96,637 97,365
70% 69.9% 84,558 84,417
60% 59.7% 72,478 72,128
50% 50.3% 60,398 60,806
40% 40.1% 48,319 48,427
30% 29.5% 36,239 35,679
20% 19.7% 24,159 23,852
10% 10.0% 12,080 12,055
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
