Supermicro Computer Inc. 1022G-NTF SPECpower_ssj2008 = 2,618 overall ssj_ops/watt
Test Sponsor: Advanced Micro Devices SPEC License #: 49 Test Method: Single Node
Tested By: Advanced Micro Devices Test Location: Austin, TX, USA Test Date: Sep 23, 2011
Hardware Availability: Nov-2011 Software Availability: Mar-2011 Publication: Nov 16, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 209 20.1
Calibration 2 212 20.2
Calibration 3 213 20.3
100% 213 20.4
90% 203 20.3
80% 193 20.2
70% 182 20.2
60% 169 20.2
50% 156 20.2
40% 143 20.2
30% 130 20.2
20% 115 20.2
10% 99.0 20.2
Active Idle 70.3 20.2

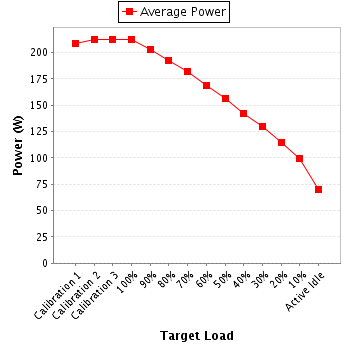

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K308578
Connectivity: USB-to-Serial
Input Connection: Default
Metrology Institute: NIST
Accredited by: Yokogawa Corporation of America
Calibration Label: 10-1827
Date of Calibration: 28-Sep-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
Sabrent SBT-USC1M USB-to-Serial converter was used to connect power analyzer to CCS system.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 1.03 2.0 0.963 209 0.4%
Calibration 2 211 300.0 1.04 2.0 0.964 212 0.4%
Calibration 3 211 300.0 1.04 2.0 0.964 213 0.4%
100% 211 300.0 1.04 2.0 0.964 213 0.4%
90% 212 300.0 0.997 2.0 0.963 203 0.5%
80% 212 300.0 0.947 2.0 0.962 193 0.5%
70% 212 300.0 0.895 2.0 0.959 182 0.5%
60% 212 300.0 0.834 2.0 0.956 169 0.5%
50% 212 300.0 0.775 1.0 0.951 156 0.4%
40% 212 300.0 0.712 1.0 0.945 143 0.4%
30% 212 300.0 0.652 1.0 0.938 130 0.4%
20% 212 300.0 0.583 1.0 0.930 115 0.4%
10% 212 300.0 0.509 1.0 0.918 99.0 0.5%
Active Idle 212 300.0 0.376 1.0 0.882 70.3 0.6%
Power details for pwr1
