SGI Rackable C2112-4G10 ssj_ops@100% = 1,191,138
ssj_ops@100% per JVM = 74,446
Test Sponsor: SGI SPEC License #: 4 Test Method: Multi Node
Tested By: SGI Test Location: Fremont, CA, USA Test Date: Feb 25, 2012
Hardware Availability: Apr-2012 Software Availability: Apr-2012 Publication: Mar 21, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,158,652
Calibration 2     1,197,965
Calibration 3     1,199,573
ssj_ops@calibrated=1,198,769
100% 99.4% 1,198,769 1,191,138
90% 89.9% 1,078,892 1,077,566
80% 79.8% 959,015 956,899
70% 70.1% 839,138 840,443
60% 60.0% 719,261 718,960
50% 49.8% 599,384 597,516
40% 40.0% 479,507 480,034
30% 30.0% 359,631 359,387
20% 20.1% 239,754 240,534
10% 10.1% 119,877 120,537
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Rackable C2112-4G10
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: SGI
Model: Rackable C2112-4G10
Form Factor: Blade
CPU Name: AMD Opteron 6276
CPU Characteristics: 16 cores, 2.30 GHz (AMD Turbo CORE technology upto 3.20 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 32 cores, 2 chips, 16 cores/chip
Hardware Threads: 32 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4096 MB
Memory Details: 4 GB 2Rx8 PC3L-10600R; slots 1A, 2A, 3A, and 4A populated for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SSD SATA (SGI PN LSX-SSD25-120G-I)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Datacenter Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1400m -Xms1600m -Xmx1600m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [0x3,0xC,0x30,0xc0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000,0xC0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: 2.0 dt 10/03/11
Management Firmware Version: none
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere Application Server Community Edition V2.1.1.4 for windows on X86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
ramsey4.001 73,784
ramsey4.002 74,892
ramsey4.003 74,080
ramsey4.004 74,443
ramsey4.005 74,912
ramsey4.006 74,372
ramsey4.007 73,132
ramsey4.008 73,998
ramsey4.009 74,820
ramsey4.010 74,773
ramsey4.011 74,304
ramsey4.012 74,603
ramsey4.013 74,427
ramsey4.014 74,629
ramsey4.015 75,311
ramsey4.016 74,659
ssj_ops@100% 1,191,138
ssj_ops@100% per JVM 74,446

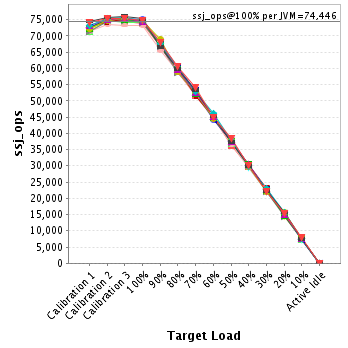

Graph of per-instance results
JVM 'ramsey4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,884
Calibration 2     74,318
Calibration 3     74,297
ssj_ops@calibrated=74,308
100% 99.3% 74,308 73,784
90% 89.7% 66,877 66,683
80% 79.4% 59,446 59,028
70% 69.5% 52,015 51,636
60% 60.5% 44,585 44,919
50% 48.9% 37,154 36,333
40% 39.9% 29,723 29,633
30% 30.8% 22,292 22,890
20% 20.2% 14,862 15,000
10% 10.4% 7,431 7,735
Active Idle   0 0
Graph of results
JVM 'ramsey4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,492
Calibration 2     75,191
Calibration 3     75,265
ssj_ops@calibrated=75,228
100% 99.6% 75,228 74,892
90% 89.7% 67,705 67,466
80% 79.5% 60,182 59,831
70% 69.4% 52,660 52,212
60% 58.7% 45,137 44,171
50% 50.5% 37,614 38,006
40% 39.9% 30,091 30,016
30% 30.0% 22,568 22,591
20% 19.7% 15,046 14,787
10% 9.9% 7,523 7,470
Active Idle   0 0
Graph of results
JVM 'ramsey4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,252
Calibration 2     74,814
Calibration 3     74,208
ssj_ops@calibrated=74,511
100% 99.4% 74,511 74,080
90% 90.9% 67,060 67,759
80% 80.4% 59,609 59,933
70% 70.5% 52,158 52,559
60% 60.7% 44,707 45,217
50% 49.4% 37,256 36,773
40% 40.5% 29,804 30,192
30% 30.3% 22,353 22,610
20% 19.9% 14,902 14,817
10% 9.8% 7,451 7,287
Active Idle   0 0
Graph of results
JVM 'ramsey4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,625
Calibration 2     75,056
Calibration 3     75,287
ssj_ops@calibrated=75,171
100% 99.0% 75,171 74,443
90% 89.9% 67,654 67,545
80% 80.1% 60,137 60,223
70% 70.1% 52,620 52,715
60% 59.4% 45,103 44,651
50% 49.2% 37,586 36,987
40% 40.0% 30,069 30,053
30% 30.1% 22,551 22,638
20% 19.3% 15,034 14,545
10% 10.0% 7,517 7,529
Active Idle   0 0
Graph of results
JVM 'ramsey4.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,655
Calibration 2     74,998
Calibration 3     75,047
ssj_ops@calibrated=75,023
100% 99.9% 75,023 74,912
90% 90.4% 67,520 67,830
80% 80.4% 60,018 60,340
70% 70.3% 52,516 52,708
60% 60.2% 45,014 45,150
50% 50.0% 37,511 37,534
40% 39.8% 30,009 29,844
30% 29.6% 22,507 22,206
20% 20.1% 15,005 15,095
10% 10.0% 7,502 7,477
Active Idle   0 0
Graph of results
JVM 'ramsey4.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,146
Calibration 2     74,926
Calibration 3     74,674
ssj_ops@calibrated=74,800
100% 99.4% 74,800 74,372
90% 90.4% 67,320 67,600
80% 80.9% 59,840 60,493
70% 69.5% 52,360 51,983
60% 60.9% 44,880 45,552
50% 50.2% 37,400 37,523
40% 39.5% 29,920 29,556
30% 29.5% 22,440 22,093
20% 19.8% 14,960 14,774
10% 9.8% 7,480 7,337
Active Idle   0 0
Graph of results
JVM 'ramsey4.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,317
Calibration 2     73,469
Calibration 3     73,242
ssj_ops@calibrated=73,356
100% 99.7% 73,356 73,132
90% 89.1% 66,020 65,350
80% 80.5% 58,685 59,035
70% 71.0% 51,349 52,055
60% 60.8% 44,013 44,581
50% 49.8% 36,678 36,524
40% 40.1% 29,342 29,433
30% 30.1% 22,007 22,070
20% 20.2% 14,671 14,820
10% 9.9% 7,336 7,237
Active Idle   0 0
Graph of results
JVM 'ramsey4.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,434
Calibration 2     74,376
Calibration 3     74,650
ssj_ops@calibrated=74,513
100% 99.3% 74,513 73,998
90% 89.6% 67,062 66,791
80% 78.7% 59,610 58,626
70% 70.3% 52,159 52,414
60% 60.2% 44,708 44,854
50% 49.7% 37,257 37,029
40% 40.2% 29,805 29,941
30% 29.8% 22,354 22,223
20% 19.5% 14,903 14,535
10% 10.1% 7,451 7,512
Active Idle   0 0
Graph of results
JVM 'ramsey4.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,719
Calibration 2     74,489
Calibration 3     75,037
ssj_ops@calibrated=74,763
100% 100.1% 74,763 74,820
90% 89.9% 67,287 67,248
80% 80.2% 59,810 59,933
70% 69.1% 52,334 51,663
60% 60.0% 44,858 44,824
50% 50.0% 37,381 37,397
40% 40.6% 29,905 30,365
30% 30.7% 22,429 22,949
20% 19.9% 14,953 14,854
10% 10.3% 7,476 7,700
Active Idle   0 0
Graph of results
JVM 'ramsey4.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,712
Calibration 2     75,074
Calibration 3     75,192
ssj_ops@calibrated=75,133
100% 99.5% 75,133 74,773
90% 89.9% 67,620 67,537
80% 80.2% 60,106 60,256
70% 70.8% 52,593 53,216
60% 58.8% 45,080 44,143
50% 49.8% 37,566 37,413
40% 40.1% 30,053 30,101
30% 30.0% 22,540 22,565
20% 20.6% 15,027 15,443
10% 9.9% 7,513 7,433
Active Idle   0 0
Graph of results
JVM 'ramsey4.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,146
Calibration 2     75,161
Calibration 3     74,908
ssj_ops@calibrated=75,035
100% 99.0% 75,035 74,304
90% 89.5% 67,531 67,119
80% 79.5% 60,028 59,624
70% 69.7% 52,524 52,315
60% 59.6% 45,021 44,747
50% 49.9% 37,517 37,477
40% 40.7% 30,014 30,508
30% 29.7% 22,510 22,293
20% 19.5% 15,007 14,616
10% 10.0% 7,503 7,520
Active Idle   0 0
Graph of results
JVM 'ramsey4.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,240
Calibration 2     74,872
Calibration 3     75,360
ssj_ops@calibrated=75,116
100% 99.3% 75,116 74,603
90% 91.7% 67,604 68,850
80% 78.7% 60,093 59,128
70% 69.8% 52,581 52,425
60% 59.4% 45,070 44,597
50% 50.1% 37,558 37,647
40% 39.7% 30,046 29,833
30% 29.6% 22,535 22,230
20% 20.7% 15,023 15,543
10% 10.2% 7,512 7,650
Active Idle   0 0
Graph of results
JVM 'ramsey4.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,251
Calibration 2     74,948
Calibration 3     75,359
ssj_ops@calibrated=75,154
100% 99.0% 75,154 74,427
90% 90.1% 67,639 67,712
80% 79.6% 60,123 59,795
70% 69.8% 52,608 52,479
60% 60.1% 45,092 45,133
50% 49.7% 37,577 37,371
40% 40.6% 30,062 30,521
30% 30.1% 22,546 22,597
20% 20.1% 15,031 15,135
10% 10.2% 7,515 7,689
Active Idle   0 0

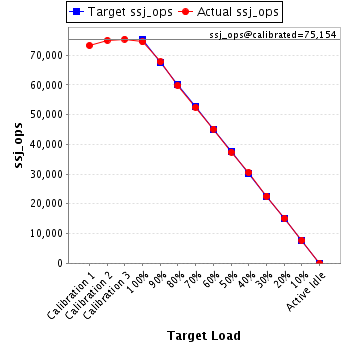

Graph of results
JVM 'ramsey4.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,256
Calibration 2     75,324
Calibration 3     75,703
ssj_ops@calibrated=75,513
100% 98.8% 75,513 74,629
90% 89.5% 67,962 67,559
80% 79.6% 60,411 60,139
70% 70.0% 52,859 52,840
60% 61.2% 45,308 46,181
50% 50.1% 37,757 37,819
40% 39.6% 30,205 29,868
30% 30.5% 22,654 23,013
20% 20.7% 15,103 15,620
10% 9.9% 7,551 7,500
Active Idle   0 0
Graph of results
JVM 'ramsey4.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,441
Calibration 2     75,710
Calibration 3     76,006
ssj_ops@calibrated=75,858
100% 99.3% 75,858 75,311
90% 87.6% 68,272 66,440
80% 79.0% 60,686 59,916
70% 70.2% 53,100 53,230
60% 59.8% 45,515 45,328
50% 49.2% 37,929 37,313
40% 39.6% 30,343 30,052
30% 29.4% 22,757 22,290
20% 20.7% 15,172 15,703
10% 10.0% 7,586 7,604
Active Idle   0 0

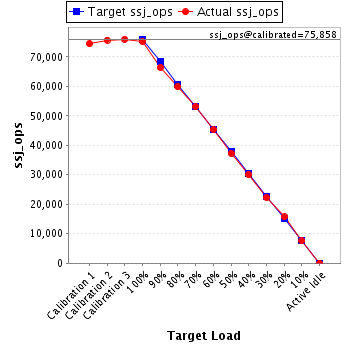

Graph of results
JVM 'ramsey4.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,085
Calibration 2     75,238
Calibration 3     75,337
ssj_ops@calibrated=75,287
100% 99.2% 75,287 74,659
90% 90.4% 67,759 68,076
80% 80.5% 60,230 60,599
70% 71.7% 52,701 53,992
60% 59.7% 45,172 44,912
50% 51.0% 37,644 38,369
40% 40.0% 30,115 30,117
30% 29.4% 22,586 22,130
20% 20.3% 15,057 15,249
10% 10.4% 7,529 7,858
Active Idle   0 0

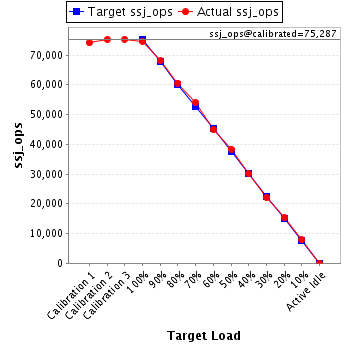

Graph of results
