Huawei Technologies Co., Ltd XH621 V2 | ssj_ops@100% = 1,926,420 ssj_ops@100% per Host = 963,210 ssj_ops@100% per JVM = 120,401 |
||||
Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Multi Node |
Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Mar 6, 2012 |
Hardware Availability: | Mar-2012 | Software Availability: | Mar-2012 | Publication: | Mar 28, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,912,849 | ||
Calibration 2 | 1,929,192 | ||
Calibration 3 | 1,932,310 | ||
ssj_ops@calibrated=1,930,751 | |||
100% | 99.8% | 1,930,751 | 1,926,420 |
90% | 90.1% | 1,737,676 | 1,739,474 |
80% | 79.8% | 1,544,601 | 1,540,800 |
70% | 70.1% | 1,351,526 | 1,352,581 |
60% | 60.1% | 1,158,451 | 1,160,817 |
50% | 49.9% | 965,376 | 963,706 |
40% | 40.1% | 772,300 | 774,729 |
30% | 29.9% | 579,225 | 576,635 |
20% | 20.0% | 386,150 | 386,183 |
10% | 10.0% | 193,075 | 192,890 |
Active Idle | 0 | 0 |
# of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
---|---|---|---|---|---|---|
2 | 4 | 32 | 64 | 64.0 | 2 | 16 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 2 |
Comment: | None |
Software per Node | |
---|---|
Power Management: | Power Saver enabled in OS |
Operating System (OS): | Windows Server 2008 R2, Enterprise Edition |
OS Version: | R2 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1706m -Xms2048m -Xmx2048m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
JVM Affinity: | start /affinity [f,f0,f00,f000,f0000,f00000,f000000,f0000000] |
JVM Instances: | 8 |
JVM Initial Heap (MB): | 2048 |
JVM Maximum Heap (MB): | 2048 |
JVM Address Bits: | 64 |
Boot Firmware Version: | V009 |
Management Firmware Version: | 3.00 |
Workload Version: | SSJ 1.2.9 |
Director Location: | Controller |
Other Software: | IBM Websphere application server V7.0 for Windows on X86-64bit |
Host | ssj_ops@100% |
---|---|
WIN-LKEBNTJJ3AF | 945,982 |
WIN-UETCULOS2RL | 980,438 |
ssj_ops@100% | 1,926,420 |
ssj_ops@100% per Host | 963,210 |
ssj_ops@100% per JVM | 120,401 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 938,659 | ||
Calibration 2 | 945,812 | ||
Calibration 3 | 948,396 | ||
ssj_ops@calibrated=947,104 | |||
100% | 99.9% | 947,104 | 945,982 |
90% | 90.2% | 852,394 | 854,413 |
80% | 79.9% | 757,683 | 757,187 |
70% | 70.1% | 662,973 | 663,665 |
60% | 60.1% | 568,262 | 568,962 |
50% | 49.8% | 473,552 | 471,227 |
40% | 40.1% | 378,842 | 379,920 |
30% | 29.7% | 284,131 | 281,085 |
20% | 19.9% | 189,421 | 188,722 |
10% | 9.9% | 94,710 | 94,190 |
Active Idle | 0 | 0 |

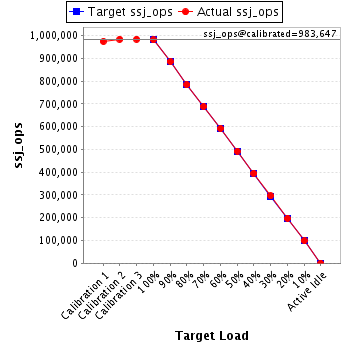

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 974,190 | ||
Calibration 2 | 983,381 | ||
Calibration 3 | 983,914 | ||
ssj_ops@calibrated=983,647 | |||
100% | 99.7% | 983,647 | 980,438 |
90% | 90.0% | 885,282 | 885,061 |
80% | 79.7% | 786,918 | 783,613 |
70% | 70.0% | 688,553 | 688,916 |
60% | 60.2% | 590,188 | 591,855 |
50% | 50.1% | 491,824 | 492,479 |
40% | 40.1% | 393,459 | 394,809 |
30% | 30.0% | 295,094 | 295,551 |
20% | 20.1% | 196,729 | 197,461 |
10% | 10.0% | 98,365 | 98,699 |
Active Idle | 0 | 0 |
