Acer Incorporated Acer AR385 F1 SPECpower_ssj2008 = 2,812 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Feb 14, 2011
Hardware Availability: Jan-2012 Software Availability: Dec-2010 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 301 25.0
Calibration 2 309 24.6
Calibration 3 309 24.2
100% 307 24.0
90% 294 24.1
80% 279 24.1
70% 259 23.7
60% 240 23.8
50% 216 24.1
40% 192 24.0
30% 168 23.7
20% 147 23.9
10% 127 24.3
Active Idle 94.9 23.4

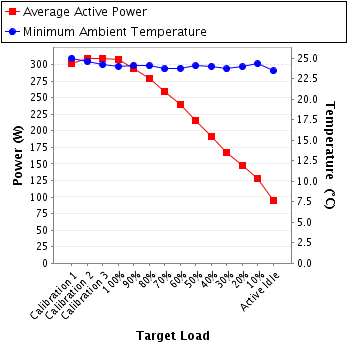

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 11-05-BAC-205-07
Date of Calibration: 16-May-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 1.46 2.0 0.967 301 0.4%
Calibration 2 214 300.0 1.50 2.0 0.968 309 0.3%
Calibration 3 214 300.0 1.49 2.0 0.968 309 0.3%
100% 214 300.0 1.50 2.0 0.960 307 0.4%
90% 214 300.0 1.44 2.0 0.956 294 0.4%
80% 214 300.0 1.36 2.0 0.958 279 0.4%
70% 214 300.0 1.27 2.0 0.954 259 0.4%
60% 214 300.0 1.18 2.0 0.950 240 0.4%
50% 214 300.0 1.07 1.0 0.943 216 0.3%
40% 214 300.0 0.960 1.0 0.935 192 0.3%
30% 214 300.0 0.851 1.0 0.921 168 0.4%
20% 214 300.0 0.757 1.0 0.908 147 0.4%
10% 214 300.0 0.668 1.0 0.890 127 0.4%
Active Idle 214 300.0 0.533 1.0 0.831 94.9 0.6%
Power details for pwr1
