Fujitsu PRIMERGY BX920 S3 (Intel Xeon E5-2470) SPECpower_ssj2008 = 4,677 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Apr 26, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,901 21.2
Calibration 2 4,938 21.8
Calibration 3 4,957 22.7
100% 4,965 23.2
90% 4,284 23.7
80% 3,498 23.8
70% 2,896 23.3
60% 2,462 23.0
50% 2,176 22.9
40% 1,989 22.7
30% 1,803 22.6
20% 1,618 22.5
10% 1,426 22.4
Active Idle 1,014 22.3

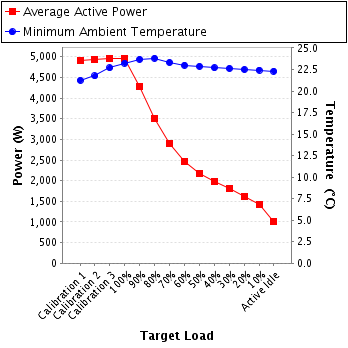

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 11080967
Date of Calibration: 03-Aug-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to 1st and 2nd PSU
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91HA48097
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 11111753
Date of Calibration: 14-Nov-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to 3rd PSU
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 226 250.0 10.4 20.0 0.996 2,329 0.1%
Calibration 2 226 250.0 10.4 20.0 0.996 2,344 0.1%
Calibration 3 226 250.0 10.5 20.0 0.996 2,356 0.1%
100% 226 250.0 10.5 20.0 0.996 2,361 0.1%
90% 226 250.0 9.08 10.0 0.995 2,045 0.1%
80% 227 250.0 7.49 10.0 0.993 1,686 0.1%
70% 227 250.0 6.31 10.0 0.987 1,415 0.1%
60% 227 250.0 5.85 10.0 0.985 1,311 0.1%
50% 228 250.0 4.84 10.0 0.981 1,084 0.1%
40% 228 250.0 4.48 10.0 0.979 1,000 0.1%
30% 229 250.0 4.07 10.0 0.976 909 0.1%
20% 229 250.0 3.69 10.0 0.972 821 0.2%
10% 229 250.0 3.30 10.0 0.967 730 0.2%
Active Idle 229 250.0 2.44 10.0 0.948 531 0.2%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 227 300.0 11.4 20.0 0.997 2,572 0.3%
Calibration 2 227 300.0 11.5 20.0 0.997 2,593 0.3%
Calibration 3 227 300.0 11.5 20.0 0.997 2,602 0.3%
100% 227 300.0 11.5 20.0 0.997 2,604 0.3%
90% 228 300.0 9.88 10.0 0.996 2,239 0.3%
80% 228 300.0 7.98 10.0 0.995 1,811 0.3%
70% 228 300.0 6.56 10.0 0.990 1,482 0.3%
60% 229 300.0 5.09 10.0 0.986 1,150 0.4%
50% 229 300.0 4.83 10.0 0.986 1,092 0.4%
40% 229 300.0 4.38 10.0 0.984 989 0.4%
30% 230 300.0 3.96 10.0 0.981 894 0.5%
20% 230 300.0 3.54 10.0 0.979 797 0.5%
10% 230 300.0 3.11 10.0 0.974 697 0.6%
Active Idle 230 300.0 2.19 10.0 0.958 484 0.8%

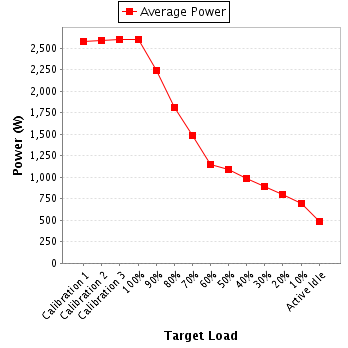

Power details for pwr2
