SPECpower_ssj2008 Host 'WIN-DR82N3O3GPD' Performance Report

SPECpower_ssj2008

Host 'WIN-DR82N3O3GPD' Performance Report

Huawei Technologies Co., Ltd RH2285 V2			ssj_ops@100% = 1,328,249 ssj_ops@100% per JVM = 166,031
Test Sponsor:	Huawei Technologies Co., Ltd	SPEC License #:	3175	Test Method:	Single Node
Tested By:	Huawei Technologies Co., Ltd	Test Location:	Shenzhen, Guangdong, China	Test Date:	May 10, 2012
Hardware Availability:	May-2012	Software Availability:	Dec-2011	Publication:	May 30, 2012
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

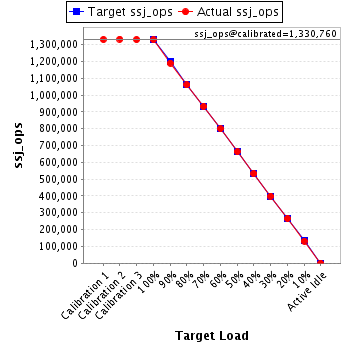

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,329,983
Calibration 2			1,332,017
Calibration 3			1,329,503
ssj_ops@calibrated=1,330,760
100%	99.8%	1,330,760	1,328,249
90%	89.4%	1,197,684	1,189,740
80%	79.7%	1,064,608	1,060,085
70%	70.1%	931,532	932,987
60%	60.0%	798,456	799,022
50%	49.8%	665,380	662,924
40%	40.0%	532,304	531,986
30%	30.0%	399,228	399,643
20%	20.0%	266,152	265,599
10%	9.9%	133,076	131,915
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	None

Hardware
Hardware Vendor:	Huawei Technologies Co., Ltd
Model:	RH2285 V2
Form Factor:	2U
CPU Name:	Intel Xeon E5-2470
CPU Characteristics:	8-Core, 2.30 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 3.10 GHz)
CPU Frequency (MHz):	2300
CPU(s) Enabled:	16 cores, 2 chips, 8 cores/chip
Hardware Threads:	32 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	16
# and size of DIMM:	4 x 4 GB
Memory Details:	4GB 2Rx8 PC3L-10600R ECC
Power Supply Quantity and Rating (W):	1 x 460
Power Supply Details:	Huawei P/N PW98080438
Disk Drive:	1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver enabled in OS
Operating System (OS):	Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version:	R2 SP1
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options:	-server -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /affinity [0x0F,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances:	8
JVM Initial Heap (MB):	1600
JVM Maximum Heap (MB):	1600
JVM Address Bits:	64
Boot Firmware Version:	V018
Management Firmware Version:	3.02
Workload Version:	SSJ 1.2.9
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Hardware prefetcher -disabled.
Adjacent Cache Line Prefetch -disabled.
DCU Streamer Prefetcher -disabled.
Intel HT Technology -enabled.
Turbo mode -enabled.
C-state -enabled.
Power Mode -Efficiency.
QPI Link Speed -6.4GT/s.
Memory Frequency Limit -1333MHz.
Demand Scrubbing -disabled.
USB configuration EHCI 2 -disabled.

Management Firmware Settings

none

System Under Test Notes

The test was started via Remote Desktop.
Minimum Processor State: 0%.
Maximum Processor State: 100%.
Turn off hard disk after 1 minute .
Each JVM instance was affinitized to four logical processors.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-DR82N3O3GPD.001	166,494
WIN-DR82N3O3GPD.002	166,104
WIN-DR82N3O3GPD.003	165,776
WIN-DR82N3O3GPD.004	165,377
WIN-DR82N3O3GPD.005	165,888
WIN-DR82N3O3GPD.006	166,748
WIN-DR82N3O3GPD.007	165,254
WIN-DR82N3O3GPD.008	166,608
ssj_ops@100%	1,328,249
ssj_ops@100% per JVM	166,031

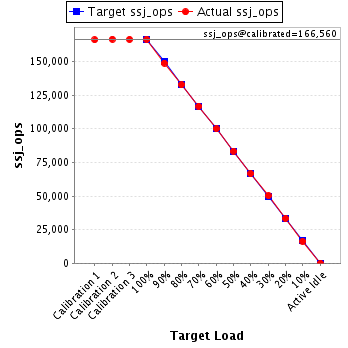

JVM 'WIN-DR82N3O3GPD.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			166,105
Calibration 2			166,639
Calibration 3			166,481
ssj_ops@calibrated=166,560
100%	100.0%	166,560	166,494
90%	89.4%	149,904	148,876
80%	79.6%	133,248	132,613
70%	70.1%	116,592	116,752
60%	60.1%	99,936	100,025
50%	50.1%	83,280	83,444
40%	39.9%	66,624	66,536
30%	30.2%	49,968	50,219
20%	20.1%	33,312	33,405
10%	9.8%	16,656	16,396
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-DR82N3O3GPD.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			166,465
Calibration 2			166,544
Calibration 3			166,411
ssj_ops@calibrated=166,477
100%	99.8%	166,477	166,104
90%	90.1%	149,829	150,004
80%	79.9%	133,182	132,989
70%	70.5%	116,534	117,411
60%	60.3%	99,886	100,354
50%	49.6%	83,239	82,496
40%	40.0%	66,591	66,643
30%	30.0%	49,943	49,909
20%	19.7%	33,295	32,777
10%	9.9%	16,648	16,399
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-DR82N3O3GPD.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			166,128
Calibration 2			166,489
Calibration 3			166,486
ssj_ops@calibrated=166,487
100%	99.6%	166,487	165,776
90%	89.5%	149,839	148,943
80%	79.4%	133,190	132,239
70%	70.1%	116,541	116,661
60%	60.0%	99,892	99,848
50%	50.1%	83,244	83,422
40%	40.5%	66,595	67,416
30%	30.1%	49,946	50,139
20%	20.3%	33,297	33,781
10%	10.1%	16,649	16,863
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

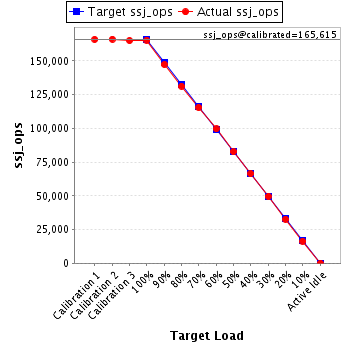

JVM 'WIN-DR82N3O3GPD.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			165,989
Calibration 2			166,132
Calibration 3			165,098
ssj_ops@calibrated=165,615
100%	99.9%	165,615	165,377
90%	89.0%	149,054	147,375
80%	79.3%	132,492	131,324
70%	69.7%	115,931	115,502
60%	60.2%	99,369	99,649
50%	49.9%	82,808	82,663
40%	40.1%	66,246	66,367
30%	30.0%	49,685	49,632
20%	19.7%	33,123	32,679
10%	9.9%	16,562	16,402
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-DR82N3O3GPD.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			166,368
Calibration 2			166,160
Calibration 3			165,752
ssj_ops@calibrated=165,956
100%	100.0%	165,956	165,888
90%	89.5%	149,360	148,478
80%	79.7%	132,765	132,305
70%	70.4%	116,169	116,904
60%	60.5%	99,573	100,439
50%	49.9%	82,978	82,875
40%	39.8%	66,382	66,083
30%	29.8%	49,787	49,456
20%	20.1%	33,191	33,352
10%	10.1%	16,596	16,740
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-DR82N3O3GPD.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			165,963
Calibration 2			166,754
Calibration 3			166,376
ssj_ops@calibrated=166,565
100%	100.1%	166,565	166,748
90%	89.2%	149,909	148,503
80%	79.9%	133,252	133,027
70%	69.9%	116,596	116,467
60%	59.5%	99,939	99,176
50%	49.1%	83,283	81,817
40%	40.2%	66,626	66,929
30%	30.1%	49,970	50,054
20%	19.6%	33,313	32,564
10%	9.8%	16,657	16,316
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-DR82N3O3GPD.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			166,529
Calibration 2			166,091
Calibration 3			166,133
ssj_ops@calibrated=166,112
100%	99.5%	166,112	165,254
90%	89.1%	149,501	148,067
80%	79.9%	132,889	132,692
70%	70.1%	116,278	116,450
60%	60.7%	99,667	100,758
50%	50.0%	83,056	83,136
40%	39.5%	66,445	65,652
30%	29.7%	49,834	49,415
20%	19.8%	33,222	32,966
10%	9.8%	16,611	16,287
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-DR82N3O3GPD.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			166,436
Calibration 2			167,208
Calibration 3			166,766
ssj_ops@calibrated=166,987
100%	99.8%	166,987	166,608
90%	89.5%	150,288	149,493
80%	79.6%	133,589	132,896
70%	70.0%	116,891	116,840
60%	59.2%	100,192	98,773
50%	49.7%	83,493	83,070
40%	39.7%	66,795	66,360
30%	30.4%	50,096	50,819
20%	20.4%	33,397	34,075
10%	9.9%	16,699	16,511
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
