Dell Inc. PowerEdge M520 ssj_ops@100% = 1,304,388
ssj_ops@100% per JVM = 81,524
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,309,619
Calibration 2     1,312,960
Calibration 3     1,314,103
ssj_ops@calibrated=1,313,531
100% 99.3% 1,313,531 1,304,388
90% 89.9% 1,182,178 1,180,734
80% 80.2% 1,050,825 1,053,856
70% 70.0% 919,472 919,228
60% 60.1% 788,119 789,089
50% 50.2% 656,766 659,555
40% 39.9% 525,413 523,797
30% 30.2% 394,059 396,396
20% 20.1% 262,706 264,238
10% 10.0% 131,353 131,016
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Broadcom Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 0.4.3
Management Firmware Version: iDRAC7 1.10 Build 14
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-01.001 83,295
M520-01.002 82,071
M520-01.003 82,405
M520-01.004 81,790
M520-01.005 81,286
M520-01.006 83,145
M520-01.007 82,603
M520-01.008 82,838
M520-01.009 80,882
M520-01.010 79,866
M520-01.011 79,827
M520-01.012 81,494
M520-01.013 80,837
M520-01.014 80,953
M520-01.015 80,783
M520-01.016 80,312
ssj_ops@100% 1,304,388
ssj_ops@100% per JVM 81,524

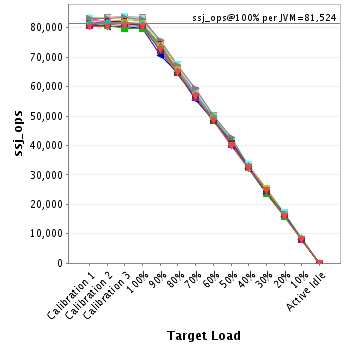

Graph of per-instance results
JVM 'M520-01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,573
Calibration 2     83,382
Calibration 3     83,802
ssj_ops@calibrated=83,592
100% 99.6% 83,592 83,295
90% 89.8% 75,233 75,042
80% 79.5% 66,874 66,426
70% 70.1% 58,514 58,610
60% 60.1% 50,155 50,234
50% 50.0% 41,796 41,758
40% 39.5% 33,437 33,021
30% 30.0% 25,078 25,046
20% 20.1% 16,718 16,786
10% 9.7% 8,359 8,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,812
Calibration 2     82,106
Calibration 3     82,888
ssj_ops@calibrated=82,497
100% 99.5% 82,497 82,071
90% 89.7% 74,248 73,993
80% 80.1% 65,998 66,082
70% 70.4% 57,748 58,098
60% 59.7% 49,498 49,256
50% 50.0% 41,249 41,288
40% 39.3% 32,999 32,390
30% 30.0% 24,749 24,762
20% 19.9% 16,499 16,412
10% 9.8% 8,250 8,088
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,555
Calibration 2     83,569
Calibration 3     83,584
ssj_ops@calibrated=83,577
100% 98.6% 83,577 82,405
90% 90.0% 75,219 75,254
80% 79.9% 66,861 66,741
70% 70.3% 58,504 58,725
60% 60.2% 50,146 50,299
50% 50.1% 41,788 41,912
40% 39.9% 33,431 33,334
30% 30.4% 25,073 25,427
20% 20.2% 16,715 16,855
10% 10.3% 8,358 8,595
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,073
Calibration 2     82,469
Calibration 3     82,752
ssj_ops@calibrated=82,611
100% 99.0% 82,611 81,790
90% 89.9% 74,350 74,268
80% 80.5% 66,088 66,482
70% 70.9% 57,827 58,540
60% 59.9% 49,566 49,492
50% 49.7% 41,305 41,066
40% 40.3% 33,044 33,254
30% 30.9% 24,783 25,527
20% 20.0% 16,522 16,501
10% 10.4% 8,261 8,570
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,402
Calibration 2     82,111
Calibration 3     81,755
ssj_ops@calibrated=81,933
100% 99.2% 81,933 81,286
90% 89.7% 73,739 73,454
80% 80.7% 65,546 66,153
70% 70.0% 57,353 57,331
60% 60.7% 49,160 49,728
50% 50.7% 40,966 41,573
40% 39.5% 32,773 32,361
30% 30.0% 24,580 24,604
20% 20.7% 16,387 16,999
10% 10.0% 8,193 8,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,249
Calibration 2     83,234
Calibration 3     83,849
ssj_ops@calibrated=83,542
100% 99.5% 83,542 83,145
90% 89.4% 75,188 74,686
80% 80.9% 66,833 67,598
70% 69.4% 58,479 58,014
60% 59.7% 50,125 49,908
50% 50.0% 41,771 41,765
40% 40.2% 33,417 33,554
30% 30.5% 25,063 25,490
20% 20.6% 16,708 17,178
10% 9.7% 8,354 8,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,083
Calibration 2     83,399
Calibration 3     83,348
ssj_ops@calibrated=83,373
100% 99.1% 83,373 82,603
90% 90.8% 75,036 75,705
80% 80.7% 66,699 67,248
70% 70.2% 58,361 58,565
60% 59.4% 50,024 49,515
50% 50.1% 41,687 41,792
40% 40.0% 33,349 33,308
30% 30.4% 25,012 25,327
20% 19.8% 16,675 16,514
10% 9.6% 8,337 8,021
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,241
Calibration 2     83,196
Calibration 3     83,490
ssj_ops@calibrated=83,343
100% 99.4% 83,343 82,838
90% 90.9% 75,009 75,743
80% 80.6% 66,674 67,163
70% 71.4% 58,340 59,476
60% 60.2% 50,006 50,138
50% 51.4% 41,672 42,867
40% 39.6% 33,337 33,025
30% 30.2% 25,003 25,144
20% 20.0% 16,669 16,636
10% 9.9% 8,334 8,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,355
Calibration 2     82,036
Calibration 3     81,971
ssj_ops@calibrated=82,003
100% 98.6% 82,003 80,882
90% 90.6% 73,803 74,329
80% 79.6% 65,602 65,296
70% 68.6% 57,402 56,242
60% 59.7% 49,202 48,928
50% 50.3% 41,002 41,276
40% 39.5% 32,801 32,366
30% 30.2% 24,601 24,744
20% 20.0% 16,401 16,407
10% 9.9% 8,200 8,096
Active Idle   0 0

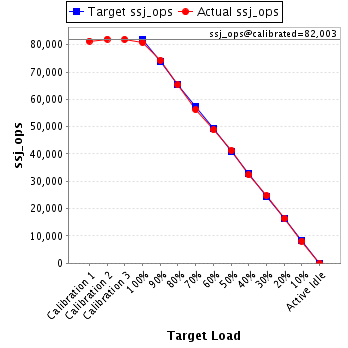

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,624
Calibration 2     80,379
Calibration 3     80,509
ssj_ops@calibrated=80,444
100% 99.3% 80,444 79,866
90% 87.9% 72,400 70,700
80% 80.3% 64,355 64,630
70% 69.3% 56,311 55,734
60% 60.2% 48,267 48,413
50% 49.7% 40,222 40,006
40% 40.0% 32,178 32,171
30% 29.6% 24,133 23,837
20% 19.8% 16,089 15,953
10% 10.1% 8,044 8,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,639
Calibration 2     80,774
Calibration 3     79,681
ssj_ops@calibrated=80,228
100% 99.5% 80,228 79,827
90% 90.3% 72,205 72,462
80% 81.0% 64,182 65,004
70% 70.2% 56,159 56,326
60% 60.5% 48,137 48,562
50% 50.4% 40,114 40,416
40% 40.5% 32,091 32,496
30% 29.6% 24,068 23,739
20% 19.9% 16,046 15,953
10% 10.1% 8,023 8,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,023
Calibration 2     81,432
Calibration 3     81,796
ssj_ops@calibrated=81,614
100% 99.9% 81,614 81,494
90% 90.8% 73,453 74,094
80% 80.7% 65,291 65,850
70% 69.8% 57,130 56,936
60% 60.8% 48,969 49,624
50% 50.2% 40,807 40,991
40% 39.7% 32,646 32,390
30% 31.1% 24,484 25,367
20% 20.1% 16,323 16,396
10% 9.9% 8,161 8,067
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,725
Calibration 2     81,658
Calibration 3     81,336
ssj_ops@calibrated=81,497
100% 99.2% 81,497 80,837
90% 90.2% 73,348 73,497
80% 80.1% 65,198 65,251
70% 69.0% 57,048 56,260
60% 59.9% 48,898 48,857
50% 49.4% 40,749 40,294
40% 40.1% 32,599 32,694
30% 29.8% 24,449 24,262
20% 20.5% 16,299 16,676
10% 10.0% 8,150 8,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,263
Calibration 2     81,862
Calibration 3     81,337
ssj_ops@calibrated=81,600
100% 99.2% 81,600 80,953
90% 89.7% 73,440 73,206
80% 79.6% 65,280 64,991
70% 70.3% 57,120 57,324
60% 60.7% 48,960 49,504
50% 50.7% 40,800 41,369
40% 40.0% 32,640 32,670
30% 29.7% 24,480 24,252
20% 20.5% 16,320 16,711
10% 10.4% 8,160 8,470
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

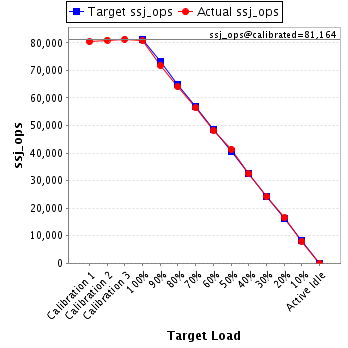

JVM 'M520-01.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,449
Calibration 2     80,998
Calibration 3     81,329
ssj_ops@calibrated=81,164
100% 99.5% 81,164 80,783
90% 88.4% 73,047 71,787
80% 79.0% 64,931 64,110
70% 69.6% 56,814 56,501
60% 59.3% 48,698 48,119
50% 50.9% 40,582 41,347
40% 40.1% 32,465 32,539
30% 29.8% 24,349 24,187
20% 20.3% 16,233 16,513
10% 9.8% 8,116 7,954
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,552
Calibration 2     80,353
Calibration 3     80,676
ssj_ops@calibrated=80,514
100% 99.7% 80,514 80,312
90% 90.1% 72,463 72,514
80% 80.5% 64,412 64,830
70% 70.2% 56,360 56,548
60% 60.3% 48,309 48,513
50% 49.5% 40,257 39,836
40% 40.0% 32,206 32,224
30% 30.7% 24,154 24,682
20% 19.6% 16,103 15,746
10% 10.1% 8,051 8,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
