Dell Inc. PowerEdge M520 ssj_ops@100% = 1,302,467
ssj_ops@100% per JVM = 81,404
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,316,552
Calibration 2     1,315,307
Calibration 3     1,314,221
ssj_ops@calibrated=1,314,764
100% 99.1% 1,314,764 1,302,467
90% 90.0% 1,183,288 1,183,771
80% 80.0% 1,051,811 1,051,388
70% 70.2% 920,335 922,500
60% 60.2% 788,859 790,920
50% 49.9% 657,382 656,114
40% 40.0% 525,906 526,444
30% 30.3% 394,429 398,469
20% 20.0% 262,953 262,448
10% 10.0% 131,476 131,614
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Broadcom Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 0.4.3
Management Firmware Version: iDRAC7 1.10 Build 14
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-03.001 81,430
M520-03.002 80,984
M520-03.003 81,759
M520-03.004 82,076
M520-03.005 81,413
M520-03.006 80,889
M520-03.007 82,131
M520-03.008 82,294
M520-03.009 81,735
M520-03.010 80,966
M520-03.011 81,642
M520-03.012 81,097
M520-03.013 81,325
M520-03.014 81,087
M520-03.015 81,117
M520-03.016 80,524
ssj_ops@100% 1,302,467
ssj_ops@100% per JVM 81,404

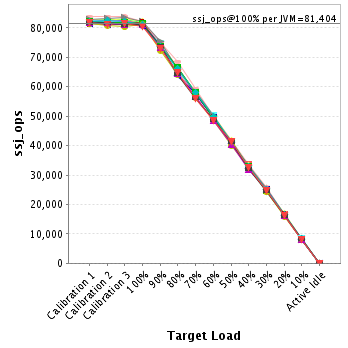

Graph of per-instance results
JVM 'M520-03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,320
Calibration 2     82,169
Calibration 3     82,573
ssj_ops@calibrated=82,371
100% 98.9% 82,371 81,430
90% 89.6% 74,134 73,771
80% 79.3% 65,897 65,340
70% 70.1% 57,660 57,755
60% 60.1% 49,423 49,484
50% 49.4% 41,185 40,727
40% 40.6% 32,948 33,481
30% 29.9% 24,711 24,597
20% 20.2% 16,474 16,659
10% 10.0% 8,237 8,254
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,356
Calibration 2     82,169
Calibration 3     82,613
ssj_ops@calibrated=82,391
100% 98.3% 82,391 80,984
90% 89.8% 74,152 73,995
80% 80.6% 65,913 66,374
70% 70.3% 57,674 57,884
60% 60.3% 49,434 49,704
50% 50.4% 41,195 41,488
40% 39.6% 32,956 32,652
30% 30.1% 24,717 24,840
20% 19.6% 16,478 16,132
10% 10.0% 8,239 8,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,593
Calibration 2     83,044
Calibration 3     83,036
ssj_ops@calibrated=83,040
100% 98.5% 83,040 81,759
90% 90.0% 74,736 74,773
80% 80.0% 66,432 66,416
70% 69.8% 58,128 57,987
60% 60.2% 49,824 49,989
50% 49.4% 41,520 41,052
40% 39.9% 33,216 33,129
30% 30.6% 24,912 25,375
20% 20.0% 16,608 16,647
10% 9.8% 8,304 8,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,734
Calibration 2     82,655
Calibration 3     83,172
ssj_ops@calibrated=82,913
100% 99.0% 82,913 82,076
90% 89.1% 74,622 73,894
80% 79.9% 66,331 66,240
70% 70.2% 58,039 58,196
60% 60.5% 49,748 50,152
50% 50.2% 41,457 41,628
40% 40.2% 33,165 33,306
30% 30.4% 24,874 25,179
20% 20.4% 16,583 16,877
10% 10.0% 8,291 8,311
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,559
Calibration 2     82,561
Calibration 3     82,235
ssj_ops@calibrated=82,398
100% 98.8% 82,398 81,413
90% 90.7% 74,158 74,696
80% 80.2% 65,918 66,092
70% 70.1% 57,679 57,765
60% 59.7% 49,439 49,185
50% 49.3% 41,199 40,663
40% 40.5% 32,959 33,334
30% 30.3% 24,719 24,945
20% 19.9% 16,480 16,364
10% 9.9% 8,240 8,166
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,630
Calibration 2     82,336
Calibration 3     81,988
ssj_ops@calibrated=82,162
100% 98.5% 82,162 80,889
90% 90.8% 73,946 74,570
80% 79.4% 65,729 65,236
70% 71.2% 57,513 58,466
60% 61.0% 49,297 50,081
50% 49.6% 41,081 40,723
40% 40.2% 32,865 33,027
30% 29.8% 24,649 24,473
20% 19.8% 16,432 16,251
10% 10.1% 8,216 8,291
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,768
Calibration 2     83,836
Calibration 3     83,959
ssj_ops@calibrated=83,898
100% 97.9% 83,898 82,131
90% 89.4% 75,508 74,999
80% 81.7% 67,118 68,522
70% 70.6% 58,728 59,271
60% 59.3% 50,339 49,772
50% 49.7% 41,949 41,664
40% 39.9% 33,559 33,466
30% 30.8% 25,169 25,848
20% 19.7% 16,780 16,487
10% 10.1% 8,390 8,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,792
Calibration 2     83,126
Calibration 3     83,427
ssj_ops@calibrated=83,277
100% 98.8% 83,277 82,294
90% 90.5% 74,949 75,366
80% 79.2% 66,621 65,934
70% 70.1% 58,294 58,340
60% 60.3% 49,966 50,220
50% 49.5% 41,638 41,229
40% 40.0% 33,311 33,286
30% 30.3% 24,983 25,273
20% 20.1% 16,655 16,745
10% 9.8% 8,328 8,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,655
Calibration 2     81,828
Calibration 3     81,494
ssj_ops@calibrated=81,661
100% 100.1% 81,661 81,735
90% 90.2% 73,495 73,685
80% 81.4% 65,329 66,438
70% 70.7% 57,163 57,765
60% 60.6% 48,997 49,465
50% 49.9% 40,831 40,780
40% 40.5% 32,664 33,061
30% 30.2% 24,498 24,674
20% 20.1% 16,332 16,449
10% 9.9% 8,166 8,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,559
Calibration 2     81,334
Calibration 3     81,307
ssj_ops@calibrated=81,321
100% 99.6% 81,321 80,966
90% 90.7% 73,189 73,764
80% 78.6% 65,057 63,889
70% 70.8% 56,925 57,556
60% 60.8% 48,793 49,476
50% 50.1% 40,660 40,721
40% 39.8% 32,528 32,387
30% 30.6% 24,396 24,922
20% 19.9% 16,264 16,191
10% 10.0% 8,132 8,144
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,156
Calibration 2     81,819
Calibration 3     81,888
ssj_ops@calibrated=81,853
100% 99.7% 81,853 81,642
90% 90.0% 73,668 73,687
80% 81.5% 65,483 66,671
70% 70.9% 57,297 58,051
60% 60.2% 49,112 49,271
50% 50.4% 40,927 41,257
40% 40.1% 32,741 32,824
30% 30.2% 24,556 24,686
20% 20.0% 16,371 16,346
10% 10.0% 8,185 8,183
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,636
Calibration 2     81,003
Calibration 3     80,359
ssj_ops@calibrated=80,681
100% 100.5% 80,681 81,097
90% 89.9% 72,613 72,510
80% 79.5% 64,545 64,128
70% 70.1% 56,477 56,534
60% 60.2% 48,408 48,576
50% 49.6% 40,340 40,043
40% 40.5% 32,272 32,702
30% 30.0% 24,204 24,244
20% 19.8% 16,136 16,007
10% 10.1% 8,068 8,149
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,874
Calibration 2     81,836
Calibration 3     81,338
ssj_ops@calibrated=81,587
100% 99.7% 81,587 81,325
90% 90.0% 73,428 73,444
80% 79.2% 65,270 64,629
70% 69.3% 57,111 56,547
60% 59.5% 48,952 48,544
50% 49.3% 40,794 40,229
40% 39.3% 32,635 32,030
30% 30.6% 24,476 24,990
20% 19.8% 16,317 16,164
10% 9.8% 8,159 8,020
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,327
Calibration 2     82,542
Calibration 3     82,257
ssj_ops@calibrated=82,399
100% 98.4% 82,399 81,087
90% 89.4% 74,159 73,698
80% 80.4% 65,919 66,228
70% 70.6% 57,679 58,164
60% 60.4% 49,439 49,776
50% 50.4% 41,200 41,505
40% 40.1% 32,960 33,044
30% 30.6% 24,720 25,174
20% 20.2% 16,480 16,605
10% 10.2% 8,240 8,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,776
Calibration 2     81,699
Calibration 3     81,069
ssj_ops@calibrated=81,384
100% 99.7% 81,384 81,117
90% 90.9% 73,246 73,958
80% 79.0% 65,107 64,322
70% 69.0% 56,969 56,131
60% 59.9% 48,831 48,743
50% 50.5% 40,692 41,136
40% 39.5% 32,554 32,156
30% 30.1% 24,415 24,521
20% 19.9% 16,277 16,185
10% 10.3% 8,138 8,347
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-03.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,817
Calibration 2     81,349
Calibration 3     81,507
ssj_ops@calibrated=81,428
100% 98.9% 81,428 80,524
90% 89.6% 73,285 72,961
80% 79.7% 65,142 64,930
70% 68.9% 57,000 56,090
60% 59.5% 48,857 48,479
50% 50.7% 40,714 41,270
40% 40.0% 32,571 32,560
30% 30.4% 24,428 24,729
20% 20.1% 16,286 16,340
10% 10.0% 8,143 8,172
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
