Dell Inc. PowerEdge M520 ssj_ops@100% = 1,298,213
ssj_ops@100% per JVM = 81,138
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,301,683
Calibration 2     1,306,935
Calibration 3     1,304,589
ssj_ops@calibrated=1,305,762
100% 99.4% 1,305,762 1,298,213
90% 89.5% 1,175,186 1,168,211
80% 80.0% 1,044,609 1,044,660
70% 70.0% 914,033 913,480
60% 60.0% 783,457 783,797
50% 50.1% 652,881 654,048
40% 40.0% 522,305 522,837
30% 29.8% 391,729 389,702
20% 20.0% 261,152 261,363
10% 10.0% 130,576 130,888
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Broadcom Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 0.4.3
Management Firmware Version: iDRAC7 1.10 Build 14
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-04.001 80,368
M520-04.002 81,336
M520-04.003 80,031
M520-04.004 80,468
M520-04.005 80,543
M520-04.006 81,022
M520-04.007 81,104
M520-04.008 80,594
M520-04.009 82,067
M520-04.010 81,543
M520-04.011 80,822
M520-04.012 81,324
M520-04.013 81,848
M520-04.014 81,012
M520-04.015 82,757
M520-04.016 81,374
ssj_ops@100% 1,298,213
ssj_ops@100% per JVM 81,138

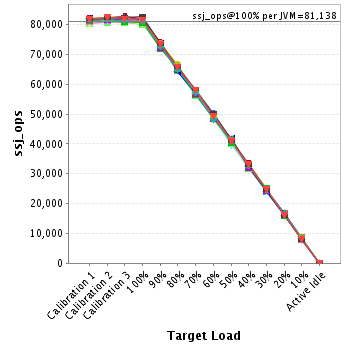

Graph of per-instance results
JVM 'M520-04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,221
Calibration 2     81,420
Calibration 3     81,561
ssj_ops@calibrated=81,491
100% 98.6% 81,491 80,368
90% 89.8% 73,342 73,173
80% 80.6% 65,193 65,720
70% 69.9% 57,043 56,971
60% 60.1% 48,894 49,016
50% 50.2% 40,745 40,925
40% 40.1% 32,596 32,654
30% 30.0% 24,447 24,481
20% 20.6% 16,298 16,814
10% 10.4% 8,149 8,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,071
Calibration 2     81,360
Calibration 3     81,772
ssj_ops@calibrated=81,566
100% 99.7% 81,566 81,336
90% 89.1% 73,409 72,645
80% 79.1% 65,253 64,519
70% 70.0% 57,096 57,069
60% 61.6% 48,940 50,274
50% 50.4% 40,783 41,146
40% 40.5% 32,626 33,043
30% 29.7% 24,470 24,234
20% 20.2% 16,313 16,507
10% 9.8% 8,157 7,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,351
Calibration 2     80,602
Calibration 3     80,530
ssj_ops@calibrated=80,566
100% 99.3% 80,566 80,031
90% 90.2% 72,509 72,682
80% 80.4% 64,453 64,752
70% 69.9% 56,396 56,344
60% 60.9% 48,339 49,055
50% 49.8% 40,283 40,083
40% 39.3% 32,226 31,661
30% 29.9% 24,170 24,107
20% 20.1% 16,113 16,216
10% 10.2% 8,057 8,224
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,510
Calibration 2     81,376
Calibration 3     81,002
ssj_ops@calibrated=81,189
100% 99.1% 81,189 80,468
90% 88.8% 73,070 72,106
80% 79.8% 64,951 64,789
70% 70.5% 56,832 57,238
60% 59.0% 48,713 47,925
50% 50.1% 40,594 40,644
40% 40.3% 32,476 32,747
30% 30.2% 24,357 24,511
20% 20.0% 16,238 16,262
10% 10.1% 8,119 8,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,458
Calibration 2     80,884
Calibration 3     80,686
ssj_ops@calibrated=80,785
100% 99.7% 80,785 80,543
90% 89.5% 72,706 72,282
80% 80.6% 64,628 65,133
70% 70.1% 56,549 56,620
60% 60.6% 48,471 48,977
50% 51.1% 40,392 41,284
40% 40.6% 32,314 32,774
30% 29.7% 24,235 24,022
20% 20.5% 16,157 16,532
10% 9.8% 8,078 7,920
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,880
Calibration 2     81,381
Calibration 3     81,264
ssj_ops@calibrated=81,322
100% 99.6% 81,322 81,022
90% 89.7% 73,190 72,930
80% 80.2% 65,058 65,260
70% 69.7% 56,926 56,647
60% 60.2% 48,793 48,930
50% 48.7% 40,661 39,587
40% 39.9% 32,529 32,441
30% 29.4% 24,397 23,936
20% 19.8% 16,264 16,132
10% 10.0% 8,132 8,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,608
Calibration 2     82,141
Calibration 3     81,323
ssj_ops@calibrated=81,732
100% 99.2% 81,732 81,104
90% 90.4% 73,559 73,918
80% 80.3% 65,386 65,661
70% 69.9% 57,212 57,098
60% 60.2% 49,039 49,202
50% 49.2% 40,866 40,251
40% 39.5% 32,693 32,296
30% 29.6% 24,520 24,232
20% 20.6% 16,346 16,829
10% 9.8% 8,173 8,029
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,312
Calibration 2     81,784
Calibration 3     81,304
ssj_ops@calibrated=81,544
100% 98.8% 81,544 80,594
90% 89.8% 73,390 73,210
80% 79.4% 65,235 64,733
70% 70.6% 57,081 57,556
60% 59.7% 48,926 48,708
50% 50.4% 40,772 41,076
40% 39.7% 32,618 32,350
30% 29.4% 24,463 23,976
20% 19.8% 16,309 16,166
10% 9.7% 8,154 7,902
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,176
Calibration 2     82,354
Calibration 3     82,655
ssj_ops@calibrated=82,504
100% 99.5% 82,504 82,067
90% 89.8% 74,254 74,100
80% 79.7% 66,003 65,747
70% 69.4% 57,753 57,276
60% 59.8% 49,503 49,367
50% 49.5% 41,252 40,824
40% 40.6% 33,002 33,514
30% 29.9% 24,751 24,691
20% 20.1% 16,501 16,574
10% 10.3% 8,250 8,520
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,148
Calibration 2     81,748
Calibration 3     81,710
ssj_ops@calibrated=81,729
100% 99.8% 81,729 81,543
90% 90.1% 73,556 73,602
80% 78.8% 65,383 64,385
70% 69.5% 57,210 56,781
60% 59.2% 49,037 48,404
50% 51.0% 40,864 41,676
40% 39.5% 32,691 32,277
30% 29.5% 24,519 24,115
20% 19.7% 16,346 16,066
10% 10.1% 8,173 8,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,466
Calibration 2     81,618
Calibration 3     80,968
ssj_ops@calibrated=81,293
100% 99.4% 81,293 80,822
90% 88.4% 73,164 71,884
80% 80.5% 65,035 65,415
70% 69.6% 56,905 56,564
60% 59.9% 48,776 48,679
50% 49.9% 40,647 40,553
40% 40.8% 32,517 33,135
30% 30.7% 24,388 24,932
20% 19.5% 16,259 15,866
10% 10.1% 8,129 8,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,736
Calibration 2     82,279
Calibration 3     82,099
ssj_ops@calibrated=82,189
100% 98.9% 82,189 81,324
90% 89.6% 73,970 73,670
80% 81.0% 65,752 66,578
70% 69.5% 57,533 57,160
60% 59.7% 49,314 49,108
50% 50.3% 41,095 41,356
40% 40.0% 32,876 32,836
30% 30.0% 24,657 24,644
20% 19.7% 16,438 16,203
10% 10.5% 8,219 8,641
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,706
Calibration 2     81,716
Calibration 3     82,268
ssj_ops@calibrated=81,992
100% 99.8% 81,992 81,848
90% 88.3% 73,793 72,369
80% 79.8% 65,593 65,466
70% 69.4% 57,394 56,942
60% 59.3% 49,195 48,627
50% 50.5% 40,996 41,439
40% 39.2% 32,797 32,181
30% 29.6% 24,598 24,247
20% 20.2% 16,398 16,545
10% 9.9% 8,199 8,141
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,744
Calibration 2     81,686
Calibration 3     81,275
ssj_ops@calibrated=81,481
100% 99.4% 81,481 81,012
90% 89.3% 73,333 72,794
80% 79.7% 65,185 64,961
70% 70.2% 57,037 57,161
60% 59.2% 48,889 48,253
50% 50.3% 40,740 41,024
40% 40.1% 32,592 32,647
30% 30.1% 24,444 24,540
20% 20.5% 16,296 16,707
10% 10.2% 8,148 8,273
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,547
Calibration 2     82,172
Calibration 3     82,454
ssj_ops@calibrated=82,313
100% 100.5% 82,313 82,757
90% 89.4% 74,082 73,580
80% 80.1% 65,850 65,910
70% 70.8% 57,619 58,246
60% 61.0% 49,388 50,239
50% 50.3% 41,156 41,399
40% 40.2% 32,925 33,098
30% 29.7% 24,694 24,409
20% 19.3% 16,463 15,882
10% 9.6% 8,231 7,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-04.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,750
Calibration 2     82,414
Calibration 3     81,718
ssj_ops@calibrated=82,066
100% 99.2% 82,066 81,374
90% 89.3% 73,859 73,266
80% 80.0% 65,653 65,630
70% 70.4% 57,446 57,806
60% 59.7% 49,240 49,033
50% 49.7% 41,033 40,782
40% 40.4% 32,826 33,181
30% 30.0% 24,620 24,626
20% 19.6% 16,413 16,062
10% 9.9% 8,207 8,094
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
