Dell Inc. PowerEdge M520 ssj_ops@100% = 1,307,232
ssj_ops@100% per JVM = 81,702
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,312,269
Calibration 2     1,313,732
Calibration 3     1,313,807
ssj_ops@calibrated=1,313,770
100% 99.5% 1,313,770 1,307,232
90% 90.0% 1,182,393 1,182,265
80% 79.9% 1,051,016 1,049,272
70% 70.0% 919,639 919,009
60% 59.7% 788,262 784,427
50% 50.3% 656,885 660,206
40% 40.0% 525,508 524,991
30% 29.9% 394,131 392,906
20% 20.0% 262,754 262,144
10% 9.9% 131,377 130,346
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Broadcom Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 0.4.3
Management Firmware Version: iDRAC7 1.10 Build 14
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-06.001 82,289
M520-06.002 80,928
M520-06.003 81,374
M520-06.004 81,097
M520-06.005 82,042
M520-06.006 82,155
M520-06.007 81,845
M520-06.008 81,604
M520-06.009 82,730
M520-06.010 80,632
M520-06.011 80,534
M520-06.012 82,265
M520-06.013 80,563
M520-06.014 83,065
M520-06.015 82,376
M520-06.016 81,733
ssj_ops@100% 1,307,232
ssj_ops@100% per JVM 81,702

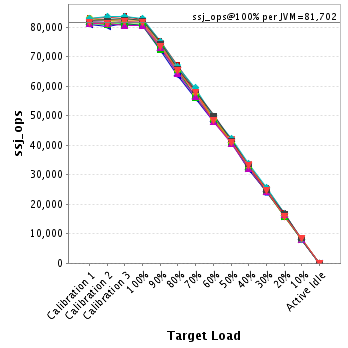

Graph of per-instance results
JVM 'M520-06.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,240
Calibration 2     82,386
Calibration 3     83,002
ssj_ops@calibrated=82,694
100% 99.5% 82,694 82,289
90% 90.2% 74,425 74,574
80% 80.2% 66,155 66,316
70% 68.7% 57,886 56,796
60% 58.8% 49,616 48,593
50% 50.9% 41,347 42,123
40% 40.6% 33,078 33,552
30% 30.2% 24,808 24,978
20% 20.0% 16,539 16,578
10% 10.0% 8,269 8,231
Active Idle   0 0
Graph of results
JVM 'M520-06.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,098
Calibration 2     81,469
Calibration 3     81,286
ssj_ops@calibrated=81,377
100% 99.4% 81,377 80,928
90% 90.0% 73,240 73,279
80% 79.6% 65,102 64,813
70% 70.2% 56,964 57,147
60% 59.7% 48,826 48,623
50% 50.2% 40,689 40,813
40% 40.5% 32,551 32,943
30% 29.4% 24,413 23,932
20% 20.4% 16,275 16,614
10% 9.7% 8,138 7,916
Active Idle   0 0
Graph of results
JVM 'M520-06.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,186
Calibration 2     81,651
Calibration 3     80,992
ssj_ops@calibrated=81,322
100% 100.1% 81,322 81,374
90% 89.6% 73,190 72,858
80% 79.2% 65,057 64,399
70% 69.7% 56,925 56,692
60% 60.3% 48,793 49,034
50% 49.9% 40,661 40,557
40% 39.9% 32,529 32,418
30% 29.9% 24,397 24,326
20% 19.9% 16,264 16,184
10% 9.9% 8,132 8,041
Active Idle   0 0
Graph of results
JVM 'M520-06.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,442
Calibration 2     82,354
Calibration 3     81,390
ssj_ops@calibrated=81,872
100% 99.1% 81,872 81,097
90% 90.8% 73,685 74,342
80% 79.7% 65,498 65,215
70% 70.4% 57,310 57,628
60% 60.0% 49,123 49,096
50% 50.7% 40,936 41,545
40% 40.3% 32,749 32,972
30% 29.6% 24,562 24,207
20% 19.7% 16,374 16,128
10% 9.8% 8,187 8,050
Active Idle   0 0
Graph of results
JVM 'M520-06.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,798
Calibration 2     82,376
Calibration 3     82,153
ssj_ops@calibrated=82,265
100% 99.7% 82,265 82,042
90% 89.8% 74,038 73,841
80% 79.3% 65,812 65,234
70% 69.5% 57,585 57,212
60% 59.6% 49,359 49,023
50% 49.5% 41,132 40,715
40% 40.2% 32,906 33,053
30% 29.5% 24,679 24,249
20% 20.1% 16,453 16,514
10% 10.3% 8,226 8,475
Active Idle   0 0
Graph of results
JVM 'M520-06.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,402
Calibration 2     82,747
Calibration 3     82,806
ssj_ops@calibrated=82,776
100% 99.2% 82,776 82,155
90% 89.7% 74,499 74,281
80% 80.1% 66,221 66,271
70% 70.6% 57,944 58,401
60% 59.8% 49,666 49,502
50% 49.9% 41,388 41,316
40% 39.7% 33,111 32,892
30% 29.4% 24,833 24,338
20% 20.1% 16,555 16,649
10% 10.2% 8,278 8,416
Active Idle   0 0
Graph of results
JVM 'M520-06.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,402
Calibration 2     82,761
Calibration 3     82,709
ssj_ops@calibrated=82,735
100% 98.9% 82,735 81,845
90% 90.0% 74,461 74,435
80% 79.9% 66,188 66,109
70% 69.1% 57,914 57,146
60% 60.7% 49,641 50,193
50% 50.2% 41,367 41,535
40% 39.6% 33,094 32,764
30% 30.2% 24,820 25,024
20% 20.0% 16,547 16,521
10% 9.9% 8,273 8,162
Active Idle   0 0
Graph of results
JVM 'M520-06.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,880
Calibration 2     82,316
Calibration 3     82,007
ssj_ops@calibrated=82,162
100% 99.3% 82,162 81,604
90% 89.8% 73,946 73,786
80% 80.9% 65,729 66,468
70% 70.0% 57,513 57,507
60% 59.3% 49,297 48,700
50% 50.3% 41,081 41,323
40% 39.2% 32,865 32,176
30% 29.6% 24,649 24,289
20% 19.2% 16,432 15,782
10% 9.8% 8,216 8,087
Active Idle   0 0
Graph of results
JVM 'M520-06.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,002
Calibration 2     83,331
Calibration 3     83,500
ssj_ops@calibrated=83,415
100% 99.2% 83,415 82,730
90% 90.2% 75,074 75,221
80% 80.2% 66,732 66,907
70% 70.0% 58,391 58,429
60% 59.1% 50,049 49,300
50% 50.2% 41,708 41,855
40% 39.7% 33,366 33,157
30% 30.2% 25,025 25,176
20% 20.1% 16,683 16,793
10% 9.7% 8,342 8,050
Active Idle   0 0
Graph of results
JVM 'M520-06.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,967
Calibration 2     80,421
Calibration 3     81,114
ssj_ops@calibrated=80,767
100% 99.8% 80,767 80,632
90% 89.2% 72,691 72,026
80% 78.9% 64,614 63,735
70% 69.2% 56,537 55,901
60% 59.7% 48,460 48,207
50% 50.6% 40,384 40,841
40% 39.2% 32,307 31,681
30% 30.1% 24,230 24,351
20% 20.2% 16,153 16,307
10% 9.8% 8,077 7,916
Active Idle   0 0
Graph of results
JVM 'M520-06.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,287
Calibration 2     81,075
Calibration 3     81,061
ssj_ops@calibrated=81,068
100% 99.3% 81,068 80,534
90% 89.6% 72,961 72,612
80% 81.1% 64,854 65,775
70% 69.2% 56,748 56,075
60% 60.0% 48,641 48,648
50% 50.7% 40,534 41,104
40% 39.5% 32,427 32,030
30% 30.1% 24,320 24,389
20% 19.4% 16,214 15,741
10% 9.8% 8,107 7,943
Active Idle   0 0
Graph of results
JVM 'M520-06.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,945
Calibration 2     82,361
Calibration 3     82,664
ssj_ops@calibrated=82,512
100% 99.7% 82,512 82,265
90% 90.3% 74,261 74,510
80% 79.5% 66,010 65,632
70% 70.3% 57,759 58,012
60% 59.4% 49,507 49,044
50% 49.9% 41,256 41,174
40% 40.2% 33,005 33,153
30% 30.0% 24,754 24,724
20% 19.6% 16,502 16,199
10% 10.2% 8,251 8,404
Active Idle   0 0
Graph of results
JVM 'M520-06.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,197
Calibration 2     81,130
Calibration 3     80,691
ssj_ops@calibrated=80,911
100% 99.6% 80,911 80,563
90% 90.3% 72,819 73,079
80% 79.5% 64,728 64,325
70% 69.8% 56,637 56,496
60% 59.3% 48,546 47,950
50% 50.1% 40,455 40,522
40% 39.6% 32,364 32,018
30% 29.9% 24,273 24,176
20% 20.2% 16,182 16,370
10% 10.0% 8,091 8,107
Active Idle   0 0
Graph of results
JVM 'M520-06.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,809
Calibration 2     83,624
Calibration 3     83,702
ssj_ops@calibrated=83,663
100% 99.3% 83,663 83,065
90% 90.0% 75,297 75,264
80% 79.7% 66,930 66,708
70% 71.0% 58,564 59,412
60% 59.6% 50,198 49,877
50% 50.5% 41,831 42,244
40% 40.3% 33,465 33,715
30% 30.7% 25,099 25,674
20% 20.1% 16,733 16,846
10% 9.7% 8,366 8,104
Active Idle   0 0
Graph of results
JVM 'M520-06.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,157
Calibration 2     82,579
Calibration 3     82,906
ssj_ops@calibrated=82,743
100% 99.6% 82,743 82,376
90% 90.3% 74,468 74,749
80% 80.0% 66,194 66,177
70% 70.5% 57,920 58,339
60% 60.7% 49,646 50,263
50% 50.4% 41,371 41,681
40% 40.3% 33,097 33,309
30% 29.6% 24,823 24,476
20% 20.5% 16,549 16,935
10% 9.9% 8,274 8,154
Active Idle   0 0
Graph of results
JVM 'M520-06.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,455
Calibration 2     81,151
Calibration 3     81,824
ssj_ops@calibrated=81,487
100% 100.3% 81,487 81,733
90% 90.1% 73,339 73,409
80% 80.0% 65,190 65,188
70% 71.0% 57,041 57,817
60% 59.4% 48,892 48,376
50% 50.1% 40,744 40,858
40% 40.7% 32,595 33,159
30% 30.2% 24,446 24,598
20% 19.6% 16,297 15,980
10% 10.2% 8,149 8,291
Active Idle   0 0
Graph of results
