Dell Inc. PowerEdge M520 ssj_ops@100% = 1,310,695
ssj_ops@100% per JVM = 81,918
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,315,129
Calibration 2     1,319,332
Calibration 3     1,322,239
ssj_ops@calibrated=1,320,785
100% 99.2% 1,320,785 1,310,695
90% 90.0% 1,188,707 1,188,490
80% 80.3% 1,056,628 1,060,930
70% 70.1% 924,550 926,002
60% 59.9% 792,471 791,130
50% 49.8% 660,393 657,189
40% 39.8% 528,314 526,303
30% 30.1% 396,236 397,295
20% 20.0% 264,157 263,728
10% 10.1% 132,079 132,808
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Broadcom Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 0.4.3
Management Firmware Version: iDRAC7 1.10 Build 14
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-07.001 82,254
M520-07.002 82,845
M520-07.003 82,542
M520-07.004 81,051
M520-07.005 82,700
M520-07.006 82,540
M520-07.007 83,190
M520-07.008 83,377
M520-07.009 81,696
M520-07.010 81,814
M520-07.011 81,024
M520-07.012 81,598
M520-07.013 81,465
M520-07.014 80,495
M520-07.015 80,594
M520-07.016 81,509
ssj_ops@100% 1,310,695
ssj_ops@100% per JVM 81,918

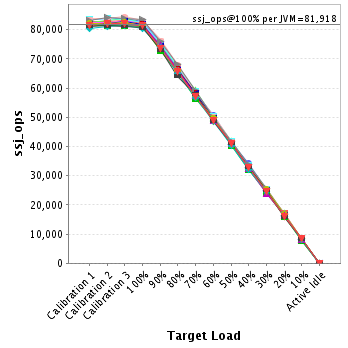

Graph of per-instance results
JVM 'M520-07.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,910
Calibration 2     82,700
Calibration 3     83,263
ssj_ops@calibrated=82,982
100% 99.1% 82,982 82,254
90% 89.3% 74,684 74,074
80% 80.4% 66,385 66,752
70% 69.2% 58,087 57,451
60% 60.5% 49,789 50,170
50% 50.0% 41,491 41,506
40% 39.7% 33,193 32,915
30% 29.5% 24,895 24,494
20% 20.7% 16,596 17,163
10% 10.3% 8,298 8,511
Active Idle   0 0
Graph of results
JVM 'M520-07.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,617
Calibration 2     83,682
Calibration 3     83,826
ssj_ops@calibrated=83,754
100% 98.9% 83,754 82,845
90% 90.1% 75,379 75,498
80% 79.6% 67,003 66,664
70% 69.9% 58,628 58,560
60% 60.2% 50,253 50,458
50% 49.3% 41,877 41,300
40% 40.6% 33,502 34,024
30% 30.0% 25,126 25,118
20% 19.8% 16,751 16,575
10% 9.9% 8,375 8,283
Active Idle   0 0
Graph of results

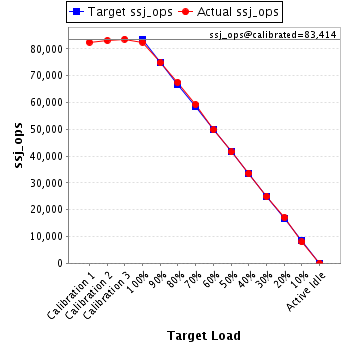

JVM 'M520-07.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,576
Calibration 2     83,167
Calibration 3     83,660
ssj_ops@calibrated=83,414
100% 99.0% 83,414 82,542
90% 89.7% 75,072 74,860
80% 81.0% 66,731 67,552
70% 71.1% 58,389 59,282
60% 59.7% 50,048 49,776
50% 49.8% 41,707 41,553
40% 40.2% 33,365 33,551
30% 30.0% 25,024 24,987
20% 20.5% 16,683 17,116
10% 9.5% 8,341 7,950
Active Idle   0 0
Graph of results
JVM 'M520-07.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,437
Calibration 2     81,821
Calibration 3     81,675
ssj_ops@calibrated=81,748
100% 99.1% 81,748 81,051
90% 89.2% 73,573 72,897
80% 80.4% 65,398 65,733
70% 69.9% 57,224 57,126
60% 59.3% 49,049 48,483
50% 50.6% 40,874 41,370
40% 39.8% 32,699 32,498
30% 30.9% 24,524 25,248
20% 19.7% 16,350 16,107
10% 10.3% 8,175 8,399
Active Idle   0 0
Graph of results

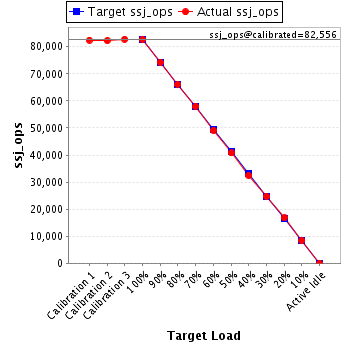

JVM 'M520-07.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,500
Calibration 2     82,294
Calibration 3     82,818
ssj_ops@calibrated=82,556
100% 100.2% 82,556 82,700
90% 90.1% 74,300 74,346
80% 80.1% 66,045 66,111
70% 70.2% 57,789 57,968
60% 59.4% 49,534 49,017
50% 49.4% 41,278 40,767
40% 39.3% 33,022 32,416
30% 30.0% 24,767 24,782
20% 20.3% 16,511 16,772
10% 10.2% 8,256 8,387
Active Idle   0 0
Graph of results

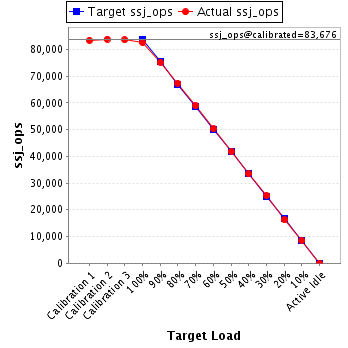

JVM 'M520-07.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,362
Calibration 2     83,809
Calibration 3     83,542
ssj_ops@calibrated=83,676
100% 98.6% 83,676 82,540
90% 89.8% 75,308 75,158
80% 80.5% 66,941 67,346
70% 70.4% 58,573 58,942
60% 60.0% 50,205 50,228
50% 49.9% 41,838 41,767
40% 40.0% 33,470 33,433
30% 30.3% 25,103 25,346
20% 19.4% 16,735 16,259
10% 10.2% 8,368 8,527
Active Idle   0 0
Graph of results
JVM 'M520-07.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,771
Calibration 2     83,866
Calibration 3     84,565
ssj_ops@calibrated=84,216
100% 98.8% 84,216 83,190
90% 90.8% 75,794 76,483
80% 81.0% 67,373 68,223
70% 69.3% 58,951 58,371
60% 59.9% 50,530 50,465
50% 49.5% 42,108 41,726
40% 39.4% 33,686 33,200
30% 30.0% 25,265 25,290
20% 20.2% 16,843 16,973
10% 9.5% 8,422 8,004
Active Idle   0 0
Graph of results
JVM 'M520-07.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,113
Calibration 2     84,062
Calibration 3     83,766
ssj_ops@calibrated=83,914
100% 99.4% 83,914 83,377
90% 90.5% 75,523 75,951
80% 81.2% 67,131 68,099
70% 70.4% 58,740 59,052
60% 59.5% 50,348 49,900
50% 49.7% 41,957 41,666
40% 40.3% 33,566 33,816
30% 30.7% 25,174 25,769
20% 20.0% 16,783 16,780
10% 9.9% 8,391 8,328
Active Idle   0 0
Graph of results
JVM 'M520-07.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,872
Calibration 2     81,867
Calibration 3     82,202
ssj_ops@calibrated=82,034
100% 99.6% 82,034 81,696
90% 89.7% 73,831 73,581
80% 80.8% 65,628 66,273
70% 70.9% 57,424 58,154
60% 59.6% 49,221 48,925
50% 49.4% 41,017 40,543
40% 40.0% 32,814 32,782
30% 29.7% 24,610 24,333
20% 20.1% 16,407 16,457
10% 10.3% 8,203 8,412
Active Idle   0 0
Graph of results
JVM 'M520-07.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,767
Calibration 2     82,011
Calibration 3     82,685
ssj_ops@calibrated=82,348
100% 99.4% 82,348 81,814
90% 90.3% 74,113 74,386
80% 80.4% 65,878 66,174
70% 70.5% 57,643 58,026
60% 60.4% 49,409 49,714
50% 49.3% 41,174 40,606
40% 39.6% 32,939 32,649
30% 30.2% 24,704 24,840
20% 20.0% 16,470 16,474
10% 10.1% 8,235 8,295
Active Idle   0 0
Graph of results
JVM 'M520-07.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,453
Calibration 2     81,357
Calibration 3     81,540
ssj_ops@calibrated=81,448
100% 99.5% 81,448 81,024
90% 89.3% 73,303 72,770
80% 80.1% 65,159 65,230
70% 69.4% 57,014 56,565
60% 60.4% 48,869 49,199
50% 49.5% 40,724 40,315
40% 39.4% 32,579 32,092
30% 29.9% 24,434 24,351
20% 19.8% 16,290 16,122
10% 9.8% 8,145 7,954
Active Idle   0 0
Graph of results
JVM 'M520-07.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,049
Calibration 2     82,166
Calibration 3     82,457
ssj_ops@calibrated=82,312
100% 99.1% 82,312 81,598
90% 89.6% 74,080 73,752
80% 80.2% 65,849 66,018
70% 69.7% 57,618 57,374
60% 60.4% 49,387 49,695
50% 49.5% 41,156 40,706
40% 39.9% 32,925 32,876
30% 30.5% 24,693 25,135
20% 20.5% 16,462 16,841
10% 10.3% 8,231 8,508
Active Idle   0 0
Graph of results
JVM 'M520-07.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,442
Calibration 2     82,113
Calibration 3     81,638
ssj_ops@calibrated=81,876
100% 99.5% 81,876 81,465
90% 90.9% 73,688 74,430
80% 80.6% 65,501 66,003
70% 70.3% 57,313 57,534
60% 59.8% 49,125 48,927
50% 50.1% 40,938 40,995
40% 39.5% 32,750 32,308
30% 29.0% 24,563 23,728
20% 19.8% 16,375 16,201
10% 10.1% 8,188 8,241
Active Idle   0 0
Graph of results
JVM 'M520-07.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,463
Calibration 2     80,988
Calibration 3     81,399
ssj_ops@calibrated=81,194
100% 99.1% 81,194 80,495
90% 90.9% 73,074 73,775
80% 79.9% 64,955 64,858
70% 69.7% 56,836 56,612
60% 59.8% 48,716 48,561
50% 49.8% 40,597 40,469
40% 39.4% 32,477 31,967
30% 30.1% 24,358 24,476
20% 19.7% 16,239 16,028
10% 10.1% 8,119 8,216
Active Idle   0 0
Graph of results
JVM 'M520-07.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,238
Calibration 2     81,409
Calibration 3     81,179
ssj_ops@calibrated=81,294
100% 99.1% 81,294 80,594
90% 89.9% 73,165 73,076
80% 78.9% 65,035 64,127
70% 71.2% 56,906 57,879
60% 59.8% 48,776 48,587
50% 50.5% 40,647 41,025
40% 40.7% 32,518 33,074
30% 30.7% 24,388 24,973
20% 19.4% 16,259 15,778
10% 10.3% 8,129 8,391
Active Idle   0 0
Graph of results
JVM 'M520-07.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,560
Calibration 2     82,018
Calibration 3     82,024
ssj_ops@calibrated=82,021
100% 99.4% 82,021 81,509
90% 89.6% 73,819 73,452
80% 80.2% 65,617 65,768
70% 69.6% 57,415 57,105
60% 59.8% 49,213 49,025
50% 49.8% 41,010 40,877
40% 39.9% 32,808 32,702
30% 29.8% 24,606 24,424
20% 19.6% 16,404 16,082
10% 10.2% 8,202 8,404
Active Idle   0 0
Graph of results
