Dell Inc. PowerEdge M520 ssj_ops@100% = 1,292,459
ssj_ops@100% per JVM = 80,779
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,307,107
Calibration 2     1,302,284
Calibration 3     1,300,957
ssj_ops@calibrated=1,301,621
100% 99.3% 1,301,621 1,292,459
90% 90.1% 1,171,459 1,173,118
80% 80.0% 1,041,297 1,041,418
70% 69.9% 911,134 909,550
60% 59.9% 780,972 780,167
50% 50.1% 650,810 651,674
40% 39.9% 520,648 518,796
30% 30.0% 390,486 390,966
20% 19.9% 260,324 258,622
10% 9.9% 130,162 129,243
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Broadcom Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 0.4.3
Management Firmware Version: iDRAC7 1.10 Build 14
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-09.001 79,939
M520-09.002 82,099
M520-09.003 80,569
M520-09.004 80,001
M520-09.005 79,925
M520-09.006 81,130
M520-09.007 81,511
M520-09.008 80,035
M520-09.009 80,411
M520-09.010 80,132
M520-09.011 81,359
M520-09.012 80,753
M520-09.013 81,150
M520-09.014 81,592
M520-09.015 80,099
M520-09.016 81,753
ssj_ops@100% 1,292,459
ssj_ops@100% per JVM 80,779

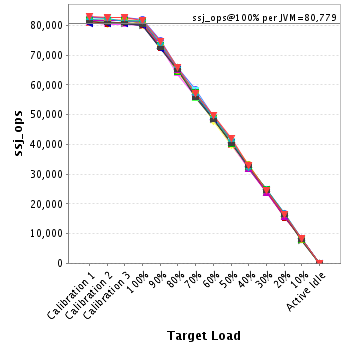

Graph of per-instance results
JVM 'M520-09.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,837
Calibration 2     80,538
Calibration 3     80,701
ssj_ops@calibrated=80,619
100% 99.2% 80,619 79,939
90% 90.4% 72,557 72,851
80% 79.8% 64,495 64,366
70% 70.4% 56,433 56,716
60% 60.3% 48,371 48,575
50% 49.4% 40,310 39,831
40% 39.8% 32,248 32,110
30% 30.0% 24,186 24,223
20% 20.2% 16,124 16,271
10% 9.8% 8,062 7,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-09.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,719
Calibration 2     82,564
Calibration 3     82,682
ssj_ops@calibrated=82,623
100% 99.4% 82,623 82,099
90% 90.5% 74,361 74,791
80% 79.6% 66,098 65,763
70% 70.7% 57,836 58,383
60% 59.6% 49,574 49,228
50% 49.8% 41,312 41,156
40% 39.4% 33,049 32,565
30% 30.1% 24,787 24,900
20% 20.2% 16,525 16,730
10% 10.3% 8,262 8,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-09.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,431
Calibration 2     81,099
Calibration 3     80,596
ssj_ops@calibrated=80,848
100% 99.7% 80,848 80,569
90% 90.6% 72,763 73,255
80% 81.3% 64,678 65,722
70% 69.1% 56,593 55,856
60% 59.9% 48,509 48,440
50% 50.5% 40,424 40,790
40% 40.4% 32,339 32,632
30% 30.2% 24,254 24,383
20% 19.7% 16,170 15,954
10% 9.7% 8,085 7,862
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-09.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,546
Calibration 2     80,365
Calibration 3     80,735
ssj_ops@calibrated=80,550
100% 99.3% 80,550 80,001
90% 90.1% 72,495 72,569
80% 79.5% 64,440 64,041
70% 70.4% 56,385 56,690
60% 59.2% 48,330 47,700
50% 49.2% 40,275 39,644
40% 40.0% 32,220 32,190
30% 29.9% 24,165 24,096
20% 19.7% 16,110 15,896
10% 9.8% 8,055 7,879
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-09.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,871
Calibration 2     80,238
Calibration 3     80,302
ssj_ops@calibrated=80,270
100% 99.6% 80,270 79,925
90% 90.7% 72,243 72,812
80% 79.1% 64,216 63,511
70% 69.8% 56,189 56,012
60% 60.5% 48,162 48,570
50% 49.7% 40,135 39,930
40% 39.8% 32,108 31,913
30% 30.1% 24,081 24,137
20% 20.1% 16,054 16,116
10% 10.1% 8,027 8,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-09.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,728
Calibration 2     81,881
Calibration 3     81,612
ssj_ops@calibrated=81,746
100% 99.2% 81,746 81,130
90% 90.0% 73,572 73,580
80% 79.7% 65,397 65,178
70% 70.9% 57,222 57,997
60% 59.9% 49,048 48,955
50% 50.0% 40,873 40,888
40% 39.9% 32,699 32,577
30% 30.3% 24,524 24,732
20% 19.8% 16,349 16,174
10% 10.0% 8,175 8,141
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-09.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,155
Calibration 2     82,116
Calibration 3     82,109
ssj_ops@calibrated=82,113
100% 99.3% 82,113 81,511
90% 90.6% 73,902 74,424
80% 80.1% 65,690 65,801
70% 69.1% 57,479 56,752
60% 59.8% 49,268 49,106
50% 49.6% 41,056 40,765
40% 39.9% 32,845 32,745
30% 29.8% 24,634 24,436
20% 19.9% 16,423 16,326
10% 9.8% 8,211 8,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-09.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,973
Calibration 2     81,314
Calibration 3     80,679
ssj_ops@calibrated=80,997
100% 98.8% 80,997 80,035
90% 90.6% 72,897 73,379
80% 80.4% 64,797 65,119
70% 69.6% 56,698 56,399
60% 59.9% 48,598 48,509
50% 50.0% 40,498 40,525
40% 39.6% 32,399 32,111
30% 29.9% 24,299 24,230
20% 19.8% 16,199 16,008
10% 9.5% 8,100 7,712
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-09.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,372
Calibration 2     80,617
Calibration 3     80,893
ssj_ops@calibrated=80,755
100% 99.6% 80,755 80,411
90% 90.0% 72,680 72,693
80% 80.7% 64,604 65,140
70% 69.8% 56,529 56,386
60% 60.9% 48,453 49,171
50% 51.0% 40,378 41,219
40% 39.5% 32,302 31,887
30% 29.9% 24,227 24,154
20% 19.1% 16,151 15,458
10% 10.3% 8,076 8,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-09.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,792
Calibration 2     80,705
Calibration 3     80,701
ssj_ops@calibrated=80,703
100% 99.3% 80,703 80,132
90% 89.5% 72,633 72,228
80% 80.8% 64,562 65,219
70% 70.3% 56,492 56,772
60% 60.0% 48,422 48,461
50% 50.4% 40,352 40,635
40% 40.4% 32,281 32,629
30% 30.7% 24,211 24,765
20% 19.6% 16,141 15,802
10% 10.3% 8,070 8,294
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-09.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,719
Calibration 2     81,757
Calibration 3     81,782
ssj_ops@calibrated=81,770
100% 99.5% 81,770 81,359
90% 89.5% 73,593 73,199
80% 79.1% 65,416 64,675
70% 70.2% 57,239 57,419
60% 59.4% 49,062 48,601
50% 49.3% 40,885 40,320
40% 39.8% 32,708 32,560
30% 30.3% 24,531 24,759
20% 20.0% 16,354 16,320
10% 9.7% 8,177 7,950
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-09.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,782
Calibration 2     81,513
Calibration 3     81,588
ssj_ops@calibrated=81,550
100% 99.0% 81,550 80,753
90% 89.6% 73,395 73,103
80% 79.4% 65,240 64,764
70% 70.1% 57,085 57,152
60% 60.2% 48,930 49,091
50% 50.2% 40,775 40,928
40% 40.8% 32,620 33,244
30% 30.2% 24,465 24,625
20% 19.8% 16,310 16,150
10% 9.7% 8,155 7,896
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-09.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,782
Calibration 2     81,538
Calibration 3     81,718
ssj_ops@calibrated=81,628
100% 99.4% 81,628 81,150
90% 89.7% 73,465 73,218
80% 80.0% 65,303 65,265
70% 70.4% 57,140 57,474
60% 60.0% 48,977 48,956
50% 50.7% 40,814 41,418
40% 39.2% 32,651 32,025
30% 29.2% 24,488 23,850
20% 19.4% 16,326 15,825
10% 10.2% 8,163 8,312
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-09.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,049
Calibration 2     82,510
Calibration 3     81,496
ssj_ops@calibrated=82,003
100% 99.5% 82,003 81,592
90% 90.2% 73,803 73,974
80% 80.2% 65,602 65,738
70% 69.3% 57,402 56,808
60% 59.6% 49,202 48,873
50% 50.5% 41,001 41,375
40% 39.3% 32,801 32,220
30% 30.3% 24,601 24,868
20% 20.6% 16,401 16,865
10% 10.2% 8,200 8,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

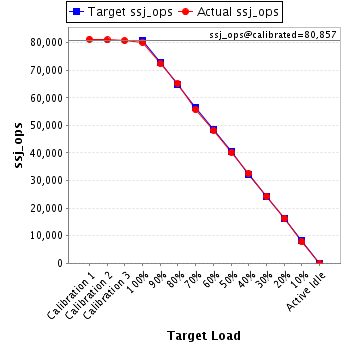

JVM 'M520-09.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,277
Calibration 2     80,990
Calibration 3     80,723
ssj_ops@calibrated=80,857
100% 99.1% 80,857 80,099
90% 89.5% 72,771 72,395
80% 80.5% 64,686 65,096
70% 68.9% 56,600 55,735
60% 59.7% 48,514 48,261
50% 49.8% 40,428 40,238
40% 40.3% 32,343 32,602
30% 30.1% 24,257 24,376
20% 20.1% 16,171 16,261
10% 9.6% 8,086 7,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-09.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,073
Calibration 2     82,538
Calibration 3     82,639
ssj_ops@calibrated=82,589
100% 99.0% 82,589 81,753
90% 90.4% 74,330 74,648
80% 79.9% 66,071 66,020
70% 69.0% 57,812 57,000
60% 60.1% 49,553 49,670
50% 50.9% 41,294 42,012
40% 39.7% 33,035 32,785
30% 29.6% 24,777 24,433
20% 19.9% 16,518 16,467
10% 9.9% 8,259 8,167
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
