Dell Inc. PowerEdge M520 ssj_ops@100% = 1,310,632
ssj_ops@100% per JVM = 81,914
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,322,009
Calibration 2     1,321,409
Calibration 3     1,325,900
ssj_ops@calibrated=1,323,655
100% 99.0% 1,323,655 1,310,632
90% 90.0% 1,191,289 1,191,160
80% 79.9% 1,058,924 1,057,661
70% 70.1% 926,558 927,843
60% 60.1% 794,193 794,922
50% 49.8% 661,827 659,113
40% 39.8% 529,462 527,471
30% 29.9% 397,096 396,098
20% 20.0% 264,731 264,670
10% 10.0% 132,365 132,637
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Broadcom Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 0.4.3
Management Firmware Version: iDRAC7 1.10 Build 14
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-11.001 82,235
M520-11.002 81,811
M520-11.003 82,694
M520-11.004 81,585
M520-11.005 81,858
M520-11.006 82,594
M520-11.007 83,192
M520-11.008 83,717
M520-11.009 80,714
M520-11.010 80,941
M520-11.011 81,607
M520-11.012 81,102
M520-11.013 81,097
M520-11.014 81,899
M520-11.015 81,747
M520-11.016 81,839
ssj_ops@100% 1,310,632
ssj_ops@100% per JVM 81,914

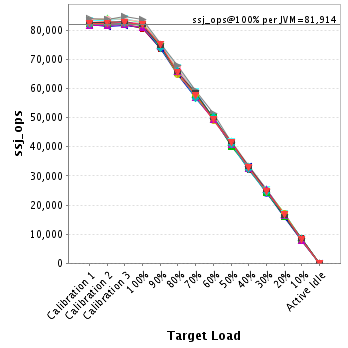

Graph of per-instance results
JVM 'M520-11.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,721
Calibration 2     83,034
Calibration 3     82,836
ssj_ops@calibrated=82,935
100% 99.2% 82,935 82,235
90% 89.9% 74,641 74,549
80% 80.1% 66,348 66,425
70% 70.2% 58,054 58,227
60% 59.4% 49,761 49,287
50% 50.2% 41,467 41,619
40% 40.2% 33,174 33,321
30% 29.3% 24,880 24,323
20% 19.9% 16,587 16,492
10% 10.2% 8,293 8,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,514
Calibration 2     82,070
Calibration 3     83,131
ssj_ops@calibrated=82,600
100% 99.0% 82,600 81,811
90% 89.5% 74,340 73,920
80% 80.0% 66,080 66,108
70% 71.3% 57,820 58,896
60% 60.3% 49,560 49,769
50% 49.6% 41,300 41,005
40% 39.9% 33,040 32,976
30% 29.1% 24,780 24,069
20% 20.6% 16,520 17,014
10% 9.9% 8,260 8,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,319
Calibration 2     84,096
Calibration 3     83,746
ssj_ops@calibrated=83,921
100% 98.5% 83,921 82,694
90% 89.7% 75,529 75,239
80% 78.8% 67,137 66,092
70% 69.6% 58,745 58,417
60% 58.9% 50,353 49,440
50% 49.9% 41,961 41,879
40% 39.6% 33,569 33,226
30% 30.1% 25,176 25,265
20% 19.8% 16,784 16,639
10% 10.2% 8,392 8,558
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,490
Calibration 2     82,060
Calibration 3     82,822
ssj_ops@calibrated=82,441
100% 99.0% 82,441 81,585
90% 90.1% 74,197 74,308
80% 80.5% 65,953 66,358
70% 70.3% 57,709 57,995
60% 60.1% 49,465 49,555
50% 49.8% 41,220 41,064
40% 39.3% 32,976 32,385
30% 29.8% 24,732 24,558
20% 20.3% 16,488 16,724
10% 10.2% 8,244 8,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,612
Calibration 2     82,126
Calibration 3     83,021
ssj_ops@calibrated=82,573
100% 99.1% 82,573 81,858
90% 89.4% 74,316 73,818
80% 80.2% 66,059 66,244
70% 70.2% 57,801 57,964
60% 60.0% 49,544 49,531
50% 49.6% 41,287 40,924
40% 40.1% 33,029 33,122
30% 30.0% 24,772 24,744
20% 19.9% 16,515 16,447
10% 10.3% 8,257 8,466
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,256
Calibration 2     83,417
Calibration 3     84,018
ssj_ops@calibrated=83,717
100% 98.7% 83,717 82,594
90% 89.6% 75,346 75,020
80% 80.1% 66,974 67,068
70% 70.4% 58,602 58,965
60% 59.2% 50,230 49,548
50% 50.0% 41,859 41,852
40% 39.9% 33,487 33,404
30% 30.4% 25,115 25,481
20% 20.3% 16,743 17,010
10% 10.0% 8,372 8,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,729
Calibration 2     84,178
Calibration 3     83,681
ssj_ops@calibrated=83,930
100% 99.1% 83,930 83,192
90% 88.6% 75,537 74,337
80% 80.3% 67,144 67,388
70% 69.5% 58,751 58,342
60% 58.8% 50,358 49,388
50% 49.7% 41,965 41,742
40% 39.8% 33,572 33,408
30% 30.0% 25,179 25,188
20% 19.6% 16,786 16,428
10% 9.6% 8,393 8,091
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,990
Calibration 2     83,876
Calibration 3     84,807
ssj_ops@calibrated=84,342
100% 99.3% 84,342 83,717
90% 89.5% 75,907 75,451
80% 80.4% 67,473 67,837
70% 70.3% 59,039 59,326
60% 60.8% 50,605 51,277
50% 49.1% 42,171 41,442
40% 39.8% 33,737 33,577
30% 30.0% 25,302 25,290
20% 20.0% 16,868 16,893
10% 10.1% 8,434 8,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,279
Calibration 2     82,222
Calibration 3     82,042
ssj_ops@calibrated=82,132
100% 98.3% 82,132 80,714
90% 89.7% 73,919 73,663
80% 80.2% 65,706 65,910
70% 69.4% 57,493 56,985
60% 60.1% 49,279 49,381
50% 50.0% 41,066 41,095
40% 39.3% 32,853 32,255
30% 30.0% 24,640 24,648
20% 20.1% 16,426 16,527
10% 10.5% 8,213 8,629
Active Idle   0 0

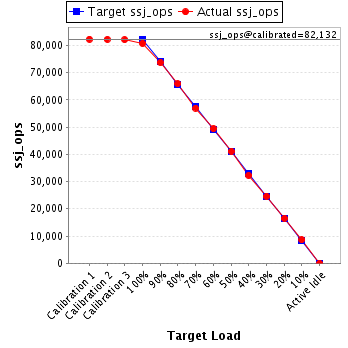

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,003
Calibration 2     81,321
Calibration 3     81,543
ssj_ops@calibrated=81,432
100% 99.4% 81,432 80,941
90% 90.7% 73,289 73,846
80% 79.7% 65,146 64,886
70% 70.0% 57,002 57,039
60% 61.0% 48,859 49,707
50% 49.7% 40,716 40,436
40% 40.7% 32,573 33,104
30% 29.6% 24,430 24,145
20% 19.3% 16,286 15,733
10% 9.8% 8,143 7,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,413
Calibration 2     81,633
Calibration 3     82,284
ssj_ops@calibrated=81,959
100% 99.6% 81,959 81,607
90% 90.8% 73,763 74,421
80% 79.8% 65,567 65,428
70% 70.7% 57,371 57,974
60% 61.1% 49,175 50,105
50% 49.0% 40,979 40,185
40% 40.0% 32,784 32,787
30% 29.6% 24,588 24,270
20% 19.7% 16,392 16,157
10% 9.5% 8,196 7,807
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,042
Calibration 2     82,403
Calibration 3     82,122
ssj_ops@calibrated=82,262
100% 98.6% 82,262 81,102
90% 90.6% 74,036 74,511
80% 79.0% 65,810 64,989
70% 70.4% 57,584 57,909
60% 59.7% 49,357 49,104
50% 50.0% 41,131 41,110
40% 40.0% 32,905 32,901
30% 30.4% 24,679 24,987
20% 20.6% 16,452 16,930
10% 10.0% 8,226 8,265
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,596
Calibration 2     81,689
Calibration 3     81,868
ssj_ops@calibrated=81,778
100% 99.2% 81,778 81,097
90% 91.0% 73,600 74,454
80% 80.3% 65,423 65,698
70% 69.6% 57,245 56,886
60% 60.3% 49,067 49,288
50% 50.0% 40,889 40,882
40% 40.0% 32,711 32,707
30% 30.8% 24,533 25,194
20% 20.0% 16,356 16,345
10% 9.7% 8,178 7,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,143
Calibration 2     82,260
Calibration 3     82,436
ssj_ops@calibrated=82,348
100% 99.5% 82,348 81,899
90% 89.5% 74,113 73,732
80% 80.2% 65,878 66,038
70% 68.8% 57,643 56,661
60% 61.0% 49,409 50,248
50% 49.6% 41,174 40,870
40% 39.3% 32,939 32,349
30% 29.5% 24,704 24,304
20% 19.9% 16,470 16,359
10% 10.2% 8,235 8,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,666
Calibration 2     82,550
Calibration 3     82,910
ssj_ops@calibrated=82,730
100% 98.8% 82,730 81,747
90% 90.2% 74,457 74,611
80% 79.3% 66,184 65,601
70% 70.9% 57,911 58,685
60% 60.2% 49,638 49,772
50% 50.2% 41,365 41,492
40% 40.1% 33,092 33,160
30% 30.3% 24,819 25,033
20% 19.6% 16,546 16,227
10% 10.2% 8,273 8,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-11.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,236
Calibration 2     82,476
Calibration 3     82,631
ssj_ops@calibrated=82,553
100% 99.1% 82,553 81,839
90% 91.2% 74,298 75,280
80% 79.5% 66,043 65,590
70% 69.7% 57,787 57,574
60% 60.0% 49,532 49,522
50% 50.3% 41,277 41,516
40% 39.7% 33,021 32,790
30% 29.8% 24,766 24,599
20% 20.3% 16,511 16,747
10% 10.0% 8,255 8,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
