Dell Inc. PowerEdge M520 ssj_ops@100% = 1,292,503
ssj_ops@100% per JVM = 80,781
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,302,222
Calibration 2     1,304,157
Calibration 3     1,303,045
ssj_ops@calibrated=1,303,601
100% 99.1% 1,303,601 1,292,503
90% 89.8% 1,173,241 1,170,807
80% 79.9% 1,042,881 1,041,449
70% 69.7% 912,520 908,708
60% 60.0% 782,160 782,294
50% 50.2% 651,800 654,015
40% 40.1% 521,440 522,205
30% 30.0% 391,080 391,012
20% 20.0% 260,720 261,240
10% 10.0% 130,360 130,006
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Broadcom Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 0.4.3
Management Firmware Version: iDRAC7 1.10 Build 14
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-12.001 81,955
M520-12.002 81,989
M520-12.003 80,388
M520-12.004 80,948
M520-12.005 80,115
M520-12.006 80,437
M520-12.007 81,028
M520-12.008 81,306
M520-12.009 80,927
M520-12.010 80,517
M520-12.011 79,343
M520-12.012 79,754
M520-12.013 80,554
M520-12.014 80,931
M520-12.015 80,805
M520-12.016 81,505
ssj_ops@100% 1,292,503
ssj_ops@100% per JVM 80,781

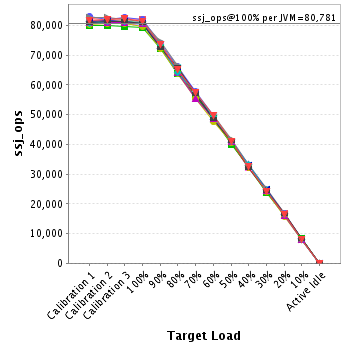

Graph of per-instance results
JVM 'M520-12.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,277
Calibration 2     82,055
Calibration 3     82,478
ssj_ops@calibrated=82,266
100% 99.6% 82,266 81,955
90% 89.4% 74,040 73,559
80% 80.2% 65,813 65,959
70% 69.8% 57,586 57,397
60% 59.5% 49,360 48,946
50% 49.2% 41,133 40,494
40% 39.7% 32,907 32,677
30% 30.1% 24,680 24,790
20% 20.2% 16,453 16,586
10% 10.1% 8,227 8,300
Active Idle   0 0
Graph of results
JVM 'M520-12.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,091
Calibration 2     82,154
Calibration 3     82,797
ssj_ops@calibrated=82,475
100% 99.4% 82,475 81,989
90% 89.7% 74,228 74,017
80% 80.2% 65,980 66,159
70% 70.0% 57,733 57,699
60% 60.4% 49,485 49,793
50% 49.5% 41,238 40,848
40% 39.4% 32,990 32,506
30% 29.8% 24,743 24,601
20% 20.1% 16,495 16,607
10% 9.9% 8,248 8,187
Active Idle   0 0
Graph of results
JVM 'M520-12.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,183
Calibration 2     81,463
Calibration 3     81,219
ssj_ops@calibrated=81,341
100% 98.8% 81,341 80,388
90% 90.1% 73,207 73,273
80% 80.0% 65,073 65,040
70% 69.8% 56,939 56,769
60% 59.7% 48,805 48,529
50% 50.3% 40,670 40,886
40% 39.8% 32,536 32,345
30% 29.3% 24,402 23,861
20% 20.1% 16,268 16,378
10% 9.8% 8,134 7,972
Active Idle   0 0
Graph of results
JVM 'M520-12.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,621
Calibration 2     81,750
Calibration 3     81,824
ssj_ops@calibrated=81,787
100% 99.0% 81,787 80,948
90% 90.0% 73,608 73,625
80% 79.4% 65,430 64,904
70% 69.5% 57,251 56,877
60% 60.4% 49,072 49,389
50% 50.4% 40,893 41,247
40% 40.0% 32,715 32,740
30% 29.9% 24,536 24,438
20% 20.0% 16,357 16,325
10% 10.0% 8,179 8,190
Active Idle   0 0
Graph of results
JVM 'M520-12.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,939
Calibration 2     80,753
Calibration 3     80,665
ssj_ops@calibrated=80,709
100% 99.3% 80,709 80,115
90% 91.2% 72,638 73,616
80% 79.6% 64,567 64,252
70% 71.0% 56,496 57,273
60% 60.5% 48,425 48,820
50% 50.4% 40,355 40,702
40% 39.5% 32,284 31,886
30% 30.4% 24,213 24,513
20% 19.9% 16,142 16,067
10% 9.9% 8,071 8,016
Active Idle   0 0
Graph of results
JVM 'M520-12.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,589
Calibration 2     81,618
Calibration 3     81,061
ssj_ops@calibrated=81,340
100% 98.9% 81,340 80,437
90% 88.7% 73,206 72,173
80% 81.0% 65,072 65,855
70% 69.6% 56,938 56,634
60% 60.9% 48,804 49,551
50% 50.4% 40,670 41,014
40% 40.3% 32,536 32,801
30% 30.4% 24,402 24,742
20% 19.9% 16,268 16,180
10% 10.0% 8,134 8,133
Active Idle   0 0
Graph of results
JVM 'M520-12.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,736
Calibration 2     81,732
Calibration 3     81,922
ssj_ops@calibrated=81,827
100% 99.0% 81,827 81,028
90% 89.7% 73,645 73,400
80% 79.9% 65,462 65,384
70% 69.0% 57,279 56,428
60% 59.3% 49,096 48,518
50% 50.7% 40,914 41,494
40% 40.3% 32,731 32,994
30% 29.7% 24,548 24,278
20% 20.0% 16,365 16,357
10% 9.8% 8,183 8,058
Active Idle   0 0

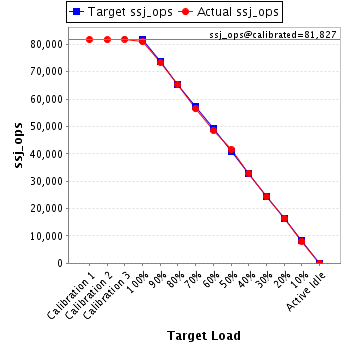

Graph of results
JVM 'M520-12.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,867
Calibration 2     82,663
Calibration 3     82,111
ssj_ops@calibrated=82,387
100% 98.7% 82,387 81,306
90% 90.4% 74,149 74,517
80% 80.7% 65,910 66,498
70% 68.6% 57,671 56,549
60% 60.2% 49,432 49,625
50% 50.7% 41,194 41,742
40% 40.2% 32,955 33,139
30% 30.7% 24,716 25,278
20% 20.3% 16,477 16,726
10% 9.9% 8,239 8,116
Active Idle   0 0
Graph of results
JVM 'M520-12.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,773
Calibration 2     81,400
Calibration 3     81,094
ssj_ops@calibrated=81,247
100% 99.6% 81,247 80,927
90% 89.7% 73,122 72,913
80% 79.9% 64,998 64,950
70% 69.5% 56,873 56,478
60% 59.3% 48,748 48,219
50% 49.8% 40,623 40,450
40% 39.9% 32,499 32,377
30% 30.1% 24,374 24,429
20% 20.4% 16,249 16,534
10% 10.1% 8,125 8,183
Active Idle   0 0
Graph of results
JVM 'M520-12.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,451
Calibration 2     81,833
Calibration 3     81,322
ssj_ops@calibrated=81,578
100% 98.7% 81,578 80,517
90% 88.6% 73,420 72,248
80% 80.2% 65,262 65,419
70% 70.5% 57,104 57,504
60% 59.2% 48,947 48,272
50% 49.6% 40,789 40,497
40% 40.2% 32,631 32,786
30% 30.3% 24,473 24,705
20% 20.0% 16,316 16,336
10% 10.1% 8,158 8,203
Active Idle   0 0
Graph of results
JVM 'M520-12.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,046
Calibration 2     79,992
Calibration 3     79,760
ssj_ops@calibrated=79,876
100% 99.3% 79,876 79,343
90% 90.3% 71,888 72,133
80% 79.8% 63,901 63,749
70% 70.5% 55,913 56,273
60% 60.8% 47,926 48,576
50% 50.0% 39,938 39,933
40% 40.6% 31,950 32,410
30% 29.9% 23,963 23,852
20% 19.9% 15,975 15,924
10% 10.3% 7,988 8,240
Active Idle   0 0
Graph of results
JVM 'M520-12.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,476
Calibration 2     80,647
Calibration 3     80,742
ssj_ops@calibrated=80,695
100% 98.8% 80,695 79,754
90% 89.5% 72,625 72,242
80% 79.3% 64,556 64,005
70% 68.6% 56,486 55,343
60% 59.0% 48,417 47,577
50% 50.2% 40,347 40,513
40% 40.1% 32,278 32,340
30% 29.8% 24,208 24,031
20% 19.7% 16,139 15,863
10% 10.1% 8,069 8,150
Active Idle   0 0
Graph of results
JVM 'M520-12.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,974
Calibration 2     81,165
Calibration 3     81,015
ssj_ops@calibrated=81,090
100% 99.3% 81,090 80,554
90% 90.3% 72,981 73,190
80% 79.1% 64,872 64,130
70% 68.5% 56,763 55,539
60% 60.2% 48,654 48,795
50% 50.6% 40,545 41,023
40% 41.0% 32,436 33,248
30% 30.0% 24,327 24,324
20% 19.7% 16,218 15,995
10% 9.8% 8,109 7,958
Active Idle   0 0
Graph of results
JVM 'M520-12.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,693
Calibration 2     81,488
Calibration 3     81,349
ssj_ops@calibrated=81,418
100% 99.4% 81,418 80,931
90% 90.5% 73,276 73,676
80% 78.7% 65,135 64,107
70% 70.6% 56,993 57,479
60% 60.8% 48,851 49,478
50% 50.3% 40,709 40,933
40% 40.6% 32,567 33,069
30% 30.3% 24,425 24,630
20% 20.0% 16,284 16,274
10% 9.8% 8,142 7,966
Active Idle   0 0
Graph of results
JVM 'M520-12.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,907
Calibration 2     81,452
Calibration 3     81,361
ssj_ops@calibrated=81,406
100% 99.3% 81,406 80,805
90% 89.1% 73,266 72,557
80% 81.0% 65,125 65,958
70% 70.1% 56,984 57,050
60% 59.5% 48,844 48,404
50% 50.5% 40,703 41,142
40% 39.6% 32,563 32,216
30% 29.8% 24,422 24,231
20% 20.4% 16,281 16,607
10% 10.1% 8,141 8,208
Active Idle   0 0
Graph of results
JVM 'M520-12.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,600
Calibration 2     81,993
Calibration 3     82,323
ssj_ops@calibrated=82,158
100% 99.2% 82,158 81,505
90% 89.7% 73,942 73,670
80% 79.2% 65,727 65,080
70% 69.9% 57,511 57,415
60% 60.6% 49,295 49,804
50% 50.0% 41,079 41,098
40% 39.8% 32,863 32,672
30% 29.6% 24,647 24,310
20% 20.1% 16,432 16,480
10% 9.9% 8,216 8,127
Active Idle   0 0
Graph of results
