Dell Inc. PowerEdge M520 ssj_ops@100% = 1,302,583
ssj_ops@100% per JVM = 81,411
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,309,142
Calibration 2     1,312,939
Calibration 3     1,312,581
ssj_ops@calibrated=1,312,760
100% 99.2% 1,312,760 1,302,583
90% 89.8% 1,181,484 1,179,356
80% 79.9% 1,050,208 1,049,429
70% 70.1% 918,932 920,541
60% 60.0% 787,656 787,275
50% 50.1% 656,380 657,891
40% 39.8% 525,104 522,824
30% 30.1% 393,828 394,866
20% 19.9% 262,552 260,973
10% 10.0% 131,276 131,667
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Broadcom Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 0.4.3
Management Firmware Version: iDRAC7 1.10 Build 14
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-14.001 82,985
M520-14.002 81,503
M520-14.003 82,307
M520-14.004 80,654
M520-14.005 81,757
M520-14.006 82,049
M520-14.007 81,785
M520-14.008 83,246
M520-14.009 80,626
M520-14.010 80,887
M520-14.011 80,892
M520-14.012 81,054
M520-14.013 80,571
M520-14.014 80,443
M520-14.015 82,088
M520-14.016 79,734
ssj_ops@100% 1,302,583
ssj_ops@100% per JVM 81,411
Graph of per-instance results
JVM 'M520-14.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,809
Calibration 2     84,256
Calibration 3     83,735
ssj_ops@calibrated=83,995
100% 98.8% 83,995 82,985
90% 89.2% 75,596 74,901
80% 79.5% 67,196 66,779
70% 69.8% 58,797 58,608
60% 59.9% 50,397 50,311
50% 49.9% 41,998 41,931
40% 40.0% 33,598 33,558
30% 30.8% 25,199 25,876
20% 19.9% 16,799 16,703
10% 9.7% 8,400 8,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,526
Calibration 2     82,068
Calibration 3     81,713
ssj_ops@calibrated=81,890
100% 99.5% 81,890 81,503
90% 90.4% 73,701 74,054
80% 79.7% 65,512 65,283
70% 70.6% 57,323 57,787
60% 59.7% 49,134 48,882
50% 50.0% 40,945 40,976
40% 39.5% 32,756 32,336
30% 30.1% 24,567 24,632
20% 19.7% 16,378 16,168
10% 10.5% 8,189 8,562
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,330
Calibration 2     82,318
Calibration 3     83,240
ssj_ops@calibrated=82,779
100% 99.4% 82,779 82,307
90% 89.0% 74,501 73,659
80% 80.1% 66,223 66,341
70% 69.3% 57,945 57,370
60% 60.3% 49,667 49,940
50% 50.3% 41,389 41,632
40% 40.0% 33,112 33,095
30% 30.1% 24,834 24,880
20% 19.7% 16,556 16,345
10% 10.2% 8,278 8,464
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,679
Calibration 2     82,077
Calibration 3     82,011
ssj_ops@calibrated=82,044
100% 98.3% 82,044 80,654
90% 90.3% 73,840 74,054
80% 79.9% 65,635 65,516
70% 70.4% 57,431 57,720
60% 59.6% 49,226 48,921
50% 50.1% 41,022 41,074
40% 39.9% 32,818 32,766
30% 29.5% 24,613 24,201
20% 20.1% 16,409 16,493
10% 10.1% 8,204 8,254
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,780
Calibration 2     83,362
Calibration 3     82,946
ssj_ops@calibrated=83,154
100% 98.3% 83,154 81,757
90% 90.5% 74,839 75,287
80% 79.4% 66,523 66,020
70% 69.9% 58,208 58,162
60% 59.0% 49,892 49,069
50% 49.6% 41,577 41,254
40% 39.8% 33,262 33,101
30% 30.9% 24,946 25,663
20% 19.7% 16,631 16,405
10% 10.2% 8,315 8,458
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,685
Calibration 2     82,802
Calibration 3     82,826
ssj_ops@calibrated=82,814
100% 99.1% 82,814 82,049
90% 90.3% 74,533 74,787
80% 80.3% 66,251 66,496
70% 69.5% 57,970 57,581
60% 59.1% 49,688 48,911
50% 50.5% 41,407 41,827
40% 39.7% 33,126 32,841
30% 30.0% 24,844 24,871
20% 19.7% 16,563 16,308
10% 9.9% 8,281 8,199
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,326
Calibration 2     82,472
Calibration 3     82,328
ssj_ops@calibrated=82,400
100% 99.3% 82,400 81,785
90% 89.6% 74,160 73,829
80% 80.6% 65,920 66,443
70% 71.3% 57,680 58,761
60% 59.5% 49,440 49,030
50% 50.0% 41,200 41,229
40% 39.3% 32,960 32,379
30% 29.9% 24,720 24,612
20% 19.9% 16,480 16,373
10% 10.4% 8,240 8,599
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,613
Calibration 2     83,896
Calibration 3     84,245
ssj_ops@calibrated=84,071
100% 99.0% 84,071 83,246
90% 89.5% 75,664 75,249
80% 80.3% 67,257 67,518
70% 70.5% 58,850 59,284
60% 59.6% 50,443 50,073
50% 50.4% 42,035 42,341
40% 39.5% 33,628 33,242
30% 29.6% 25,221 24,863
20% 20.1% 16,814 16,857
10% 9.9% 8,407 8,320
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,430
Calibration 2     81,324
Calibration 3     81,413
ssj_ops@calibrated=81,368
100% 99.1% 81,368 80,626
90% 89.7% 73,232 72,984
80% 79.7% 65,095 64,841
70% 70.3% 56,958 57,193
60% 60.3% 48,821 49,039
50% 50.7% 40,684 41,289
40% 40.7% 32,547 33,137
30% 30.3% 24,411 24,647
20% 19.9% 16,274 16,163
10% 10.4% 8,137 8,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,207
Calibration 2     79,860
Calibration 3     81,056
ssj_ops@calibrated=80,458
100% 100.5% 80,458 80,887
90% 89.0% 72,412 71,634
80% 80.2% 64,367 64,492
70% 69.6% 56,321 56,002
60% 59.9% 48,275 48,180
50% 50.1% 40,229 40,320
40% 39.0% 32,183 31,374
30% 30.5% 24,137 24,565
20% 20.3% 16,092 16,355
10% 10.2% 8,046 8,185
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,534
Calibration 2     81,317
Calibration 3     81,412
ssj_ops@calibrated=81,365
100% 99.4% 81,365 80,892
90% 91.0% 73,228 74,055
80% 80.5% 65,092 65,482
70% 69.7% 56,955 56,723
60% 60.9% 48,819 49,529
50% 49.7% 40,682 40,440
40% 39.9% 32,546 32,446
30% 29.2% 24,409 23,757
20% 19.6% 16,273 15,937
10% 10.1% 8,136 8,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,740
Calibration 2     81,821
Calibration 3     81,484
ssj_ops@calibrated=81,653
100% 99.3% 81,653 81,054
90% 88.4% 73,487 72,198
80% 78.6% 65,322 64,212
70% 70.4% 57,157 57,501
60% 60.2% 48,992 49,158
50% 50.4% 40,826 41,162
40% 40.0% 32,661 32,648
30% 30.7% 24,496 25,040
20% 19.9% 16,331 16,283
10% 9.8% 8,165 7,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,348
Calibration 2     81,577
Calibration 3     80,982
ssj_ops@calibrated=81,280
100% 99.1% 81,280 80,571
90% 88.8% 73,152 72,207
80% 80.3% 65,024 65,232
70% 69.5% 56,896 56,454
60% 61.0% 48,768 49,605
50% 50.2% 40,640 40,834
40% 39.4% 32,512 32,014
30% 29.8% 24,384 24,199
20% 19.6% 16,256 15,940
10% 9.9% 8,128 8,037
Active Idle   0 0

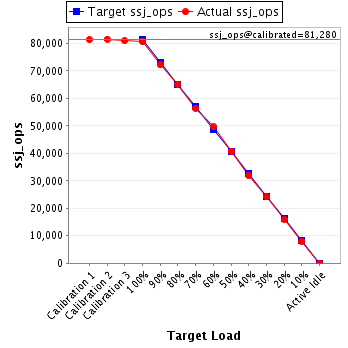

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,092
Calibration 2     80,923
Calibration 3     80,226
ssj_ops@calibrated=80,575
100% 99.8% 80,575 80,443
90% 90.0% 72,517 72,516
80% 80.8% 64,460 65,104
70% 70.2% 56,402 56,544
60% 60.8% 48,345 48,979
50% 49.4% 40,287 39,777
40% 40.1% 32,230 32,337
30% 30.1% 24,172 24,284
20% 20.3% 16,115 16,367
10% 9.7% 8,057 7,791
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,480
Calibration 2     82,645
Calibration 3     82,772
ssj_ops@calibrated=82,708
100% 99.2% 82,708 82,088
90% 90.8% 74,437 75,128
80% 79.2% 66,167 65,528
70% 70.4% 57,896 58,253
60% 60.3% 49,625 49,869
50% 50.1% 41,354 41,469
40% 40.4% 33,083 33,414
30% 29.5% 24,812 24,433
20% 19.4% 16,542 16,078
10% 9.8% 8,271 8,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-14.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,563
Calibration 2     80,221
Calibration 3     80,190
ssj_ops@calibrated=80,205
100% 99.4% 80,205 79,734
90% 90.8% 72,185 72,812
80% 80.0% 64,164 64,143
70% 70.6% 56,144 56,597
60% 59.6% 48,123 47,781
50% 50.3% 40,103 40,337
40% 40.1% 32,082 32,136
30% 30.4% 24,062 24,343
20% 20.2% 16,041 16,199
10% 9.9% 8,021 7,924
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
