Dell Inc. PowerEdge M520 ssj_ops@100% = 1,298,493
ssj_ops@100% per JVM = 81,156
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,308,557
Calibration 2     1,305,885
Calibration 3     1,306,215
ssj_ops@calibrated=1,306,050
100% 99.4% 1,306,050 1,298,493
90% 89.7% 1,175,445 1,171,837
80% 80.0% 1,044,840 1,044,477
70% 70.4% 914,235 919,652
60% 59.9% 783,630 782,773
50% 50.1% 653,025 653,713
40% 40.3% 522,420 525,861
30% 30.0% 391,815 391,878
20% 20.2% 261,210 263,381
10% 10.0% 130,605 130,584
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Broadcom Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 0.4.3
Management Firmware Version: iDRAC7 1.10 Build 14
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-15.001 80,741
M520-15.002 81,138
M520-15.003 80,702
M520-15.004 81,179
M520-15.005 80,719
M520-15.006 80,233
M520-15.007 82,642
M520-15.008 81,883
M520-15.009 81,319
M520-15.010 80,700
M520-15.011 79,919
M520-15.012 81,351
M520-15.013 81,477
M520-15.014 81,425
M520-15.015 81,413
M520-15.016 81,652
ssj_ops@100% 1,298,493
ssj_ops@100% per JVM 81,156

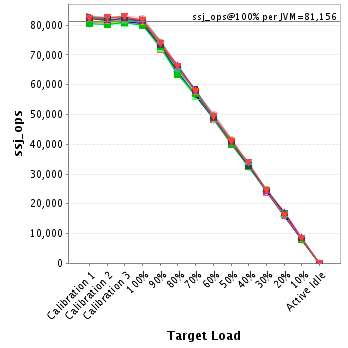

Graph of per-instance results
JVM 'M520-15.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,402
Calibration 2     80,672
Calibration 3     81,078
ssj_ops@calibrated=80,875
100% 99.8% 80,875 80,741
90% 88.9% 72,788 71,872
80% 80.2% 64,700 64,826
70% 70.4% 56,613 56,924
60% 59.8% 48,525 48,394
50% 50.4% 40,438 40,754
40% 40.5% 32,350 32,760
30% 29.6% 24,263 23,933
20% 20.5% 16,175 16,571
10% 9.9% 8,088 8,017
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,152
Calibration 2     81,339
Calibration 3     81,523
ssj_ops@calibrated=81,431
100% 99.6% 81,431 81,138
90% 89.7% 73,288 73,006
80% 80.7% 65,145 65,731
70% 71.4% 57,002 58,164
60% 59.9% 48,859 48,790
50% 50.2% 40,716 40,875
40% 40.3% 32,572 32,835
30% 30.0% 24,429 24,442
20% 20.4% 16,286 16,583
10% 10.0% 8,143 8,149
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,761
Calibration 2     80,909
Calibration 3     80,700
ssj_ops@calibrated=80,804
100% 99.9% 80,804 80,702
90% 89.2% 72,724 72,037
80% 78.4% 64,643 63,348
70% 69.4% 56,563 56,089
60% 60.2% 48,483 48,670
50% 50.1% 40,402 40,466
40% 40.2% 32,322 32,475
30% 30.5% 24,241 24,671
20% 19.9% 16,161 16,108
10% 10.0% 8,080 8,067
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,564
Calibration 2     81,574
Calibration 3     81,144
ssj_ops@calibrated=81,359
100% 99.8% 81,359 81,179
90% 89.7% 73,223 72,953
80% 79.6% 65,087 64,755
70% 70.7% 56,951 57,509
60% 60.0% 48,815 48,779
50% 50.0% 40,680 40,684
40% 40.1% 32,544 32,644
30% 29.7% 24,408 24,198
20% 20.6% 16,272 16,725
10% 9.6% 8,136 7,792
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,036
Calibration 2     81,420
Calibration 3     81,280
ssj_ops@calibrated=81,350
100% 99.2% 81,350 80,719
90% 90.1% 73,215 73,272
80% 80.5% 65,080 65,458
70% 69.8% 56,945 56,773
60% 59.4% 48,810 48,307
50% 49.2% 40,675 40,061
40% 40.0% 32,540 32,529
30% 30.2% 24,405 24,558
20% 20.5% 16,270 16,650
10% 10.1% 8,135 8,216
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,297
Calibration 2     80,090
Calibration 3     80,681
ssj_ops@calibrated=80,386
100% 99.8% 80,386 80,233
90% 89.9% 72,347 72,288
80% 81.0% 64,309 65,107
70% 71.0% 56,270 57,060
60% 59.8% 48,232 48,069
50% 50.2% 40,193 40,386
40% 40.0% 32,154 32,158
30% 30.1% 24,116 24,204
20% 20.4% 16,077 16,437
10% 10.1% 8,039 8,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,690
Calibration 2     82,681
Calibration 3     82,987
ssj_ops@calibrated=82,834
100% 99.8% 82,834 82,642
90% 90.2% 74,551 74,727
80% 80.5% 66,267 66,692
70% 69.9% 57,984 57,911
60% 60.8% 49,701 50,346
50% 50.7% 41,417 41,990
40% 40.5% 33,134 33,515
30% 30.0% 24,850 24,883
20% 21.0% 16,567 17,392
10% 10.1% 8,283 8,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,961
Calibration 2     82,708
Calibration 3     82,625
ssj_ops@calibrated=82,667
100% 99.1% 82,667 81,883
90% 90.1% 74,400 74,510
80% 79.8% 66,133 65,938
70% 70.3% 57,867 58,083
60% 60.1% 49,600 49,652
50% 50.3% 41,333 41,560
40% 39.7% 33,067 32,842
30% 29.9% 24,800 24,732
20% 19.8% 16,533 16,362
10% 10.1% 8,267 8,316
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,615
Calibration 2     82,300
Calibration 3     81,358
ssj_ops@calibrated=81,829
100% 99.4% 81,829 81,319
90% 89.3% 73,646 73,034
80% 79.5% 65,463 65,080
70% 71.2% 57,280 58,292
60% 59.6% 49,097 48,791
50% 50.5% 40,915 41,313
40% 40.2% 32,732 32,933
30% 29.9% 24,549 24,498
20% 19.8% 16,366 16,210
10% 9.8% 8,183 8,020
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,105
Calibration 2     81,873
Calibration 3     81,353
ssj_ops@calibrated=81,613
100% 98.9% 81,613 80,700
90% 89.4% 73,451 72,983
80% 79.0% 65,290 64,450
70% 69.1% 57,129 56,426
60% 59.7% 48,968 48,729
50% 50.0% 40,806 40,807
40% 40.5% 32,645 33,019
30% 29.6% 24,484 24,172
20% 19.4% 16,323 15,865
10% 9.9% 8,161 8,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,688
Calibration 2     80,263
Calibration 3     80,885
ssj_ops@calibrated=80,574
100% 99.2% 80,574 79,919
90% 90.6% 72,516 72,990
80% 78.8% 64,459 63,518
70% 70.9% 56,402 57,129
60% 60.3% 48,344 48,607
50% 49.6% 40,287 39,968
40% 40.3% 32,230 32,436
30% 30.3% 24,172 24,405
20% 20.7% 16,115 16,670
10% 9.8% 8,057 7,908
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,250
Calibration 2     81,453
Calibration 3     81,704
ssj_ops@calibrated=81,579
100% 99.7% 81,579 81,351
90% 90.3% 73,421 73,630
80% 80.4% 65,263 65,550
70% 70.7% 57,105 57,652
60% 59.7% 48,947 48,676
50% 50.5% 40,789 41,218
40% 40.4% 32,631 32,972
30% 30.5% 24,474 24,910
20% 19.7% 16,316 16,041
10% 10.3% 8,158 8,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,213
Calibration 2     82,074
Calibration 3     82,197
ssj_ops@calibrated=82,135
100% 99.2% 82,135 81,477
90% 90.1% 73,922 74,024
80% 80.8% 65,708 66,385
70% 70.8% 57,495 58,182
60% 59.8% 49,281 49,142
50% 50.0% 41,068 41,064
40% 40.1% 32,854 32,953
30% 29.9% 24,641 24,536
20% 20.7% 16,427 16,995
10% 10.4% 8,214 8,562
Active Idle   0 0

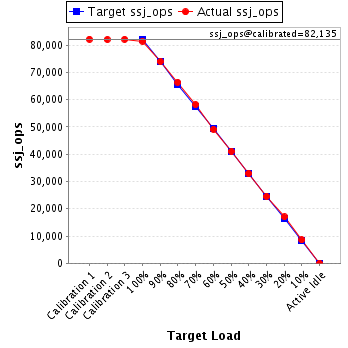

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,490
Calibration 2     82,340
Calibration 3     81,713
ssj_ops@calibrated=82,027
100% 99.3% 82,027 81,425
90% 90.0% 73,824 73,814
80% 79.6% 65,621 65,282
70% 70.7% 57,419 57,994
60% 60.7% 49,216 49,782
50% 49.9% 41,013 40,937
40% 40.6% 32,811 33,268
30% 29.9% 24,608 24,549
20% 19.6% 16,405 16,075
10% 10.1% 8,203 8,254
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,205
Calibration 2     81,643
Calibration 3     82,110
ssj_ops@calibrated=81,877
100% 99.4% 81,877 81,413
90% 89.0% 73,689 72,891
80% 81.0% 65,501 66,345
70% 70.5% 57,314 57,754
60% 59.5% 49,126 48,736
50% 49.6% 40,938 40,625
40% 39.7% 32,751 32,510
30% 30.1% 24,563 24,671
20% 20.4% 16,375 16,691
10% 9.8% 8,188 7,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,126
Calibration 2     82,546
Calibration 3     82,877
ssj_ops@calibrated=82,711
100% 98.7% 82,711 81,652
90% 89.2% 74,440 73,804
80% 79.8% 66,169 66,012
70% 69.8% 57,898 57,711
60% 59.6% 49,627 49,302
50% 49.6% 41,356 41,004
40% 41.1% 33,084 34,012
30% 29.6% 24,813 24,516
20% 19.3% 16,542 16,004
10% 10.2% 8,271 8,424
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
