Acer Incorporated Acer AR585 F1 ssj_ops@100% = 2,299,931
ssj_ops@100% per JVM = 143,746
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 22, 2012
Hardware Availability: Jun-2012 Software Availability: Jun-2011 Publication: Jun 21, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,274,304
Calibration 2     2,309,274
Calibration 3     2,309,142
ssj_ops@calibrated=2,309,208
100% 99.6% 2,309,208 2,299,931
90% 89.9% 2,078,287 2,075,410
80% 80.2% 1,847,366 1,851,168
70% 69.9% 1,616,445 1,613,866
60% 60.1% 1,385,525 1,387,288
50% 50.2% 1,154,604 1,158,434
40% 40.0% 923,683 924,363
30% 29.9% 692,762 690,750
20% 20.1% 461,842 463,482
10% 10.0% 230,921 231,293
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR585 F1
Form Factor: 2U
CPU Name: AMD Opteron 6278
CPU Characteristics: 16 cores, 2.40 GHz (AMD Turbo CORE technology up to 3.3 GHz)
CPU Frequency (MHz): 2400
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 32 x 8192 MB
Memory Details: 8GB 2Rx4 PC3-10600R; Slots 1A, 1B, 2A, 2B, 3A, 3B, 4A and 4B are populated for each processor
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41F-1R
Disk Drive: 2 x 300GB SAS 15K RPM 3.5" HDD, Acer part #KH.300W1.025
Disk Controller: Flex IO USAS2H8iR add-on SAS RAID controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr9-20110619_85080 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1500m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: P6T0
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-KK33POLHKCU.001 143,942
WIN-KK33POLHKCU.002 141,870
WIN-KK33POLHKCU.003 143,295
WIN-KK33POLHKCU.004 144,669
WIN-KK33POLHKCU.005 143,266
WIN-KK33POLHKCU.006 144,545
WIN-KK33POLHKCU.007 144,594
WIN-KK33POLHKCU.008 142,863
WIN-KK33POLHKCU.009 144,373
WIN-KK33POLHKCU.010 142,964
WIN-KK33POLHKCU.011 143,609
WIN-KK33POLHKCU.012 144,392
WIN-KK33POLHKCU.013 143,548
WIN-KK33POLHKCU.014 142,459
WIN-KK33POLHKCU.015 143,978
WIN-KK33POLHKCU.016 145,565
ssj_ops@100% 2,299,931
ssj_ops@100% per JVM 143,746

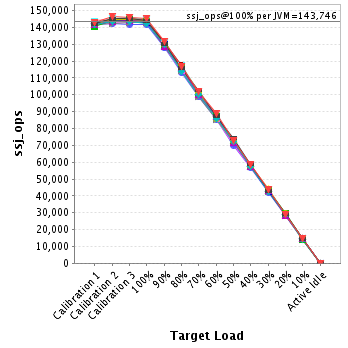

Graph of per-instance results
JVM 'WIN-KK33POLHKCU.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,170
Calibration 2     144,324
Calibration 3     143,910
ssj_ops@calibrated=144,117
100% 99.9% 144,117 143,942
90% 89.6% 129,706 129,127
80% 79.4% 115,294 114,436
70% 70.0% 100,882 100,896
60% 59.9% 86,470 86,275
50% 50.1% 72,059 72,140
40% 40.1% 57,647 57,822
30% 30.1% 43,235 43,378
20% 20.3% 28,823 29,199
10% 10.0% 14,412 14,439
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,653
Calibration 2     142,411
Calibration 3     141,949
ssj_ops@calibrated=142,180
100% 99.8% 142,180 141,870
90% 89.9% 127,962 127,822
80% 79.7% 113,744 113,275
70% 69.6% 99,526 98,940
60% 60.1% 85,308 85,403
50% 49.4% 71,090 70,176
40% 40.0% 56,872 56,864
30% 29.7% 42,654 42,246
20% 20.0% 28,436 28,444
10% 9.8% 14,218 13,923
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,678
Calibration 2     144,297
Calibration 3     144,090
ssj_ops@calibrated=144,194
100% 99.4% 144,194 143,295
90% 89.5% 129,774 129,023
80% 80.1% 115,355 115,519
70% 70.2% 100,936 101,218
60% 60.4% 86,516 87,131
50% 50.4% 72,097 72,616
40% 39.9% 57,678 57,534
30% 30.0% 43,258 43,205
20% 20.2% 28,839 29,171
10% 10.0% 14,419 14,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,790
Calibration 2     145,428
Calibration 3     145,304
ssj_ops@calibrated=145,366
100% 99.5% 145,366 144,669
90% 89.5% 130,829 130,167
80% 80.6% 116,293 117,124
70% 70.1% 101,756 101,889
60% 59.5% 87,220 86,502
50% 50.1% 72,683 72,883
40% 39.9% 58,146 57,977
30% 30.4% 43,610 44,186
20% 20.1% 29,073 29,150
10% 10.0% 14,537 14,558
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,764
Calibration 2     142,984
Calibration 3     143,488
ssj_ops@calibrated=143,236
100% 100.0% 143,236 143,266
90% 90.0% 128,912 128,942
80% 79.5% 114,589 113,812
70% 69.8% 100,265 100,044
60% 59.5% 85,942 85,207
50% 49.3% 71,618 70,672
40% 39.5% 57,294 56,600
30% 30.2% 42,971 43,235
20% 19.7% 28,647 28,220
10% 10.2% 14,324 14,546
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,348
Calibration 2     145,278
Calibration 3     146,028
ssj_ops@calibrated=145,653
100% 99.2% 145,653 144,545
90% 90.0% 131,088 131,028
80% 80.6% 116,523 117,459
70% 70.0% 101,957 101,914
60% 59.8% 87,392 87,089
50% 50.2% 72,827 73,047
40% 39.9% 58,261 58,184
30% 30.0% 43,696 43,748
20% 20.1% 29,131 29,245
10% 9.9% 14,565 14,433
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,982
Calibration 2     145,125
Calibration 3     144,776
ssj_ops@calibrated=144,951
100% 99.8% 144,951 144,594
90% 90.4% 130,456 131,100
80% 79.8% 115,961 115,734
70% 70.3% 101,465 101,867
60% 61.0% 86,970 88,398
50% 50.1% 72,475 72,649
40% 40.4% 57,980 58,616
30% 30.0% 43,485 43,496
20% 19.9% 28,990 28,860
10% 9.9% 14,495 14,325
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,993
Calibration 2     142,400
Calibration 3     142,843
ssj_ops@calibrated=142,621
100% 100.2% 142,621 142,863
90% 90.1% 128,359 128,496
80% 80.4% 114,097 114,710
70% 69.3% 99,835 98,886
60% 60.0% 85,573 85,551
50% 50.5% 71,311 71,983
40% 40.5% 57,049 57,733
30% 29.9% 42,786 42,675
20% 20.1% 28,524 28,627
10% 10.0% 14,262 14,210
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,712
Calibration 2     144,961
Calibration 3     145,100
ssj_ops@calibrated=145,031
100% 99.5% 145,031 144,373
90% 90.2% 130,527 130,787
80% 80.8% 116,024 117,192
70% 69.6% 101,521 100,908
60% 59.6% 87,018 86,368
50% 50.5% 72,515 73,248
40% 39.8% 58,012 57,772
30% 29.9% 43,509 43,348
20% 19.9% 29,006 28,876
10% 10.0% 14,503 14,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,037
Calibration 2     143,906
Calibration 3     144,011
ssj_ops@calibrated=143,958
100% 99.3% 143,958 142,964
90% 90.1% 129,562 129,734
80% 81.1% 115,167 116,712
70% 69.6% 100,771 100,147
60% 60.6% 86,375 87,288
50% 50.5% 71,979 72,667
40% 40.0% 57,583 57,611
30% 29.4% 43,187 42,375
20% 20.1% 28,792 28,936
10% 10.1% 14,396 14,536
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,814
Calibration 2     144,305
Calibration 3     144,626
ssj_ops@calibrated=144,466
100% 99.4% 144,466 143,609
90% 89.1% 130,019 128,746
80% 80.4% 115,573 116,196
70% 69.5% 101,126 100,415
60% 60.3% 86,680 87,161
50% 50.6% 72,233 73,128
40% 40.1% 57,786 57,970
30% 29.7% 43,340 42,903
20% 20.3% 28,893 29,293
10% 9.9% 14,447 14,312
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,967
Calibration 2     144,838
Calibration 3     144,674
ssj_ops@calibrated=144,756
100% 99.7% 144,756 144,392
90% 89.6% 130,281 129,651
80% 80.4% 115,805 116,446
70% 69.8% 101,329 101,105
60% 59.3% 86,854 85,869
50% 50.1% 72,378 72,452
40% 39.8% 57,902 57,558
30% 29.7% 43,427 43,034
20% 20.4% 28,951 29,572
10% 10.2% 14,476 14,700
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,608
Calibration 2     143,715
Calibration 3     143,842
ssj_ops@calibrated=143,779
100% 99.8% 143,779 143,548
90% 89.5% 129,401 128,641
80% 80.7% 115,023 116,007
70% 69.8% 100,645 100,301
60% 60.6% 86,267 87,065
50% 50.0% 71,889 71,912
40% 39.8% 57,511 57,174
30% 30.2% 43,134 43,403
20% 19.8% 28,756 28,483
10% 10.2% 14,378 14,623
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,725
Calibration 2     143,589
Calibration 3     143,554
ssj_ops@calibrated=143,571
100% 99.2% 143,571 142,459
90% 90.6% 129,214 130,096
80% 79.5% 114,857 114,069
70% 70.0% 100,500 100,459
60% 59.8% 86,143 85,902
50% 50.2% 71,786 72,070
40% 40.1% 57,429 57,540
30% 29.7% 43,071 42,676
20% 20.3% 28,714 29,216
10% 10.0% 14,357 14,353
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,273
Calibration 2     145,139
Calibration 3     145,105
ssj_ops@calibrated=145,122
100% 99.2% 145,122 143,978
90% 89.8% 130,610 130,295
80% 79.8% 116,097 115,769
70% 70.7% 101,585 102,647
60% 60.1% 87,073 87,285
50% 51.1% 72,561 74,104
40% 40.5% 58,049 58,760
30% 29.8% 43,537 43,181
20% 20.3% 29,024 29,407
10% 10.0% 14,512 14,513
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,791
Calibration 2     146,573
Calibration 3     145,841
ssj_ops@calibrated=146,207
100% 99.6% 146,207 145,565
90% 90.1% 131,586 131,753
80% 79.8% 116,966 116,707
70% 69.9% 102,345 102,230
60% 60.7% 87,724 88,794
50% 49.7% 73,103 72,685
40% 40.1% 58,483 58,649
30% 29.9% 43,862 43,661
20% 19.7% 29,241 28,784
10% 10.2% 14,621 14,951
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
