Acer Incorporated Acer AR585 F1 | SPECpower_ssj2008 = 2,284 overall ssj_ops/watt | ||||
Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | May 29, 2012 |
Hardware Availability: | Sep-2011 | Software Availability: | Jun-2011 | Publication: | Jun 14, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

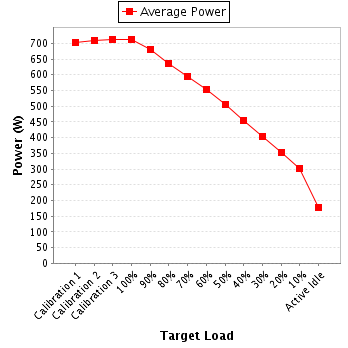

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 702 | 25.4 |
Calibration 2 | 709 | 25.4 |
Calibration 3 | 713 | 25.6 |
100% | 713 | 26.2 |
90% | 680 | 26.7 |
80% | 637 | 26.4 |
70% | 596 | 25.8 |
60% | 554 | 25.8 |
50% | 507 | 26.1 |
40% | 455 | 26.4 |
30% | 403 | 26.3 |
20% | 352 | 25.3 |
10% | 302 | 25.4 |
Active Idle | 177 | 25.8 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91H534921 |
Connectivity: | RS232 |
Input Connection: | Default |
Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
Accredited by: | ETC, Taiwan |
Calibration Label: | 12-05-BAC-113-01 |
Date of Calibration: | 10-May-2012 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.1-1271fb18-20110728 |
Setup Description: | None |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.0.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | None |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 214 | 300.0 | 3.38 | 5.0 | 0.971 | 702 | 0.4% |
Calibration 2 | 214 | 300.0 | 3.41 | 5.0 | 0.971 | 709 | 0.4% |
Calibration 3 | 214 | 300.0 | 3.42 | 5.0 | 0.971 | 713 | 0.4% |
100% | 215 | 300.0 | 3.42 | 5.0 | 0.971 | 713 | 0.4% |
90% | 215 | 300.0 | 3.26 | 5.0 | 0.970 | 680 | 0.4% |
80% | 215 | 300.0 | 3.07 | 5.0 | 0.968 | 637 | 0.4% |
70% | 215 | 300.0 | 2.87 | 5.0 | 0.966 | 596 | 0.4% |
60% | 215 | 300.0 | 2.68 | 5.0 | 0.964 | 554 | 0.4% |
50% | 215 | 300.0 | 2.45 | 5.0 | 0.962 | 507 | 0.5% |
40% | 215 | 300.0 | 2.21 | 2.0 | 0.958 | 455 | 0.3% |
30% | 215 | 300.0 | 1.97 | 2.0 | 0.953 | 403 | 0.3% |
20% | 215 | 300.0 | 1.72 | 2.0 | 0.946 | 352 | 0.3% |
10% | 216 | 300.0 | 1.50 | 2.0 | 0.937 | 302 | 0.4% |
Active Idle | 216 | 300.0 | 0.925 | 1.0 | 0.888 | 177 | 0.4% |
