Huawei Technologies Co., Ltd RH2485 V2 ssj_ops@100% = 2,395,181
ssj_ops@100% per JVM = 149,699
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Jun 11, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: Jun 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,373,853
Calibration 2     2,396,812
Calibration 3     2,388,203
ssj_ops@calibrated=2,392,508
100% 100.1% 2,392,508 2,395,181
90% 89.9% 2,153,257 2,150,329
80% 79.8% 1,914,006 1,910,046
70% 69.9% 1,674,755 1,673,278
60% 60.0% 1,435,505 1,435,699
50% 50.0% 1,196,254 1,196,279
40% 40.0% 957,003 956,956
30% 29.8% 717,752 713,186
20% 20.0% 478,502 478,185
10% 9.9% 239,251 238,050
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2485 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-4640
CPU Characteristics: 8-Core, 2.40 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 2.80 GHz)
CPU Frequency (MHz): 2400
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 12 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Huawei P/N 98080310
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000,0xF00000000,0xF000000000,0xF0000000000,0xF00000000000,0xF000000000000,0xF0000000000000,0xF00000000000000,0xF000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: V023
Management Firmware Version: 3.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 64 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-4QQRLMSOOTV.001 150,412
WIN-4QQRLMSOOTV.002 149,093
WIN-4QQRLMSOOTV.003 150,179
WIN-4QQRLMSOOTV.004 150,312
WIN-4QQRLMSOOTV.005 150,009
WIN-4QQRLMSOOTV.006 149,630
WIN-4QQRLMSOOTV.007 149,992
WIN-4QQRLMSOOTV.008 149,995
WIN-4QQRLMSOOTV.009 149,725
WIN-4QQRLMSOOTV.010 149,317
WIN-4QQRLMSOOTV.011 149,051
WIN-4QQRLMSOOTV.012 149,611
WIN-4QQRLMSOOTV.013 149,771
WIN-4QQRLMSOOTV.014 149,791
WIN-4QQRLMSOOTV.015 149,219
WIN-4QQRLMSOOTV.016 149,074
ssj_ops@100% 2,395,181
ssj_ops@100% per JVM 149,699

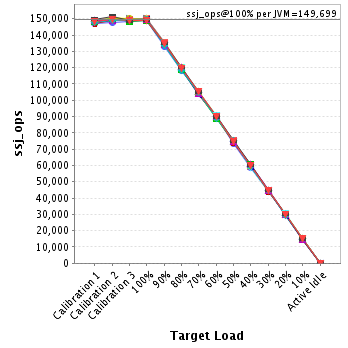

Graph of per-instance results
JVM 'WIN-4QQRLMSOOTV.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,804
Calibration 2     150,735
Calibration 3     149,460
ssj_ops@calibrated=150,098
100% 100.2% 150,098 150,412
90% 90.1% 135,088 135,202
80% 79.5% 120,078 119,264
70% 69.8% 105,068 104,781
60% 59.9% 90,059 89,959
50% 50.2% 75,049 75,331
40% 39.5% 60,039 59,326
30% 29.8% 45,029 44,743
20% 19.8% 30,020 29,771
10% 10.0% 15,010 14,951
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,201
Calibration 2     147,867
Calibration 3     148,518
ssj_ops@calibrated=148,193
100% 100.6% 148,193 149,093
90% 89.7% 133,374 132,963
80% 79.8% 118,554 118,230
70% 70.5% 103,735 104,548
60% 60.3% 88,916 89,306
50% 49.6% 74,096 73,442
40% 39.8% 59,277 58,933
30% 29.8% 44,458 44,229
20% 20.2% 29,639 29,983
10% 9.9% 14,819 14,603
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,410
Calibration 2     150,150
Calibration 3     149,418
ssj_ops@calibrated=149,784
100% 100.3% 149,784 150,179
90% 89.9% 134,806 134,700
80% 80.0% 119,827 119,770
70% 70.3% 104,849 105,297
60% 59.7% 89,870 89,442
50% 50.0% 74,892 74,911
40% 40.0% 59,914 59,919
30% 29.9% 44,935 44,768
20% 19.9% 29,957 29,840
10% 10.0% 14,978 14,936
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,596
Calibration 2     150,575
Calibration 3     150,264
ssj_ops@calibrated=150,420
100% 99.9% 150,420 150,312
90% 89.3% 135,378 134,317
80% 79.5% 120,336 119,650
70% 70.0% 105,294 105,356
60% 60.1% 90,252 90,381
50% 49.8% 75,210 74,948
40% 39.6% 60,168 59,501
30% 29.4% 45,126 44,213
20% 20.1% 30,084 30,298
10% 10.1% 15,042 15,203
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,069
Calibration 2     149,954
Calibration 3     149,029
ssj_ops@calibrated=149,491
100% 100.3% 149,491 150,009
90% 90.2% 134,542 134,895
80% 79.4% 119,593 118,732
70% 70.3% 104,644 105,138
60% 60.1% 89,695 89,796
50% 49.5% 74,746 73,928
40% 40.7% 59,797 60,786
30% 30.1% 44,847 44,976
20% 20.1% 29,898 30,064
10% 10.1% 14,949 15,107
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,894
Calibration 2     150,378
Calibration 3     149,042
ssj_ops@calibrated=149,710
100% 99.9% 149,710 149,630
90% 89.6% 134,739 134,070
80% 80.2% 119,768 120,075
70% 69.9% 104,797 104,638
60% 60.4% 89,826 90,436
50% 50.0% 74,855 74,889
40% 39.3% 59,884 58,833
30% 29.5% 44,913 44,121
20% 20.2% 29,942 30,294
10% 10.0% 14,971 14,903
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,965
Calibration 2     149,147
Calibration 3     149,283
ssj_ops@calibrated=149,215
100% 100.5% 149,215 149,992
90% 89.6% 134,294 133,630
80% 79.8% 119,372 119,134
70% 69.5% 104,451 103,649
60% 60.2% 89,529 89,875
50% 50.2% 74,608 74,946
40% 39.9% 59,686 59,537
30% 29.7% 44,765 44,343
20% 20.0% 29,843 29,844
10% 9.6% 14,922 14,361
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,631
Calibration 2     150,308
Calibration 3     149,917
ssj_ops@calibrated=150,113
100% 99.9% 150,113 149,995
90% 90.4% 135,101 135,640
80% 80.0% 120,090 120,112
70% 69.8% 105,079 104,721
60% 59.9% 90,068 89,903
50% 50.1% 75,056 75,256
40% 40.2% 60,045 60,380
30% 29.9% 45,034 44,897
20% 20.0% 30,023 29,984
10% 9.9% 15,011 14,895
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,381
Calibration 2     149,213
Calibration 3     149,335
ssj_ops@calibrated=149,274
100% 100.3% 149,274 149,725
90% 90.1% 134,347 134,426
80% 79.9% 119,419 119,264
70% 70.0% 104,492 104,450
60% 60.0% 89,564 89,617
50% 49.8% 74,637 74,352
40% 40.1% 59,710 59,834
30% 29.5% 44,782 44,060
20% 19.9% 29,855 29,744
10% 10.2% 14,927 15,178
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,494
Calibration 2     149,169
Calibration 3     149,150
ssj_ops@calibrated=149,160
100% 100.1% 149,160 149,317
90% 89.9% 134,244 134,120
80% 79.5% 119,328 118,581
70% 69.3% 104,412 103,425
60% 60.2% 89,496 89,861
50% 50.1% 74,580 74,795
40% 39.7% 59,664 59,229
30% 29.8% 44,748 44,520
20% 19.8% 29,832 29,542
10% 9.8% 14,916 14,564
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,056
Calibration 2     149,922
Calibration 3     148,086
ssj_ops@calibrated=149,004
100% 100.0% 149,004 149,051
90% 90.1% 134,104 134,180
80% 79.7% 119,203 118,784
70% 69.8% 104,303 104,049
60% 59.8% 89,402 89,064
50% 50.0% 74,502 74,571
40% 40.5% 59,602 60,327
30% 30.0% 44,701 44,643
20% 19.9% 29,801 29,721
10% 9.9% 14,900 14,766
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,731
Calibration 2     150,066
Calibration 3     150,132
ssj_ops@calibrated=150,099
100% 99.7% 150,099 149,611
90% 89.8% 135,089 134,809
80% 80.1% 120,079 120,173
70% 69.3% 105,069 103,971
60% 59.4% 90,059 89,197
50% 49.8% 75,049 74,701
40% 39.9% 60,040 59,854
30% 29.9% 45,030 44,911
20% 20.0% 30,020 29,992
10% 10.2% 15,010 15,237
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,970
Calibration 2     149,178
Calibration 3     149,837
ssj_ops@calibrated=149,508
100% 100.2% 149,508 149,771
90% 89.8% 134,557 134,248
80% 80.2% 119,606 119,908
70% 69.6% 104,655 104,092
60% 60.0% 89,705 89,767
50% 50.0% 74,754 74,725
40% 40.7% 59,803 60,796
30% 30.0% 44,852 44,866
20% 20.0% 29,902 29,973
10% 9.9% 14,951 14,734
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,714
Calibration 2     148,946
Calibration 3     149,060
ssj_ops@calibrated=149,003
100% 100.5% 149,003 149,791
90% 89.5% 134,102 133,422
80% 79.5% 119,202 118,501
70% 70.3% 104,302 104,743
60% 59.8% 89,402 89,077
50% 50.6% 74,501 75,343
40% 40.0% 59,601 59,572
30% 29.8% 44,701 44,473
20% 19.6% 29,801 29,269
10% 10.0% 14,900 14,920
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,759
Calibration 2     151,480
Calibration 3     148,694
ssj_ops@calibrated=150,087
100% 99.4% 150,087 149,219
90% 89.9% 135,079 134,880
80% 80.0% 120,070 120,102
70% 70.1% 105,061 105,186
60% 60.0% 90,052 89,989
50% 50.1% 75,044 75,206
40% 40.2% 60,035 60,352
30% 29.8% 45,026 44,735
20% 20.1% 30,017 30,100
10% 9.8% 15,009 14,778
Active Idle   0 0
Graph of results
JVM 'WIN-4QQRLMSOOTV.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,178
Calibration 2     149,722
Calibration 3     148,979
ssj_ops@calibrated=149,350
100% 99.8% 149,350 149,074
90% 90.3% 134,415 134,825
80% 80.2% 119,480 119,767
70% 70.5% 104,545 105,235
60% 60.3% 89,610 90,029
50% 50.2% 74,675 74,935
40% 40.0% 59,740 59,777
30% 29.9% 44,805 44,689
20% 19.9% 29,870 29,767
10% 10.0% 14,935 14,912
Active Idle   0 0
Graph of results
