Acer Incorporated Acer AT350 F2 SPECpower_ssj2008 = 2,464 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 24, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Aug 8, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 1,028,960 327 3,145
90% 90.2% 931,235 308 3,021
80% 79.5% 821,310 276 2,976
70% 69.8% 720,498 240 3,008
60% 59.8% 617,566 221 2,801
50% 50.1% 517,140 201 2,573
40% 40.0% 412,607 182 2,270
30% 30.1% 310,474 165 1,887
20% 20.1% 207,878 150 1,387
10% 10.0% 103,081 135 764
Active Idle 0 98.2 0
∑ssj_ops / ∑power = 2,464

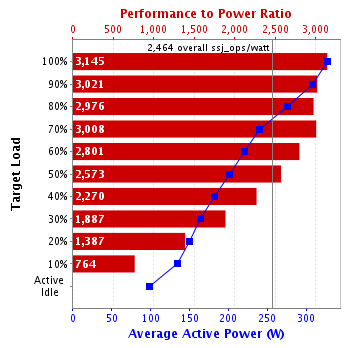

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AT350 F2
Form Factor: Tower
CPU Name: Intel Xeon E5-2640
CPU Characteristics: 6 core, 2.5GHz, 15MB L3 Cache (Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 16 x 8192 MB
Memory Details: 8GB 2Rx4 PC3L-10600E; Slots 1A,2A,1B,2B,1C,2C,1D,2D and 1E,2E,1F,2F,1G,2G,1H,2H are populated
Power Supply Quantity and Rating (W): 1 x 920
Power Supply Details: Acer P/N SC.9201S.002
Disk Drive: 2 x 300GB 15K RPM SAS 3.5" HDD (P/N KH.30007.007)
Disk Controller: LSI MegaRAID SAS 9260-8i
# and type of Network Interface Cards (NICs) Installed: 4 x Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: No
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_26
JVM Command-line Options: -server -showversion -Xmx2048m -Xms2048m -Xmn1706m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [0000000F, 000000F0, 00000F00, 0000F000, 000F0000, 00F00000]
JVM Instances: 6
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: D19
Management Firmware Version: 0.12
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GR160 F1
CPU Description: Intel L5520
Memory amount (GB): 3
Software
Operating System (OS): Windows Server 2003 R2, Enterprise Edition SP2
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode)
CCS Version: 1.2.5
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 12-05-BAC-113-01
Date of Calibration: 10-May-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT airflow intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 327 20.9
90% 308 21.7
80% 276 23.0
70% 240 22.6
60% 221 21.6
50% 201 21.2
40% 182 21.2
30% 165 22.6
20% 150 23.5
10% 135 22.8
Active Idle 98.2 22.1
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 20.9 32
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,024,109
Calibration 2     1,031,182
Calibration 3     1,033,971
ssj_ops@calibrated=1,032,577
100% 99.6% 1,032,577 1,028,960
90% 90.2% 929,319 931,235
80% 79.5% 826,061 821,310
70% 69.8% 722,804 720,498
60% 59.8% 619,546 617,566
50% 50.1% 516,288 517,140
40% 40.0% 413,031 412,607
30% 30.1% 309,773 310,474
20% 20.1% 206,515 207,878
10% 10.0% 103,258 103,081
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
