Dell Inc. PowerEdge R815 (AMD Opteron 6278, 2.40 GHz) ssj_ops@100% = 2,331,362
ssj_ops@100% per JVM = 145,710
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jul 2, 2012
Hardware Availability: Jun-2012 Software Availability: Jul-2009 Publication: Aug 8, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,323,902
Calibration 2     2,334,666
Calibration 3     2,339,719
ssj_ops@calibrated=2,337,192
100% 99.8% 2,337,192 2,331,362
90% 90.1% 2,103,473 2,106,807
80% 80.1% 1,869,754 1,871,943
70% 70.1% 1,636,035 1,638,449
60% 60.1% 1,402,315 1,404,229
50% 50.0% 1,168,596 1,169,558
40% 40.0% 934,877 935,129
30% 30.1% 701,158 702,391
20% 20.1% 467,438 468,992
10% 10.0% 233,719 232,813
Active Idle   0 0

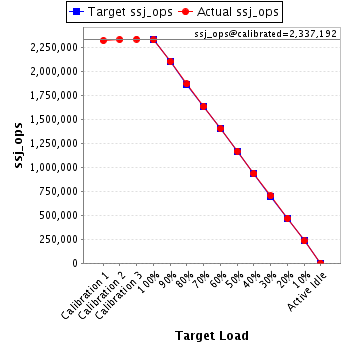

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: R815
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R815 (AMD Opteron 6278, 2.40 GHz)
Form Factor: 2U
CPU Name: AMD Opteron 6278
CPU Characteristics: 16 Cores, 2.40 GHz, 16 MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 16 x 4096 MB
Memory Details: 4 GB 2Rx8 PC3L-10600E-9-10; slots A1-A4, B1-B4, C1-C4, and D1-D4 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Dell PN 9PG9X
Disk Drive: 1 x 100 GB SATA SSD, Dell P/N DYW42
Disk Controller: PERC H200 Integrated
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port onboard Broadcom NetXtreme II BCM5709
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: N/A
Software
Power Management: Power Saver Mode (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corp.
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xms1875m -Xmx1875m -Xmn1400m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 2.8.1
Management Firmware Version: 1.90.09 iDRAC
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere Application Server v7.0 for Windows on x86_64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-V5FSI5RGBIG.001 146,327
WIN-V5FSI5RGBIG.002 145,755
WIN-V5FSI5RGBIG.003 144,269
WIN-V5FSI5RGBIG.004 144,523
WIN-V5FSI5RGBIG.005 145,601
WIN-V5FSI5RGBIG.006 146,141
WIN-V5FSI5RGBIG.007 145,850
WIN-V5FSI5RGBIG.008 145,028
WIN-V5FSI5RGBIG.009 144,510
WIN-V5FSI5RGBIG.010 147,233
WIN-V5FSI5RGBIG.011 145,999
WIN-V5FSI5RGBIG.012 143,596
WIN-V5FSI5RGBIG.013 146,970
WIN-V5FSI5RGBIG.014 145,131
WIN-V5FSI5RGBIG.015 145,727
WIN-V5FSI5RGBIG.016 148,702
ssj_ops@100% 2,331,362
ssj_ops@100% per JVM 145,710

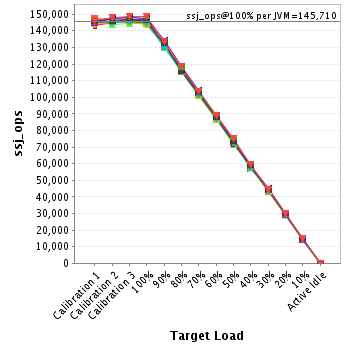

Graph of per-instance results
JVM 'WIN-V5FSI5RGBIG.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,219
Calibration 2     146,647
Calibration 3     146,635
ssj_ops@calibrated=146,641
100% 99.8% 146,641 146,327
90% 90.1% 131,977 132,125
80% 80.1% 117,313 117,437
70% 70.2% 102,649 102,941
60% 59.6% 87,985 87,433
50% 49.8% 73,321 73,017
40% 40.1% 58,657 58,811
30% 29.5% 43,992 43,193
20% 20.1% 29,328 29,426
10% 10.1% 14,664 14,758
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,114
Calibration 2     146,258
Calibration 3     146,161
ssj_ops@calibrated=146,209
100% 99.7% 146,209 145,755
90% 90.2% 131,588 131,815
80% 80.8% 116,967 118,084
70% 70.0% 102,347 102,402
60% 59.9% 87,726 87,636
50% 49.5% 73,105 72,446
40% 39.8% 58,484 58,167
30% 30.2% 43,863 44,102
20% 20.2% 29,242 29,469
10% 10.0% 14,621 14,610
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,721
Calibration 2     143,531
Calibration 3     144,231
ssj_ops@calibrated=143,881
100% 100.3% 143,881 144,269
90% 90.3% 129,493 129,947
80% 80.4% 115,105 115,614
70% 70.2% 100,717 100,963
60% 60.3% 86,329 86,735
50% 49.7% 71,941 71,504
40% 40.4% 57,552 58,180
30% 29.9% 43,164 43,072
20% 20.3% 28,776 29,265
10% 10.1% 14,388 14,583
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,975
Calibration 2     145,714
Calibration 3     145,503
ssj_ops@calibrated=145,608
100% 99.3% 145,608 144,523
90% 89.8% 131,047 130,779
80% 80.7% 116,487 117,460
70% 70.0% 101,926 101,971
60% 59.9% 87,365 87,160
50% 50.4% 72,804 73,400
40% 40.3% 58,243 58,672
30% 30.0% 43,682 43,725
20% 20.2% 29,122 29,477
10% 10.0% 14,561 14,520
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,423
Calibration 2     145,247
Calibration 3     146,547
ssj_ops@calibrated=145,897
100% 99.8% 145,897 145,601
90% 90.1% 131,307 131,398
80% 80.5% 116,718 117,445
70% 69.5% 102,128 101,435
60% 60.1% 87,538 87,661
50% 50.1% 72,949 73,025
40% 40.1% 58,359 58,445
30% 29.8% 43,769 43,513
20% 19.6% 29,179 28,634
10% 9.9% 14,590 14,512
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,459
Calibration 2     146,815
Calibration 3     146,466
ssj_ops@calibrated=146,640
100% 99.7% 146,640 146,141
90% 90.2% 131,976 132,308
80% 79.8% 117,312 117,072
70% 70.5% 102,648 103,419
60% 60.6% 87,984 88,925
50% 50.3% 73,320 73,749
40% 40.2% 58,656 58,890
30% 29.9% 43,992 43,919
20% 19.9% 29,328 29,179
10% 9.8% 14,664 14,347
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,306
Calibration 2     146,115
Calibration 3     146,368
ssj_ops@calibrated=146,241
100% 99.7% 146,241 145,850
90% 90.1% 131,617 131,711
80% 80.6% 116,993 117,936
70% 69.8% 102,369 102,062
60% 60.4% 87,745 88,261
50% 50.1% 73,121 73,221
40% 40.2% 58,497 58,809
30% 30.0% 43,872 43,821
20% 20.0% 29,248 29,253
10% 10.0% 14,624 14,599
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,705
Calibration 2     145,564
Calibration 3     146,276
ssj_ops@calibrated=145,920
100% 99.4% 145,920 145,028
90% 89.6% 131,328 130,765
80% 80.8% 116,736 117,966
70% 70.6% 102,144 103,023
60% 59.6% 87,552 86,918
50% 50.1% 72,960 73,143
40% 39.2% 58,368 57,271
30% 30.6% 43,776 44,641
20% 20.0% 29,184 29,221
10% 10.4% 14,592 15,195
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,241
Calibration 2     145,171
Calibration 3     145,359
ssj_ops@calibrated=145,265
100% 99.5% 145,265 144,510
90% 90.5% 130,738 131,480
80% 79.4% 116,212 115,292
70% 70.2% 101,685 101,929
60% 60.8% 87,159 88,250
50% 49.6% 72,632 72,098
40% 40.1% 58,106 58,275
30% 29.9% 43,579 43,430
20% 20.1% 29,053 29,269
10% 9.8% 14,526 14,179
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,820
Calibration 2     147,537
Calibration 3     148,095
ssj_ops@calibrated=147,816
100% 99.6% 147,816 147,233
90% 90.7% 133,035 134,003
80% 80.4% 118,253 118,782
70% 70.3% 103,471 103,927
60% 60.0% 88,690 88,656
50% 49.6% 73,908 73,256
40% 39.6% 59,126 58,577
30% 30.5% 44,345 45,048
20% 20.1% 29,563 29,767
10% 10.0% 14,782 14,755
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,465
Calibration 2     145,672
Calibration 3     145,931
ssj_ops@calibrated=145,802
100% 100.1% 145,802 145,999
90% 90.5% 131,222 131,986
80% 80.6% 116,641 117,480
70% 70.7% 102,061 103,080
60% 60.0% 87,481 87,549
50% 50.6% 72,901 73,748
40% 40.1% 58,321 58,519
30% 30.5% 43,741 44,522
20% 20.1% 29,160 29,292
10% 10.1% 14,580 14,676
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,802
Calibration 2     144,963
Calibration 3     145,050
ssj_ops@calibrated=145,006
100% 99.0% 145,006 143,596
90% 90.0% 130,506 130,514
80% 79.6% 116,005 115,464
70% 69.8% 101,504 101,154
60% 59.6% 87,004 86,461
50% 50.3% 72,503 72,986
40% 39.9% 58,003 57,895
30% 29.8% 43,502 43,159
20% 19.9% 29,001 28,911
10% 9.7% 14,501 14,089
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,896
Calibration 2     147,130
Calibration 3     146,648
ssj_ops@calibrated=146,889
100% 100.1% 146,889 146,970
90% 89.7% 132,200 131,763
80% 79.5% 117,511 116,809
70% 69.8% 102,822 102,559
60% 60.4% 88,134 88,776
50% 50.0% 73,445 73,415
40% 40.2% 58,756 58,986
30% 30.0% 44,067 44,135
20% 20.2% 29,378 29,618
10% 9.7% 14,689 14,260
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,299
Calibration 2     144,748
Calibration 3     145,552
ssj_ops@calibrated=145,150
100% 100.0% 145,150 145,131
90% 89.7% 130,635 130,211
80% 79.4% 116,120 115,277
70% 69.9% 101,605 101,497
60% 60.2% 87,090 87,392
50% 50.0% 72,575 72,633
40% 39.9% 58,060 57,889
30% 30.1% 43,545 43,742
20% 20.0% 29,030 29,090
10% 9.9% 14,515 14,353
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,245
Calibration 2     145,531
Calibration 3     146,534
ssj_ops@calibrated=146,033
100% 99.8% 146,033 145,727
90% 90.6% 131,429 132,297
80% 79.0% 116,826 115,327
70% 70.2% 102,223 102,458
60% 59.8% 87,620 87,277
50% 49.9% 73,016 72,863
40% 40.0% 58,413 58,361
30% 30.1% 43,810 43,914
20% 20.1% 29,207 29,373
10% 10.1% 14,603 14,764
Active Idle   0 0
Graph of results
JVM 'WIN-V5FSI5RGBIG.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,212
Calibration 2     148,023
Calibration 3     148,362
ssj_ops@calibrated=148,193
100% 100.3% 148,193 148,702
90% 90.2% 133,373 133,707
80% 80.0% 118,554 118,498
70% 69.9% 103,735 103,630
60% 60.1% 88,916 89,137
50% 50.6% 74,096 75,055
40% 40.1% 59,277 59,382
30% 30.0% 44,458 44,454
20% 20.1% 29,639 29,748
10% 9.9% 14,819 14,612
Active Idle   0 0
Graph of results
