Hitachi, Ltd. HA8000/RS220-hHM | SPECpower_ssj2008 = 3,677 overall ssj_ops/watt | ||||
Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Jun 21, 2012 |
Hardware Availability: | May-2012 | Software Availability: | Dec-2011 | Publication: | Aug 22, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

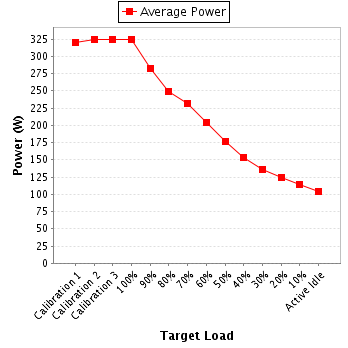

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 321 | 26.5 |
Calibration 2 | 324 | 26.6 |
Calibration 3 | 325 | 26.6 |
100% | 325 | 26.6 |
90% | 283 | 26.6 |
80% | 249 | 26.6 |
70% | 232 | 26.6 |
60% | 204 | 26.6 |
50% | 176 | 26.7 |
40% | 153 | 26.7 |
30% | 136 | 26.8 |
20% | 124 | 26.8 |
10% | 114 | 26.8 |
Active Idle | 104 | 26.7 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric Corporation |
Model: | WT210 |
Serial Number: | 91K717967 |
Connectivity: | RS-232C |
Input Connection: | Default |
Metrology Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
Accredited by: | Yokogawa Meters & Instruments Corporation |
Calibration Label: | S2012-06-50931 |
Date of Calibration: | 12-Jun-2012 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
Setup Description: | None |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.10.26.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 40 mm in front of SUT main airflow intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 200 | 300.0 | 1.68 | 2.0 | 0.956 | 321 | 0.4% |
Calibration 2 | 200 | 300.0 | 1.70 | 2.0 | 0.957 | 324 | 0.4% |
Calibration 3 | 200 | 300.0 | 1.70 | 2.0 | 0.957 | 325 | 0.4% |
100% | 200 | 300.0 | 1.70 | 2.0 | 0.957 | 325 | 0.4% |
90% | 200 | 300.0 | 1.50 | 2.0 | 0.945 | 283 | 0.4% |
80% | 200 | 300.0 | 1.33 | 2.0 | 0.935 | 249 | 0.5% |
70% | 200 | 300.0 | 1.25 | 2.0 | 0.928 | 232 | 0.5% |
60% | 200 | 300.0 | 1.12 | 2.0 | 0.914 | 204 | 0.5% |
50% | 200 | 300.0 | 0.980 | 2.0 | 0.898 | 176 | 0.6% |
40% | 200 | 300.0 | 0.870 | 1.0 | 0.883 | 153 | 0.5% |
30% | 200 | 300.0 | 0.781 | 1.0 | 0.871 | 136 | 0.5% |
20% | 200 | 300.0 | 0.720 | 1.0 | 0.858 | 124 | 0.5% |
10% | 200 | 300.0 | 0.671 | 1.0 | 0.847 | 114 | 0.5% |
Active Idle | 200 | 300.0 | 0.622 | 1.0 | 0.834 | 104 | 0.6% |
