Hitachi, Ltd. HA8000/RS210AM ssj_ops@100% = 1,327,737
ssj_ops@100% per JVM = 165,967
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jun 22, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,322,477
Calibration 2     1,330,549
Calibration 3     1,333,564
ssj_ops@calibrated=1,332,057
100% 99.7% 1,332,057 1,327,737
90% 90.0% 1,198,851 1,198,196
80% 80.0% 1,065,645 1,065,557
70% 69.9% 932,440 930,915
60% 59.9% 799,234 798,418
50% 49.9% 666,028 664,344
40% 40.0% 532,823 532,586
30% 30.1% 399,617 400,428
20% 20.0% 266,411 266,831
10% 10.0% 133,206 132,851
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS210AM
Form Factor: 1U
CPU Name: Intel Xeon E5-2470
CPU Characteristics: 8 core, 2.3GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.10 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 4 x 8192 MB
Memory Details: 8GB 2Rx4 PC3L-10600R ECC CL9; slots CPU1_DIMM1,2 and CPU2_DIMM1,2 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: DELTA DPS-800QB_A(Hitachi P/N:GQ-BP2361)
Disk Drive: 1 x 80GB SSD SATA (Hitachi P/N:GQ-UH7080NDM)
Disk Controller: LSI SAS 2208 (add-on card)
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom BCM5719 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -Xmx2g -Xms2g -Xmn1700m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start / affinity [NODE0 : f,f0,f00,f000,NODE1 : f,f0,f00,f000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: M2.1.04
Management Firmware Version: 09.15
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-0HKHL5JBL0S.001 164,356
WIN-0HKHL5JBL0S.002 166,156
WIN-0HKHL5JBL0S.003 165,351
WIN-0HKHL5JBL0S.004 168,076
WIN-0HKHL5JBL0S.005 164,675
WIN-0HKHL5JBL0S.006 167,873
WIN-0HKHL5JBL0S.007 166,082
WIN-0HKHL5JBL0S.008 165,167
ssj_ops@100% 1,327,737
ssj_ops@100% per JVM 165,967
Graph of per-instance results
JVM 'WIN-0HKHL5JBL0S.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,900
Calibration 2     163,619
Calibration 3     165,363
ssj_ops@calibrated=164,491
100% 99.9% 164,491 164,356
90% 89.4% 148,042 147,080
80% 79.1% 131,593 130,050
70% 70.0% 115,144 115,129
60% 59.7% 98,695 98,201
50% 49.4% 82,246 81,190
40% 40.4% 65,797 66,412
30% 30.0% 49,347 49,418
20% 19.8% 32,898 32,528
10% 10.1% 16,449 16,640
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0HKHL5JBL0S.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,910
Calibration 2     166,861
Calibration 3     166,754
ssj_ops@calibrated=166,807
100% 99.6% 166,807 166,156
90% 89.6% 150,127 149,471
80% 79.9% 133,446 133,245
70% 69.4% 116,765 115,702
60% 60.4% 100,084 100,723
50% 50.2% 83,404 83,729
40% 40.0% 66,723 66,761
30% 30.3% 50,042 50,484
20% 19.9% 33,361 33,209
10% 10.2% 16,681 16,982
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0HKHL5JBL0S.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,978
Calibration 2     166,166
Calibration 3     166,960
ssj_ops@calibrated=166,563
100% 99.3% 166,563 165,351
90% 90.0% 149,907 149,921
80% 79.2% 133,250 131,982
70% 69.3% 116,594 115,410
60% 60.3% 99,938 100,429
50% 50.0% 83,281 83,284
40% 40.0% 66,625 66,564
30% 30.4% 49,969 50,602
20% 20.5% 33,313 34,081
10% 10.2% 16,656 17,001
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0HKHL5JBL0S.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,803
Calibration 2     168,097
Calibration 3     168,733
ssj_ops@calibrated=168,415
100% 99.8% 168,415 168,076
90% 90.1% 151,574 151,668
80% 81.1% 134,732 136,584
70% 70.5% 117,891 118,766
60% 59.6% 101,049 100,343
50% 49.8% 84,208 83,830
40% 39.7% 67,366 66,807
30% 30.1% 50,525 50,662
20% 20.3% 33,683 34,188
10% 10.0% 16,842 16,782
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0HKHL5JBL0S.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,353
Calibration 2     165,956
Calibration 3     166,396
ssj_ops@calibrated=166,176
100% 99.1% 166,176 164,675
90% 89.8% 149,558 149,269
80% 79.2% 132,941 131,646
70% 70.1% 116,323 116,528
60% 60.1% 99,706 99,833
50% 50.3% 83,088 83,570
40% 39.8% 66,470 66,075
30% 29.7% 49,853 49,312
20% 20.2% 33,235 33,519
10% 9.9% 16,618 16,528
Active Idle   0 0

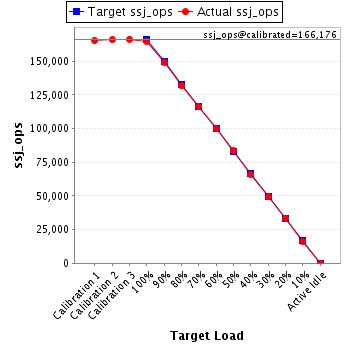

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0HKHL5JBL0S.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,547
Calibration 2     168,233
Calibration 3     167,942
ssj_ops@calibrated=168,087
100% 99.9% 168,087 167,873
90% 90.5% 151,279 152,092
80% 80.2% 134,470 134,888
70% 70.0% 117,661 117,616
60% 59.8% 100,852 100,569
50% 49.7% 84,044 83,511
40% 39.8% 67,235 66,937
30% 30.0% 50,426 50,405
20% 20.0% 33,617 33,595
10% 9.7% 16,809 16,386
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0HKHL5JBL0S.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,443
Calibration 2     165,961
Calibration 3     165,637
ssj_ops@calibrated=165,799
100% 100.2% 165,799 166,082
90% 90.2% 149,219 149,471
80% 80.5% 132,639 133,515
70% 70.1% 116,059 116,267
60% 60.0% 99,479 99,556
50% 49.8% 82,900 82,612
40% 40.0% 66,320 66,260
30% 30.2% 49,740 50,058
20% 19.7% 33,160 32,618
10% 9.7% 16,580 16,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0HKHL5JBL0S.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,542
Calibration 2     165,656
Calibration 3     165,779
ssj_ops@calibrated=165,717
100% 99.7% 165,717 165,167
90% 90.0% 149,145 149,224
80% 80.6% 132,574 133,647
70% 69.7% 116,002 115,496
60% 59.6% 99,430 98,763
50% 49.9% 82,859 82,618
40% 40.3% 66,287 66,771
30% 29.9% 49,715 49,489
20% 20.0% 33,143 33,094
10% 9.9% 16,572 16,430
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
