Fujitsu PRIMERGY TX100 S3p (Intel Xeon E3-1240V2) SPECpower_ssj2008 = 6,008 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jul 24, 2012
Hardware Availability: Aug-2012 Software Availability: Feb-2012 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 70.8 21.2
Calibration 2 72.1 21.3
Calibration 3 73.4 21.3
100% 72.5 21.3
90% 66.6 21.3
80% 54.1 21.3
70% 44.0 21.3
60% 39.3 21.3
50% 35.1 21.3
40% 31.7 21.4
30% 27.9 21.4
20% 24.1 21.4
10% 19.9 21.4
Active Idle 14.1 21.4

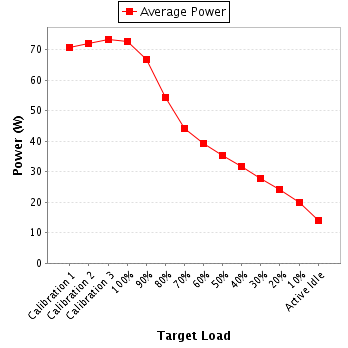

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 11080967
Date of Calibration: 03-Aug-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 8 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 229 250.0 0.351 0.6 0.880 70.8 0.1%
Calibration 2 229 250.0 0.356 0.6 0.884 72.1 0.1%
Calibration 3 229 250.0 0.361 0.6 0.888 73.4 0.1%
100% 229 250.0 0.358 0.6 0.885 72.5 0.1%
90% 229 250.0 0.337 0.6 0.864 66.6 0.1%
80% 229 250.0 0.292 0.6 0.810 54.1 0.2%
70% 229 250.0 0.251 0.3 0.766 44.0 0.1%
60% 229 250.0 0.232 0.3 0.742 39.3 0.1%
50% 229 250.0 0.222 0.3 0.694 35.1 0.1%
40% 228 250.0 0.219 0.3 0.634 31.7 0.1%
30% 228 250.0 0.215 0.3 0.567 27.9 0.2%
20% 229 250.0 0.204 0.3 0.516 24.1 0.2%
10% 228 250.0 0.187 0.3 0.465 19.9 0.2%
Active Idle 228 250.0 0.151 0.3 0.409 14.1 0.3%
Power details for pwr1
