Fujitsu PRIMERGY RX500 S7 (Intel Xeon E5-4640) ssj_ops@100% = 2,619,038
ssj_ops@100% per JVM = 163,690
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Sep 3, 2012
Hardware Availability: Sep-2012 Software Availability: Jun-2012 Publication: Sep 19, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,545,119
Calibration 2     2,633,569
Calibration 3     2,630,880
ssj_ops@calibrated=2,632,224
100% 99.5% 2,632,224 2,619,038
90% 90.1% 2,369,002 2,372,222
80% 80.0% 2,105,779 2,106,672
70% 70.1% 1,842,557 1,845,601
60% 60.2% 1,579,335 1,584,562
50% 50.0% 1,316,112 1,316,382
40% 40.1% 1,052,890 1,054,921
30% 30.0% 789,667 788,870
20% 20.0% 526,445 525,957
10% 10.0% 263,222 263,102
Active Idle   0 0
Graph of results
System Under Test
Set: 'RX500 S7'
Set Identifier: RX500 S7
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX500 S7 (Intel Xeon E5-4640)
Form Factor: 4U
CPU Name: Intel Xeon E5-4640
CPU Characteristics: 8-Core, 2.40GHz, 20MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1, 2, 4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 12 x 4096 MB
Memory Details: 4 GB 2Rx8 PC3L-12800R-11, ECC; slots 1A, 1B, 1C, 1E, 1F, 1G, 1I, 1J, 1K, 1M, 1N, 1O populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-E574-E10
Disk Drive: 1 x 100GB, SSD, 2.5" SATA, S26361-F5225-E100
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1900m -Xmx1900m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xF,0xF0,0xF00,0xF000]
JVM Instances: 16
JVM Initial Heap (MB): 1900
JVM Maximum Heap (MB): 1900
JVM Address Bits: 64
Boot Firmware Version: 01.10
Management Firmware Version: 6.55D
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-K1IRTERJUTK.001 165,482
WIN-K1IRTERJUTK.002 163,890
WIN-K1IRTERJUTK.003 166,041
WIN-K1IRTERJUTK.004 161,638
WIN-K1IRTERJUTK.005 164,241
WIN-K1IRTERJUTK.006 162,214
WIN-K1IRTERJUTK.007 162,295
WIN-K1IRTERJUTK.008 164,440
WIN-K1IRTERJUTK.009 163,486
WIN-K1IRTERJUTK.010 164,692
WIN-K1IRTERJUTK.011 165,149
WIN-K1IRTERJUTK.012 164,518
WIN-K1IRTERJUTK.013 165,177
WIN-K1IRTERJUTK.014 161,798
WIN-K1IRTERJUTK.015 161,738
WIN-K1IRTERJUTK.016 162,238
ssj_ops@100% 2,619,038
ssj_ops@100% per JVM 163,690

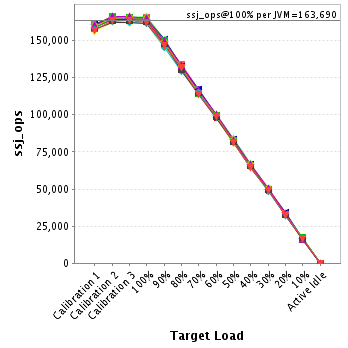

Graph of per-instance results
JVM 'WIN-K1IRTERJUTK.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,626
Calibration 2     165,980
Calibration 3     165,501
ssj_ops@calibrated=165,741
100% 99.8% 165,741 165,482
90% 89.9% 149,166 149,079
80% 80.8% 132,592 133,940
70% 70.7% 116,018 117,153
60% 59.9% 99,444 99,334
50% 50.5% 82,870 83,626
40% 40.3% 66,296 66,842
30% 29.9% 49,722 49,586
20% 20.2% 33,148 33,469
10% 9.9% 16,574 16,447
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,146
Calibration 2     164,591
Calibration 3     164,660
ssj_ops@calibrated=164,626
100% 99.6% 164,626 163,890
90% 90.0% 148,163 148,135
80% 80.0% 131,700 131,666
70% 71.0% 115,238 116,956
60% 60.0% 98,775 98,698
50% 49.7% 82,313 81,809
40% 39.8% 65,850 65,489
30% 29.7% 49,388 48,826
20% 19.9% 32,925 32,771
10% 9.7% 16,463 15,939
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     159,954
Calibration 2     166,269
Calibration 3     165,721
ssj_ops@calibrated=165,995
100% 100.0% 165,995 166,041
90% 90.9% 149,396 150,914
80% 79.9% 132,796 132,594
70% 69.9% 116,197 115,971
60% 60.5% 99,597 100,491
50% 50.6% 82,998 84,014
40% 40.5% 66,398 67,237
30% 29.8% 49,799 49,391
20% 19.9% 33,199 33,045
10% 10.1% 16,600 16,723
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,291
Calibration 2     162,397
Calibration 3     161,619
ssj_ops@calibrated=162,008
100% 99.8% 162,008 161,638
90% 89.5% 145,807 145,052
80% 80.4% 129,606 130,277
70% 70.6% 113,406 114,392
60% 60.1% 97,205 97,431
50% 49.6% 81,004 80,364
40% 40.3% 64,803 65,319
30% 29.8% 48,602 48,233
20% 20.1% 32,402 32,535
10% 9.8% 16,201 15,926
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,283
Calibration 2     165,648
Calibration 3     165,464
ssj_ops@calibrated=165,556
100% 99.2% 165,556 164,241
90% 89.8% 149,000 148,656
80% 79.4% 132,445 131,443
70% 69.6% 115,889 115,211
60% 60.6% 99,333 100,345
50% 49.5% 82,778 81,949
40% 40.3% 66,222 66,699
30% 30.1% 49,667 49,847
20% 19.8% 33,111 32,747
10% 10.0% 16,556 16,525
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     158,896
Calibration 2     164,274
Calibration 3     164,205
ssj_ops@calibrated=164,240
100% 98.8% 164,240 162,214
90% 90.2% 147,816 148,103
80% 80.0% 131,392 131,436
70% 69.6% 114,968 114,334
60% 60.4% 98,544 99,220
50% 49.6% 82,120 81,423
40% 40.1% 65,696 65,815
30% 29.8% 49,272 48,981
20% 19.6% 32,848 32,140
10% 10.0% 16,424 16,389
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,558
Calibration 2     163,489
Calibration 3     163,468
ssj_ops@calibrated=163,478
100% 99.3% 163,478 162,295
90% 90.3% 147,131 147,582
80% 79.8% 130,783 130,413
70% 70.1% 114,435 114,663
60% 60.2% 98,087 98,382
50% 50.8% 81,739 83,026
40% 39.9% 65,391 65,286
30% 30.1% 49,044 49,154
20% 20.4% 32,696 33,372
10% 9.7% 16,348 15,927
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,973
Calibration 2     165,983
Calibration 3     165,660
ssj_ops@calibrated=165,822
100% 99.2% 165,822 164,440
90% 90.2% 149,239 149,633
80% 80.3% 132,657 133,222
70% 70.6% 116,075 117,012
60% 60.0% 99,493 99,564
50% 49.7% 82,911 82,404
40% 40.0% 66,329 66,373
30% 30.0% 49,746 49,716
20% 19.8% 33,164 32,858
10% 10.1% 16,582 16,766
Active Idle   0 0

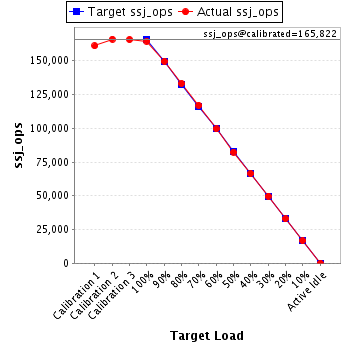

Graph of results
JVM 'WIN-K1IRTERJUTK.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     158,596
Calibration 2     164,170
Calibration 3     163,943
ssj_ops@calibrated=164,056
100% 99.7% 164,056 163,486
90% 90.0% 147,651 147,726
80% 80.2% 131,245 131,639
70% 70.0% 114,839 114,777
60% 59.7% 98,434 97,931
50% 50.6% 82,028 82,939
40% 40.2% 65,623 65,952
30% 29.9% 49,217 49,067
20% 20.2% 32,811 33,117
10% 10.0% 16,406 16,394
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     161,121
Calibration 2     165,779
Calibration 3     165,661
ssj_ops@calibrated=165,720
100% 99.4% 165,720 164,692
90% 90.7% 149,148 150,364
80% 79.8% 132,576 132,325
70% 70.7% 116,004 117,183
60% 59.9% 99,432 99,277
50% 50.4% 82,860 83,521
40% 40.2% 66,288 66,609
30% 30.2% 49,716 50,002
20% 20.5% 33,144 33,977
10% 10.1% 16,572 16,703
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,962
Calibration 2     165,424
Calibration 3     165,638
ssj_ops@calibrated=165,531
100% 99.8% 165,531 165,149
90% 90.5% 148,978 149,737
80% 79.5% 132,425 131,584
70% 69.1% 115,872 114,439
60% 60.0% 99,319 99,297
50% 49.8% 82,766 82,384
40% 39.9% 66,213 65,975
30% 29.9% 49,659 49,514
20% 20.0% 33,106 33,040
10% 10.3% 16,553 17,103
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     159,969
Calibration 2     164,776
Calibration 3     165,320
ssj_ops@calibrated=165,048
100% 99.7% 165,048 164,518
90% 90.0% 148,543 148,613
80% 80.1% 132,038 132,157
70% 69.6% 115,534 114,904
60% 60.1% 99,029 99,242
50% 49.9% 82,524 82,365
40% 40.1% 66,019 66,229
30% 30.4% 49,514 50,109
20% 19.9% 33,010 32,789
10% 10.1% 16,505 16,616
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,393
Calibration 2     166,294
Calibration 3     166,111
ssj_ops@calibrated=166,202
100% 99.4% 166,202 165,177
90% 90.0% 149,582 149,592
80% 80.2% 132,962 133,306
70% 69.9% 116,342 116,246
60% 60.3% 99,721 100,140
50% 49.8% 83,101 82,757
40% 40.1% 66,481 66,708
30% 30.3% 49,861 50,401
20% 20.3% 33,240 33,816
10% 9.8% 16,620 16,274
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,537
Calibration 2     162,690
Calibration 3     161,952
ssj_ops@calibrated=162,321
100% 99.7% 162,321 161,798
90% 89.4% 146,089 145,035
80% 79.6% 129,857 129,172
70% 70.8% 113,625 114,947
60% 60.6% 97,393 98,369
50% 49.9% 81,160 81,021
40% 39.9% 64,928 64,831
30% 29.7% 48,696 48,171
20% 20.0% 32,464 32,503
10% 10.2% 16,232 16,562
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,734
Calibration 2     162,302
Calibration 3     162,258
ssj_ops@calibrated=162,280
100% 99.7% 162,280 161,738
90% 90.7% 146,052 147,149
80% 79.8% 129,824 129,569
70% 70.1% 113,596 113,733
60% 60.2% 97,368 97,668
50% 50.0% 81,140 81,143
40% 39.9% 64,912 64,826
30% 30.1% 48,684 48,919
20% 19.7% 32,456 31,927
10% 10.0% 16,228 16,287
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,081
Calibration 2     163,503
Calibration 3     163,697
ssj_ops@calibrated=163,600
100% 99.2% 163,600 162,238
90% 89.8% 147,240 146,851
80% 80.6% 130,880 131,931
70% 69.5% 114,520 113,680
60% 60.6% 98,160 99,174
50% 49.9% 81,800 81,637
40% 39.6% 65,440 64,730
30% 29.9% 49,080 48,953
20% 19.5% 32,720 31,852
10% 10.1% 16,360 16,520
Active Idle   0 0
Graph of results
