SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY RX200 S7 (Intel Xeon E5-2660) | SPECpower_ssj2008 = 5,058 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Paderborn, NRW, Germany | Test Date: | Sep 12, 2012 |
| Hardware Availability: | Sep-2012 | Software Availability: | Jun-2012 | Publication: | Oct 3, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 100.1% | 1,442,516 | 258 | 5,589 |
| 90% | 90.0% | 1,298,055 | 227 | 5,724 |
| 80% | 80.0% | 1,152,756 | 194 | 5,950 |
| 70% | 69.9% | 1,007,363 | 162 | 6,201 |
| 60% | 60.1% | 866,630 | 141 | 6,140 |
| 50% | 50.0% | 720,651 | 126 | 5,741 |
| 40% | 40.0% | 576,970 | 114 | 5,044 |
| 30% | 30.0% | 432,337 | 104 | 4,142 |
| 20% | 20.1% | 289,669 | 95.5 | 3,033 |
| 10% | 10.0% | 143,521 | 86.0 | 1,668 |
| Active Idle | 0 | 59.8 | 0 | |
| ∑ssj_ops / ∑power = | 5,058 | |||
| Set Identifier: | RX200 S7 |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | Single Node |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY RX200 S7 (Intel Xeon E5-2660) |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon E5-2660 |
| CPU Characteristics: | 8-Core, 2.20GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.0 GHz) |
| CPU Frequency (MHz): | 2200 |
| CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
| Hardware Threads: | 32 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 24 |
| # and size of DIMM: | 6 x 4096 MB |
| Memory Details: | 4 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B, 1C, 1D, 1E, 1F populated |
| Power Supply Quantity and Rating (W): | 1 x 450 |
| Power Supply Details: | Fujitsu Technology Solutions S26113-E575-E10 |
| Disk Drive: | 1 x 250GB, HDD, 2.5" SATA, S26361-F3708-E250 |
| Disk Controller: | Integrated SATA Controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Intel I350 Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled ("Fujitsu Enhanced Power Settings" power plan) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise SP1 |
| OS Version: | Version 6.1.7601 Service Pack 1 Build 7601 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 |
| JVM Affinity: | start /NODE [0,1] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000] |
| JVM Instances: | 16 |
| JVM Initial Heap (MB): | 1024 |
| JVM Maximum Heap (MB): | 1024 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | R2.4.0 |
| Management Firmware Version: | 6.53A |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY RX100 S3 |
| CPU Description: | Pentium D 950 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 Enterprise Edition + SP1 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32) |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | ZES Zimmer Electronic Systems GmbH |
| Model: | LMG95 |
| Serial Number: | 11780806 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Metrology Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | Kalibrierdienst Stenger |
| Calibration Label: | 12084181 |
| Date of Calibration: | 06-Aug-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 258 | 22.1 |
| 90% | 227 | 22.1 |
| 80% | 194 | 22.1 |
| 70% | 162 | 22.0 |
| 60% | 141 | 22.0 |
| 50% | 126 | 21.9 |
| 40% | 114 | 21.9 |
| 30% | 104 | 21.9 |
| 20% | 95.5 | 21.8 |
| 10% | 86.0 | 21.8 |
| Active Idle | 59.8 | 21.6 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 230V / 50 Hz / 1 phase / 2 wires | 21.6 | 117 |

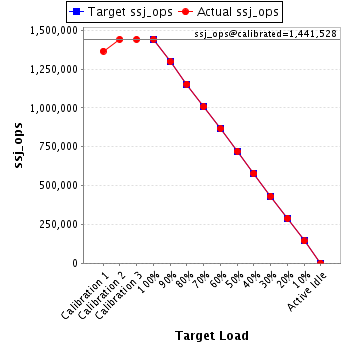

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,365,632 | ||
| Calibration 2 | 1,441,482 | ||
| Calibration 3 | 1,441,573 | ||
| ssj_ops@calibrated=1,441,528 | |||
| 100% | 100.1% | 1,441,528 | 1,442,516 |
| 90% | 90.0% | 1,297,375 | 1,298,055 |
| 80% | 80.0% | 1,153,222 | 1,152,756 |
| 70% | 69.9% | 1,009,069 | 1,007,363 |
| 60% | 60.1% | 864,917 | 866,630 |
| 50% | 50.0% | 720,764 | 720,651 |
| 40% | 40.0% | 576,611 | 576,970 |
| 30% | 30.0% | 432,458 | 432,337 |
| 20% | 20.1% | 288,306 | 289,669 |
| 10% | 10.0% | 144,153 | 143,521 |
| Active Idle | 0 | 0 | |
