Fujitsu PRIMERGY RX350 S7 (Intel Xeon E5-2660) SPECpower_ssj2008 = 5,347 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Sep 15, 2012
Hardware Availability: Sep-2012 Software Availability: Jun-2012 Publication: Oct 3, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 242 21.9
Calibration 2 245 21.9
Calibration 3 245 21.9
100% 245 21.9
90% 216 22.0
80% 185 22.0
70% 156 22.0
60% 133 22.0
50% 117 22.0
40% 106 22.0
30% 96.4 22.0
20% 86.6 21.9
10% 76.5 21.9
Active Idle 55.2 21.9

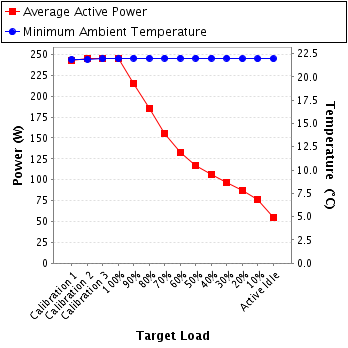

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 12084181
Date of Calibration: 06-Aug-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 250.0 1.07 2.5 0.990 242 0.1%
Calibration 2 230 250.0 1.08 2.5 0.990 245 0.1%
Calibration 3 230 250.0 1.08 2.5 0.990 245 0.1%
100% 230 250.0 1.08 2.5 0.990 245 0.1%
90% 230 250.0 0.956 2.5 0.986 216 0.2%
80% 231 250.0 0.821 2.5 0.982 185 0.2%
70% 231 250.0 0.687 2.5 0.981 156 0.2%
60% 231 250.0 0.589 2.5 0.979 133 0.2%
50% 231 250.0 0.520 2.5 0.978 117 0.3%
40% 230 250.0 0.473 2.5 0.975 106 0.3%
30% 231 250.0 0.431 2.5 0.971 96.4 0.3%
20% 231 250.0 0.389 2.5 0.965 86.6 0.4%
10% 231 250.0 0.346 0.6 0.958 76.5 0.1%
Active Idle 231 250.0 0.257 0.6 0.929 55.2 0.2%
Power details for pwr1
