Fujitsu PRIMERGY RX350 S7 (Intel Xeon E5-2660) ssj_ops@100% = 1,432,623
ssj_ops@100% per JVM = 89,539
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Sep 15, 2012
Hardware Availability: Sep-2012 Software Availability: Jun-2012 Publication: Oct 3, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,354,386
Calibration 2     1,431,860
Calibration 3     1,433,626
ssj_ops@calibrated=1,432,743
100% 100.0% 1,432,743 1,432,623
90% 89.8% 1,289,469 1,286,820
80% 80.1% 1,146,195 1,147,726
70% 70.1% 1,002,920 1,003,643
60% 59.7% 859,646 855,351
50% 49.8% 716,372 714,045
40% 39.9% 573,097 571,551
30% 30.2% 429,823 432,416
20% 20.0% 286,549 286,840
10% 10.1% 143,274 144,587
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX350 S7 (Intel Xeon E5-2660)
Form Factor: 4U
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8-Core, 2.20GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B, 1C, 1D, 1E, 1F populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: Fujitsu Technology Solutions S26113-E575-E10
Disk Drive: 1 x 250GB, HDD, 2.5" SATA, S26361-F3708-E250
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /NODE [0,1] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: R1.15.0
Management Firmware Version: 6.53A
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-K1IRTERJUTK.001 88,976
WIN-K1IRTERJUTK.002 88,587
WIN-K1IRTERJUTK.003 89,852
WIN-K1IRTERJUTK.004 88,866
WIN-K1IRTERJUTK.005 88,951
WIN-K1IRTERJUTK.006 90,190
WIN-K1IRTERJUTK.007 88,874
WIN-K1IRTERJUTK.008 89,528
WIN-K1IRTERJUTK.009 89,634
WIN-K1IRTERJUTK.010 90,122
WIN-K1IRTERJUTK.011 89,686
WIN-K1IRTERJUTK.012 89,643
WIN-K1IRTERJUTK.013 90,098
WIN-K1IRTERJUTK.014 89,847
WIN-K1IRTERJUTK.015 90,230
WIN-K1IRTERJUTK.016 89,540
ssj_ops@100% 1,432,623
ssj_ops@100% per JVM 89,539

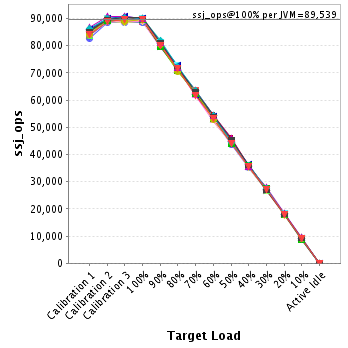

Graph of per-instance results
JVM 'WIN-K1IRTERJUTK.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,819
Calibration 2     89,596
Calibration 3     89,545
ssj_ops@calibrated=89,571
100% 99.3% 89,571 88,976
90% 90.5% 80,614 81,051
80% 79.9% 71,656 71,525
70% 70.8% 62,699 63,412
60% 59.4% 53,742 53,218
50% 49.1% 44,785 43,974
40% 40.0% 35,828 35,857
30% 30.1% 26,871 26,998
20% 19.9% 17,914 17,866
10% 9.8% 8,957 8,802
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,836
Calibration 2     88,619
Calibration 3     88,382
ssj_ops@calibrated=88,500
100% 100.1% 88,500 88,587
90% 91.1% 79,650 80,584
80% 80.6% 70,800 71,363
70% 70.6% 61,950 62,476
60% 59.8% 53,100 52,938
50% 49.2% 44,250 43,576
40% 39.8% 35,400 35,216
30% 30.3% 26,550 26,776
20% 20.1% 17,700 17,804
10% 10.0% 8,850 8,833
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,624
Calibration 2     89,456
Calibration 3     89,128
ssj_ops@calibrated=89,292
100% 100.6% 89,292 89,852
90% 89.7% 80,363 80,067
80% 80.3% 71,434 71,721
70% 69.8% 62,504 62,313
60% 59.4% 53,575 53,043
50% 49.2% 44,646 43,903
40% 40.0% 35,717 35,738
30% 29.8% 26,788 26,632
20% 20.2% 17,858 18,059
10% 10.6% 8,929 9,483
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,550
Calibration 2     88,820
Calibration 3     88,600
ssj_ops@calibrated=88,710
100% 100.2% 88,710 88,866
90% 90.4% 79,839 80,198
80% 80.5% 70,968 71,456
70% 70.0% 62,097 62,102
60% 59.9% 53,226 53,155
50% 50.6% 44,355 44,927
40% 39.8% 35,484 35,289
30% 30.2% 26,613 26,792
20% 19.8% 17,742 17,602
10% 10.1% 8,871 8,974
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,929
Calibration 2     88,887
Calibration 3     88,904
ssj_ops@calibrated=88,896
100% 100.1% 88,896 88,951
90% 89.4% 80,006 79,497
80% 80.4% 71,117 71,501
70% 69.4% 62,227 61,682
60% 58.7% 53,337 52,212
50% 49.5% 44,448 44,018
40% 40.3% 35,558 35,798
30% 30.2% 26,669 26,803
20% 20.2% 17,779 17,935
10% 10.0% 8,890 8,849
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,239
Calibration 2     90,113
Calibration 3     89,818
ssj_ops@calibrated=89,966
100% 100.2% 89,966 90,190
90% 90.1% 80,969 81,086
80% 80.7% 71,972 72,619
70% 69.8% 62,976 62,803
60% 59.3% 53,979 53,363
50% 50.3% 44,983 45,295
40% 39.4% 35,986 35,438
30% 30.0% 26,990 26,992
20% 20.1% 17,993 18,124
10% 10.1% 8,997 9,062
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,978
Calibration 2     88,558
Calibration 3     89,175
ssj_ops@calibrated=88,867
100% 100.0% 88,867 88,874
90% 89.5% 79,980 79,572
80% 80.4% 71,093 71,455
70% 70.5% 62,207 62,609
60% 58.8% 53,320 52,253
50% 49.6% 44,433 44,117
40% 39.8% 35,547 35,394
30% 30.2% 26,660 26,795
20% 19.8% 17,773 17,612
10% 9.8% 8,887 8,689
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,593
Calibration 2     88,979
Calibration 3     89,578
ssj_ops@calibrated=89,279
100% 100.3% 89,279 89,528
90% 89.4% 80,351 79,812
80% 80.0% 71,423 71,431
70% 71.0% 62,495 63,380
60% 60.8% 53,567 54,253
50% 49.9% 44,639 44,585
40% 39.9% 35,711 35,629
30% 30.2% 26,784 26,919
20% 20.3% 17,856 18,150
10% 10.2% 8,928 9,137
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,474
Calibration 2     89,675
Calibration 3     90,351
ssj_ops@calibrated=90,013
100% 99.6% 90,013 89,634
90% 88.7% 81,011 79,852
80% 80.2% 72,010 72,175
70% 70.0% 63,009 63,047
60% 60.4% 54,008 54,392
50% 50.9% 45,006 45,806
40% 40.1% 36,005 36,073
30% 29.9% 27,004 26,952
20% 19.9% 18,003 17,908
10% 10.0% 9,001 8,983
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,892
Calibration 2     90,035
Calibration 3     90,784
ssj_ops@calibrated=90,410
100% 99.7% 90,410 90,122
90% 89.4% 81,369 80,808
80% 80.3% 72,328 72,620
70% 68.7% 63,287 62,075
60% 59.8% 54,246 54,056
50% 49.7% 45,205 44,908
40% 40.3% 36,164 36,435
30% 30.1% 27,123 27,250
20% 19.9% 18,082 17,979
10% 10.0% 9,041 9,066
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,239
Calibration 2     89,405
Calibration 3     89,507
ssj_ops@calibrated=89,456
100% 100.3% 89,456 89,686
90% 89.0% 80,510 79,644
80% 79.4% 71,565 70,995
70% 69.9% 62,619 62,532
60% 59.5% 53,674 53,241
50% 49.2% 44,728 44,009
40% 40.0% 35,782 35,796
30% 30.6% 26,837 27,370
20% 20.1% 17,891 17,967
10% 10.0% 8,946 8,908
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,963
Calibration 2     89,972
Calibration 3     88,891
ssj_ops@calibrated=89,431
100% 100.2% 89,431 89,643
90% 90.0% 80,488 80,477
80% 78.9% 71,545 70,573
70% 70.6% 62,602 63,156
60% 59.2% 53,659 52,983
50% 50.3% 44,716 44,961
40% 39.9% 35,773 35,680
30% 30.2% 26,829 27,018
20% 20.1% 17,886 17,967
10% 10.0% 8,943 8,933
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,571
Calibration 2     90,772
Calibration 3     90,814
ssj_ops@calibrated=90,793
100% 99.2% 90,793 90,098
90% 89.2% 81,713 81,027
80% 79.5% 72,634 72,173
70% 70.0% 63,555 63,556
60% 59.9% 54,476 54,354
50% 50.6% 45,396 45,912
40% 39.3% 36,317 35,695
30% 30.6% 27,238 27,774
20% 20.1% 18,159 18,269
10% 10.5% 9,079 9,544
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,191
Calibration 2     90,203
Calibration 3     90,298
ssj_ops@calibrated=90,250
100% 99.6% 90,250 89,847
90% 90.8% 81,225 81,917
80% 80.1% 72,200 72,332
70% 70.4% 63,175 63,573
60% 60.3% 54,150 54,379
50% 49.2% 45,125 44,436
40% 39.9% 36,100 35,984
30% 30.4% 27,075 27,433
20% 19.8% 18,050 17,911
10% 10.0% 9,025 9,062
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,264
Calibration 2     89,719
Calibration 3     90,316
ssj_ops@calibrated=90,017
100% 100.2% 90,017 90,230
90% 90.2% 81,016 81,222
80% 80.0% 72,014 72,043
70% 70.4% 63,012 63,339
60% 60.3% 54,010 54,308
50% 50.6% 45,009 45,532
40% 39.9% 36,007 35,915
30% 29.6% 27,005 26,613
20% 19.8% 18,003 17,820
10% 10.1% 9,002 9,091
Active Idle   0 0
Graph of results
JVM 'WIN-K1IRTERJUTK.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,222
Calibration 2     89,053
Calibration 3     89,535
ssj_ops@calibrated=89,294
100% 100.3% 89,294 89,540
90% 89.6% 80,364 80,005
80% 80.3% 71,435 71,745
70% 69.0% 62,506 61,588
60% 59.6% 53,576 53,205
50% 49.4% 44,647 44,088
40% 39.9% 35,717 35,613
30% 30.6% 26,788 27,300
20% 20.0% 17,859 17,868
10% 10.3% 8,929 9,171
Active Idle   0 0
Graph of results
