Fujitsu PRIMERGY TX300 S7 (Intel Xeon E5-2660) SPECpower_ssj2008 = 5,372 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Sep 17, 2012
Hardware Availability: Sep-2012 Software Availability: Jun-2012 Publication: Oct 3, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.1% 1,440,306 246 5,866
90% 89.8% 1,292,733 216 5,991
80% 79.8% 1,148,620 184 6,242
70% 70.1% 1,009,452 155 6,492
60% 59.9% 862,798 133 6,472
50% 49.9% 718,444 118 6,092
40% 40.1% 576,982 107 5,410
30% 30.1% 432,781 96.4 4,490
20% 19.9% 286,456 86.5 3,312
10% 10.0% 143,586 76.3 1,882
Active Idle 0 55.1 0
∑ssj_ops / ∑power = 5,372
Graph of results
System Under Test
Set: 'TX300 S7'
Set Identifier: TX300 S7
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY TX300 S7 (Intel Xeon E5-2660)
Form Factor: Tower
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8-Core, 2.20GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B, 1C, 1D, 1E, 1F populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: Fujitsu Technology Solutions S26113-E575-E10
Disk Drive: 1 x 250GB, HDD, 2.5" SATA, S26361-F3708-E250
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /NODE [0,1] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: R1.15.0
Management Firmware Version: 6.53A
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX100 S3
CPU Description: Pentium D 950
Memory amount (GB): 2
Software
Operating System (OS): Windows Server 2003 Enterprise Edition + SP1
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 12084181
Date of Calibration: 06-Aug-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 246 20.4
90% 216 20.4
80% 184 20.4
70% 155 20.4
60% 133 20.4
50% 118 20.4
40% 107 20.4
30% 96.4 20.4
20% 86.5 20.4
10% 76.3 20.4
Active Idle 55.1 20.3
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 20.3 117
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,360,079
Calibration 2     1,437,123
Calibration 3     1,441,377
ssj_ops@calibrated=1,439,250
100% 100.1% 1,439,250 1,440,306
90% 89.8% 1,295,325 1,292,733
80% 79.8% 1,151,400 1,148,620
70% 70.1% 1,007,475 1,009,452
60% 59.9% 863,550 862,798
50% 49.9% 719,625 718,444
40% 40.1% 575,700 576,982
30% 30.1% 431,775 432,781
20% 19.9% 287,850 286,456
10% 10.0% 143,925 143,586
Active Idle   0 0

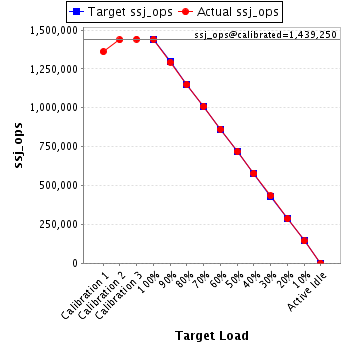

Graph of results
See the Host Performance Report for additional details.
