SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Supermicro Computer, Inc. 1022G-NTF | SPECpower_ssj2008 = 4,040 overall ssj_ops/watt | ||||
| Test Sponsor: | Advanced Micro Devices | SPEC License #: | 49 | Test Method: | Single Node |
| Tested By: | Advanced Micro Devices | Test Location: | Austin, TX USA | Test Date: | Oct 11, 2012 |
| Hardware Availability: | Nov-2012 | Software Availability: | Apr-2012 | Publication: | Nov 7, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 1,636,298 | 308 | 5,309 |
| 90% | 90.1% | 1,479,642 | 293 | 5,047 |
| 80% | 79.9% | 1,313,487 | 275 | 4,774 |
| 70% | 69.7% | 1,145,856 | 256 | 4,475 |
| 60% | 60.1% | 987,523 | 230 | 4,289 |
| 50% | 50.0% | 820,710 | 205 | 4,006 |
| 40% | 40.2% | 660,086 | 181 | 3,651 |
| 30% | 30.1% | 494,296 | 158 | 3,136 |
| 20% | 20.1% | 330,858 | 137 | 2,423 |
| 10% | 9.9% | 163,276 | 115 | 1,418 |
| Active Idle | 0 | 77.9 | 0 | |
| ∑ssj_ops / ∑power = | 4,040 | |||
| Set Identifier: | sm1022g |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Supermicro Computer, Inc. |
| Model: | 1022G-NTF |
| Form Factor: | 1U |
| CPU Name: | AMD Opteron 6380 (AMD Turbo CORE Technology up to 3.40GHz) |
| CPU Characteristics: | 16 Core, 2.5GHz, 16MB L3 Cache |
| CPU Frequency (MHz): | 2500 |
| CPU(s) Enabled: | 32 cores, 2 chips, 16 cores/chip |
| Hardware Threads: | 32 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 512 KB I + 256 KB D on chip per chip |
| Secondary Cache: | 16 MB I+D on chip per chip, 2 MB shared / 2 cores |
| Tertiary Cache: | 16 MB I+D on chip per chip, 8 MB shared / 8 cores |
| Other Cache: | None |
| Memory Amount (GB): | 64 |
| # and size of DIMM: | 8 x 8 GB |
| Memory Details: | 8GB 2Rx4 PC3L-12800R-11-11; slots 1a, 2a, 3a, 4a populated per socket |
| Power Supply Quantity and Rating (W): | 1 x 560 |
| Power Supply Details: | Supermicro PWS-563-1H20 |
| Disk Drive: | 1 x 240 GB Corsair F240 SATA SSD |
| Disk Controller: | Integrated SATA Controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Intel 82576 Gigabit Dual Port Ethernet |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced Power profile |
| Operating System (OS): | Windows Server 2008 R2 Enterprise |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209(JIT enabled, AOT enabled)) |
| JVM Command-line Options: | -Xms1875m -Xmn1400m -Xmx1875m -Xlp -Xaggressive -XlockReservation -Xcompressedrefs -Xnoloa -Xgcpolicy:gencon -Xthr:minimizeUserCPU -Xgcthreads2 |
| JVM Affinity: | start /affinity [03,0C,30,C0] /node [0|1|2|3] |
| JVM Instances: | 16 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 3.0a 10/3/2012 |
| Management Firmware Version: | v2.36 |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | SUT |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | Optiplex GX620 |
| CPU Description: | Intel Pentium 4 670 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows 7 Enterprise x86 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java(TM) SE Runtime Environment (build 1.6.0_21-b07) |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91M242010 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | Yokogawa Corporation of America |
| Calibration Label: | 051412-91M242010 |
| Date of Calibration: | 14-May-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.30.2.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 308 | 22.3 |
| 90% | 293 | 22.3 |
| 80% | 275 | 22.3 |
| 70% | 256 | 22.3 |
| 60% | 230 | 21.6 |
| 50% | 205 | 21.5 |
| 40% | 181 | 21.4 |
| 30% | 158 | 21.6 |
| 20% | 137 | 21.5 |
| 10% | 115 | 21.6 |
| Active Idle | 77.9 | 21.5 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 21.4 | 168 |

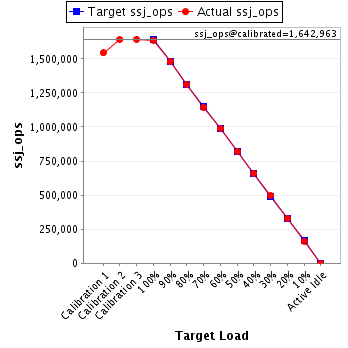

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,542,923 | ||
| Calibration 2 | 1,641,503 | ||
| Calibration 3 | 1,644,422 | ||
| ssj_ops@calibrated=1,642,963 | |||
| 100% | 99.6% | 1,642,963 | 1,636,298 |
| 90% | 90.1% | 1,478,666 | 1,479,642 |
| 80% | 79.9% | 1,314,370 | 1,313,487 |
| 70% | 69.7% | 1,150,074 | 1,145,856 |
| 60% | 60.1% | 985,778 | 987,523 |
| 50% | 50.0% | 821,481 | 820,710 |
| 40% | 40.2% | 657,185 | 660,086 |
| 30% | 30.1% | 492,889 | 494,296 |
| 20% | 20.1% | 328,593 | 330,858 |
| 10% | 9.9% | 164,296 | 163,276 |
| Active Idle | 0 | 0 | |
