IBM Corporation IBM System x3500 M4 ssj_ops@100% = 1,459,934
ssj_ops@100% per JVM = 182,492
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Oct 16, 2012
Hardware Availability: Sep-2012 Software Availability: Dec-2012 Publication: Oct 31, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,428,146
Calibration 2     1,460,994
Calibration 3     1,459,503
ssj_ops@calibrated=1,460,249
100% 100.0% 1,460,249 1,459,934
90% 89.7% 1,314,224 1,309,830
80% 80.1% 1,168,199 1,170,053
70% 70.1% 1,022,174 1,023,977
60% 60.1% 876,149 876,907
50% 50.0% 730,124 730,516
40% 39.8% 584,099 581,485
30% 29.8% 438,075 435,180
20% 20.1% 292,050 292,828
10% 10.0% 146,025 145,855
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3500 M4
Form Factor: Tower
CPU Name: Intel Xeon E5-2660 2.20 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8-Core, 2.20 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1, 4, 12, 13, 16 and 24 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: IBM 750w PSU(43X3313)
Disk Drive: 1 x 128 GB SSD, IBM P/N: 90Y8648
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 4 x Integrated Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: IBM Power Profile
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: Y5E123D
Management Firmware Version: 1AOO31M
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-8D8J1M09146.001 180,343
WIN-8D8J1M09146.002 182,607
WIN-8D8J1M09146.003 181,498
WIN-8D8J1M09146.004 185,135
WIN-8D8J1M09146.005 182,359
WIN-8D8J1M09146.006 183,359
WIN-8D8J1M09146.007 183,841
WIN-8D8J1M09146.008 180,792
ssj_ops@100% 1,459,934
ssj_ops@100% per JVM 182,492
Graph of per-instance results

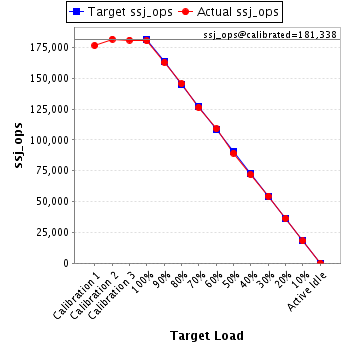

JVM 'WIN-8D8J1M09146.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,549
Calibration 2     181,697
Calibration 3     180,980
ssj_ops@calibrated=181,338
100% 99.5% 181,338 180,343
90% 89.8% 163,205 162,883
80% 80.2% 145,071 145,502
70% 69.7% 126,937 126,365
60% 60.1% 108,803 109,048
50% 49.2% 90,669 89,274
40% 39.6% 72,535 71,771
30% 30.0% 54,402 54,445
20% 20.1% 36,268 36,394
10% 10.0% 18,134 18,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8D8J1M09146.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,985
Calibration 2     183,498
Calibration 3     182,958
ssj_ops@calibrated=183,228
100% 99.7% 183,228 182,607
90% 89.3% 164,905 163,650
80% 80.5% 146,582 147,500
70% 70.2% 128,260 128,583
60% 60.0% 109,937 109,978
50% 50.4% 91,614 92,319
40% 39.9% 73,291 73,104
30% 30.3% 54,968 55,478
20% 20.0% 36,646 36,577
10% 10.1% 18,323 18,555
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8D8J1M09146.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,569
Calibration 2     181,864
Calibration 3     181,784
ssj_ops@calibrated=181,824
100% 99.8% 181,824 181,498
90% 90.2% 163,642 164,017
80% 79.6% 145,459 144,701
70% 70.9% 127,277 128,915
60% 60.0% 109,094 109,007
50% 50.1% 90,912 91,025
40% 40.1% 72,730 73,002
30% 30.0% 54,547 54,607
20% 20.0% 36,365 36,312
10% 10.1% 18,182 18,274
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8D8J1M09146.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,096
Calibration 2     185,238
Calibration 3     185,407
ssj_ops@calibrated=185,322
100% 99.9% 185,322 185,135
90% 90.1% 166,790 166,941
80% 80.2% 148,258 148,632
70% 70.1% 129,726 129,893
60% 59.8% 111,193 110,735
50% 50.6% 92,661 93,779
40% 39.8% 74,129 73,686
30% 29.9% 55,597 55,331
20% 20.2% 37,064 37,440
10% 10.1% 18,532 18,733
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8D8J1M09146.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,574
Calibration 2     182,926
Calibration 3     181,795
ssj_ops@calibrated=182,361
100% 100.0% 182,361 182,359
90% 88.9% 164,124 162,183
80% 79.7% 145,888 145,423
70% 70.0% 127,652 127,633
60% 60.0% 109,416 109,479
50% 50.1% 91,180 91,386
40% 40.2% 72,944 73,295
30% 29.4% 54,708 53,604
20% 19.9% 36,472 36,213
10% 10.0% 18,236 18,220
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8D8J1M09146.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     179,060
Calibration 2     182,747
Calibration 3     182,968
ssj_ops@calibrated=182,857
100% 100.3% 182,857 183,359
90% 89.9% 164,572 164,348
80% 80.6% 146,286 147,408
70% 70.6% 128,000 129,187
60% 59.7% 109,714 109,257
50% 50.2% 91,429 91,760
40% 39.8% 73,143 72,823
30% 29.2% 54,857 53,390
20% 20.0% 36,571 36,626
10% 10.0% 18,286 18,270
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8D8J1M09146.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     178,694
Calibration 2     183,423
Calibration 3     183,354
ssj_ops@calibrated=183,389
100% 100.2% 183,389 183,841
90% 89.8% 165,050 164,769
80% 80.3% 146,711 147,194
70% 70.0% 128,372 128,304
60% 59.9% 110,033 109,821
50% 50.1% 91,694 91,794
40% 39.4% 73,356 72,278
30% 29.6% 55,017 54,203
20% 20.1% 36,678 36,811
10% 9.7% 18,339 17,832
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8D8J1M09146.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,619
Calibration 2     179,602
Calibration 3     180,257
ssj_ops@calibrated=179,929
100% 100.5% 179,929 180,792
90% 89.5% 161,936 161,038
80% 79.9% 143,943 143,692
70% 69.5% 125,951 125,096
60% 60.9% 107,958 109,582
50% 49.6% 89,965 89,180
40% 39.8% 71,972 71,527
30% 30.1% 53,979 54,122
20% 20.3% 35,986 36,455
10% 9.9% 17,993 17,900
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
