Supermicro Inc. System 6027R-WRF SPECpower_ssj2008 = 3,915 overall ssj_ops/watt
Test Sponsor: Supermicro Inc. SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Inc. Test Location: San Jose, CA, USA Test Date: Jun 12, 2012
Hardware Availability: Jun-2012 Software Availability: Apr-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 270 24.5
Calibration 2 272 25.2
Calibration 3 270 24.6
100% 272 24.7
90% 248 24.7
80% 211 24.4
70% 191 24.8
60% 176 24.4
50% 160 24.9
40% 143 24.4
30% 128 24.7
20% 113 24.2
10% 100 24.1
Active Idle 83.6 24.6
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K308533
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: SE Laboratories
Calibration Label: C56-0082
Date of Calibration: 8-Aug-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H Host
Driver Version: 5.30
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main air intake
Notes
="SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this java version"
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 206 300.0 1.34 2.0 0.977 270 0.4%
Calibration 2 207 300.0 1.35 2.0 0.977 272 0.4%
Calibration 3 207 300.0 1.34 2.0 0.977 270 0.4%
100% 207 300.0 1.35 2.0 0.977 272 0.4%
90% 207 300.0 1.23 2.0 0.973 248 0.4%
80% 208 300.0 1.05 2.0 0.964 211 0.4%
70% 208 300.0 0.958 2.0 0.957 191 0.5%
60% 208 300.0 0.891 1.0 0.949 176 0.3%
50% 208 300.0 0.822 1.0 0.938 160 0.4%
40% 208 300.0 0.752 1.0 0.917 143 0.4%
30% 208 300.0 0.673 1.0 0.917 128 0.4%
20% 208 300.0 0.604 1.0 0.898 113 0.5%
10% 209 300.0 0.547 1.0 0.879 100 0.5%
Active Idle 209 300.0 0.475 1.0 0.842 83.6 0.6%

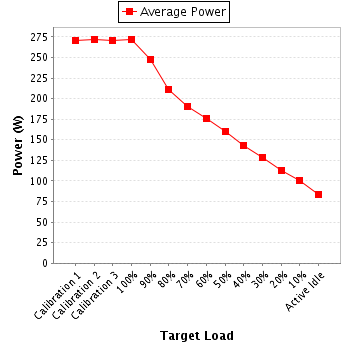

Power details for pwr1
