Supermicro Inc. System 6027R-WRF | ssj_ops@100% = 1,296,979 ssj_ops@100% per JVM = 81,061 |
||||
Test Sponsor: | Supermicro Inc. | SPEC License #: | 1176 | Test Method: | Single Node |
Tested By: | Supermicro Inc. | Test Location: | San Jose, CA, USA | Test Date: | Jun 12, 2012 |
Hardware Availability: | Jun-2012 | Software Availability: | Apr-2012 | Publication: | Nov 14, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,297,469 | ||
Calibration 2 | 1,300,186 | ||
Calibration 3 | 1,301,944 | ||
ssj_ops@calibrated=1,301,065 | |||
100% | 99.7% | 1,301,065 | 1,296,979 |
90% | 90.0% | 1,170,959 | 1,170,407 |
80% | 80.1% | 1,040,852 | 1,042,121 |
70% | 70.0% | 910,746 | 910,737 |
60% | 60.2% | 780,639 | 783,271 |
50% | 50.0% | 650,533 | 650,226 |
40% | 39.7% | 520,426 | 516,693 |
30% | 30.0% | 390,320 | 390,209 |
20% | 20.1% | 260,213 | 260,974 |
10% | 10.1% | 130,107 | 131,008 |
Active Idle | 0 | 0 |
Set Identifier: | 6027R |
Set Description: | 6027R-WRF |
# of Identical Nodes: | 1 |
Comment: | Here is a comment for this set. |
Hardware | |
---|---|
Hardware Vendor: | Supermicro Inc. |
Model: | System 6027R-WRF |
Form Factor: | 2U |
CPU Name: | Intel Xeon E5-2660 (2.20GHz) |
CPU Characteristics: | 8-Core, 2.20GHz (Intel Turbo boost Technology up to 3.00GHz), 20MB L3 Cache |
CPU Frequency (MHz): | 2200 |
CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
Hardware Threads: | 32 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 MB I+D on chip per chip |
Tertiary Cache: | 20 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 32 |
# and size of DIMM: | 8 x 4096 MB |
Memory Details: | 4GB 2Rx8 PC3-10600E-9-10 slots 1-3-5-7-9-11-13-15 populated. |
Power Supply Quantity and Rating (W): | 1 x 740 |
Power Supply Details: | Supermicro P/N:PWS-741P-1R |
Disk Drive: | 1 x 250GB SATA 3.0Gb/s 7200RPM Supermicro P/N:HDDT0250-WD2503ABYX |
Disk Controller: | Onboard SATA Intel C602 Chipset |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Dual Port Gigabit Ethernet |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | KVM |
Mouse: | KVM |
Monitor: | KVM |
Optical Drives: | Yes |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition R2 SP1 |
OS Version: | 6.1.7601 (64-bit) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corp. |
JVM Version: | Java(TM) SE Runtime Environment (build 1.6.0_32-b05) |
JVM Command-line Options: | -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy |
JVM Affinity: | start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C000000, 30000000, C0000000, 300000000, C00000000, 3000000000, C000000000, 30000000000, C0000000000, 300000000000, C00000000000, 3000000000000, C000000000000, 300000000000000, C0000000000000, 300000000000000, C00000000000000, 3000000000000000, C000000000000000] |
JVM Instances: | 16 |
JVM Initial Heap (MB): | 1024 |
JVM Maximum Heap (MB): | 1024 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 4/26/2012 Ver1.0a |
Management Firmware Version: | 1.48 |
Workload Version: | SSJ 1.2.9 |
Director Location: | Controller |
Other Software: | None |
JVM Instance | ssj_ops@100% |
---|---|
WIN-FPQHO177L7O.001 | 81,225 |
WIN-FPQHO177L7O.002 | 80,512 |
WIN-FPQHO177L7O.003 | 80,274 |
WIN-FPQHO177L7O.004 | 81,192 |
WIN-FPQHO177L7O.005 | 80,506 |
WIN-FPQHO177L7O.006 | 81,469 |
WIN-FPQHO177L7O.007 | 80,789 |
WIN-FPQHO177L7O.008 | 79,923 |
WIN-FPQHO177L7O.009 | 81,384 |
WIN-FPQHO177L7O.010 | 80,970 |
WIN-FPQHO177L7O.011 | 81,656 |
WIN-FPQHO177L7O.012 | 81,401 |
WIN-FPQHO177L7O.013 | 81,911 |
WIN-FPQHO177L7O.014 | 80,355 |
WIN-FPQHO177L7O.015 | 81,761 |
WIN-FPQHO177L7O.016 | 81,650 |
ssj_ops@100% | 1,296,979 |

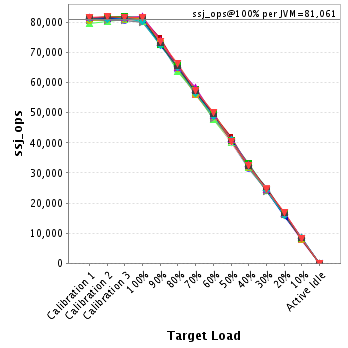

ssj_ops@100% per JVM | 81,061 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,480 | ||
Calibration 2 | 81,398 | ||
Calibration 3 | 81,390 | ||
ssj_ops@calibrated=81,394 | |||
100% | 99.8% | 81,394 | 81,225 |
90% | 89.8% | 73,255 | 73,114 |
80% | 80.0% | 65,115 | 65,112 |
70% | 69.0% | 56,976 | 56,178 |
60% | 59.6% | 48,836 | 48,548 |
50% | 49.9% | 40,697 | 40,620 |
40% | 39.5% | 32,558 | 32,176 |
30% | 30.4% | 24,418 | 24,708 |
20% | 20.1% | 16,279 | 16,391 |
10% | 9.9% | 8,139 | 8,058 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,608 | ||
Calibration 2 | 80,827 | ||
Calibration 3 | 80,656 | ||

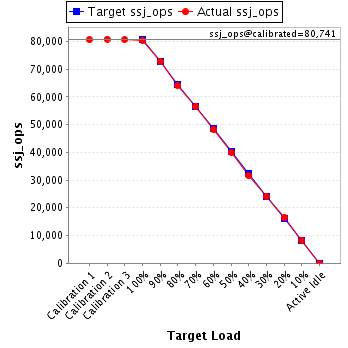

ssj_ops@calibrated=80,741 | |||
100% | 99.7% | 80,741 | 80,512 |
90% | 90.3% | 72,667 | 72,916 |
80% | 79.4% | 64,593 | 64,124 |
70% | 69.9% | 56,519 | 56,430 |
60% | 59.9% | 48,445 | 48,366 |
50% | 49.5% | 40,371 | 40,002 |
40% | 39.1% | 32,296 | 31,598 |
30% | 29.9% | 24,222 | 24,165 |
20% | 20.4% | 16,148 | 16,473 |
10% | 10.1% | 8,074 | 8,150 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,811 | ||
Calibration 2 | 80,458 | ||
Calibration 3 | 80,884 | ||
ssj_ops@calibrated=80,671 | |||
100% | 99.5% | 80,671 | 80,274 |
90% | 91.5% | 72,604 | 73,825 |
80% | 79.0% | 64,537 | 63,711 |
70% | 70.5% | 56,470 | 56,889 |
60% | 59.2% | 48,403 | 47,775 |
50% | 49.9% | 40,335 | 40,284 |
40% | 39.6% | 32,268 | 31,944 |
30% | 30.3% | 24,201 | 24,478 |
20% | 20.1% | 16,134 | 16,198 |
10% | 10.3% | 8,067 | 8,281 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,221 | ||
Calibration 2 | 81,111 | ||
Calibration 3 | 81,490 | ||
ssj_ops@calibrated=81,300 | |||
100% | 99.9% | 81,300 | 81,192 |
90% | 90.3% | 73,170 | 73,408 |
80% | 80.2% | 65,040 | 65,222 |
70% | 69.6% | 56,910 | 56,603 |
60% | 59.7% | 48,780 | 48,533 |
50% | 49.2% | 40,650 | 40,014 |
40% | 40.2% | 32,520 | 32,710 |
30% | 30.1% | 24,390 | 24,511 |
20% | 19.6% | 16,260 | 15,929 |
10% | 10.4% | 8,130 | 8,416 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,174 | ||
Calibration 2 | 81,297 | ||
Calibration 3 | 81,297 | ||

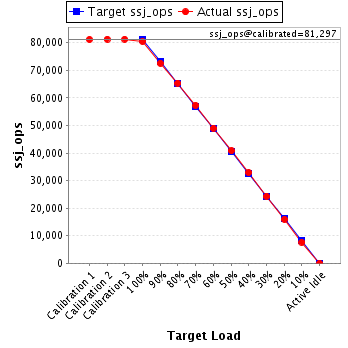

ssj_ops@calibrated=81,297 | |||
100% | 99.0% | 81,297 | 80,506 |
90% | 89.3% | 73,167 | 72,564 |
80% | 80.4% | 65,038 | 65,369 |
70% | 70.5% | 56,908 | 57,342 |
60% | 60.3% | 48,778 | 49,037 |
50% | 50.2% | 40,649 | 40,845 |
40% | 40.5% | 32,519 | 32,940 |
30% | 29.9% | 24,389 | 24,344 |
20% | 19.6% | 16,259 | 15,920 |
10% | 9.4% | 8,130 | 7,644 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,748 | ||
Calibration 2 | 81,465 | ||
Calibration 3 | 81,722 | ||
ssj_ops@calibrated=81,594 | |||
100% | 99.8% | 81,594 | 81,469 |
90% | 89.0% | 73,434 | 72,623 |
80% | 80.8% | 65,275 | 65,909 |
70% | 69.7% | 57,116 | 56,872 |
60% | 60.1% | 48,956 | 49,032 |
50% | 49.4% | 40,797 | 40,292 |
40% | 39.9% | 32,638 | 32,521 |
30% | 29.8% | 24,478 | 24,343 |
20% | 20.2% | 16,319 | 16,449 |
10% | 10.0% | 8,159 | 8,196 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,799 | ||
Calibration 2 | 80,992 | ||
Calibration 3 | 80,828 | ||
ssj_ops@calibrated=80,910 | |||
100% | 99.9% | 80,910 | 80,789 |
90% | 90.1% | 72,819 | 72,928 |
80% | 80.0% | 64,728 | 64,745 |
70% | 70.2% | 56,637 | 56,771 |
60% | 60.5% | 48,546 | 48,918 |
50% | 49.2% | 40,455 | 39,844 |
40% | 39.9% | 32,364 | 32,264 |
30% | 30.0% | 24,273 | 24,234 |
20% | 20.7% | 16,182 | 16,732 |
10% | 10.0% | 8,091 | 8,092 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,841 | ||
Calibration 2 | 80,725 | ||
Calibration 3 | 80,813 | ||
ssj_ops@calibrated=80,769 | |||
100% | 99.0% | 80,769 | 79,923 |
90% | 90.0% | 72,692 | 72,662 |
80% | 80.5% | 64,615 | 64,984 |
70% | 70.1% | 56,538 | 56,588 |
60% | 59.6% | 48,461 | 48,157 |
50% | 50.7% | 40,384 | 40,931 |
40% | 40.2% | 32,307 | 32,454 |
30% | 29.4% | 24,231 | 23,769 |
20% | 20.0% | 16,154 | 16,176 |
10% | 10.3% | 8,077 | 8,283 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,168 | ||
Calibration 2 | 81,562 | ||
Calibration 3 | 81,769 | ||
ssj_ops@calibrated=81,666 | |||
100% | 99.7% | 81,666 | 81,384 |
90% | 91.3% | 73,499 | 74,588 |
80% | 80.0% | 65,333 | 65,298 |
70% | 70.1% | 57,166 | 57,226 |
60% | 60.6% | 48,999 | 49,502 |
50% | 51.1% | 40,833 | 41,735 |
40% | 39.3% | 32,666 | 32,092 |
30% | 29.6% | 24,500 | 24,201 |
20% | 20.4% | 16,333 | 16,649 |
10% | 10.2% | 8,167 | 8,358 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,456 | ||
Calibration 2 | 81,341 | ||
Calibration 3 | 81,388 | ||
ssj_ops@calibrated=81,364 | |||
100% | 99.5% | 81,364 | 80,970 |
90% | 89.1% | 73,228 | 72,491 |
80% | 80.5% | 65,091 | 65,474 |
70% | 69.8% | 56,955 | 56,769 |
60% | 60.8% | 48,819 | 49,481 |
50% | 49.9% | 40,682 | 40,580 |
40% | 39.5% | 32,546 | 32,133 |
30% | 29.8% | 24,409 | 24,231 |
20% | 19.3% | 16,273 | 15,683 |
10% | 10.1% | 8,136 | 8,217 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,499 | ||
Calibration 2 | 81,922 | ||
Calibration 3 | 82,034 | ||
ssj_ops@calibrated=81,978 | |||
100% | 99.6% | 81,978 | 81,656 |
90% | 88.7% | 73,780 | 72,727 |
80% | 80.1% | 65,582 | 65,626 |
70% | 70.6% | 57,385 | 57,885 |
60% | 60.9% | 49,187 | 49,923 |
50% | 49.6% | 40,989 | 40,640 |
40% | 40.3% | 32,791 | 33,036 |
30% | 29.9% | 24,593 | 24,474 |
20% | 20.2% | 16,396 | 16,592 |
10% | 10.2% | 8,198 | 8,367 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,692 | ||
Calibration 2 | 81,070 | ||
Calibration 3 | 81,052 | ||
ssj_ops@calibrated=81,061 | |||
100% | 100.4% | 81,061 | 81,401 |
90% | 90.9% | 72,955 | 73,711 |
80% | 79.7% | 64,849 | 64,588 |
70% | 69.1% | 56,743 | 56,029 |
60% | 60.0% | 48,636 | 48,649 |
50% | 50.5% | 40,530 | 40,919 |
40% | 39.1% | 32,424 | 31,660 |
30% | 29.8% | 24,318 | 24,149 |
20% | 20.0% | 16,212 | 16,241 |
10% | 9.7% | 8,106 | 7,879 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,636 | ||
Calibration 2 | 81,573 | ||
Calibration 3 | 81,792 | ||
ssj_ops@calibrated=81,683 | |||
100% | 100.3% | 81,683 | 81,911 |
90% | 90.4% | 73,515 | 73,874 |
80% | 79.8% | 65,346 | 65,186 |
70% | 71.3% | 57,178 | 58,276 |
60% | 60.2% | 49,010 | 49,167 |
50% | 50.3% | 40,841 | 41,096 |
40% | 40.1% | 32,673 | 32,720 |
30% | 30.2% | 24,505 | 24,649 |
20% | 20.2% | 16,337 | 16,524 |
10% | 10.3% | 8,168 | 8,440 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,211 | ||
Calibration 2 | 80,852 | ||
Calibration 3 | 81,315 | ||
ssj_ops@calibrated=81,084 | |||
100% | 99.1% | 81,084 | 80,355 |
90% | 89.4% | 72,975 | 72,466 |
80% | 80.3% | 64,867 | 65,103 |
70% | 69.8% | 56,759 | 56,561 |
60% | 60.2% | 48,650 | 48,826 |
50% | 50.7% | 40,542 | 41,111 |
40% | 39.5% | 32,433 | 31,995 |
30% | 30.0% | 24,325 | 24,307 |
20% | 19.8% | 16,217 | 16,023 |
10% | 10.5% | 8,108 | 8,521 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,465 | ||
Calibration 2 | 81,534 | ||
Calibration 3 | 81,710 | ||
ssj_ops@calibrated=81,622 | |||
100% | 100.2% | 81,622 | 81,761 |
90% | 89.3% | 73,460 | 72,858 |
80% | 79.9% | 65,298 | 65,218 |
70% | 69.8% | 57,136 | 56,968 |
60% | 60.5% | 48,973 | 49,388 |
50% | 50.0% | 40,811 | 40,837 |
40% | 39.3% | 32,649 | 32,117 |
30% | 30.6% | 24,487 | 25,016 |
20% | 19.9% | 16,324 | 16,224 |
10% | 9.7% | 8,162 | 7,941 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,660 | ||
Calibration 2 | 82,061 | ||
Calibration 3 | 81,803 | ||
ssj_ops@calibrated=81,932 | |||
100% | 99.7% | 81,932 | 81,650 |
90% | 89.9% | 73,739 | 73,653 |
80% | 81.1% | 65,546 | 66,453 |
70% | 70.0% | 57,352 | 57,351 |
60% | 61.0% | 49,159 | 49,969 |
50% | 49.4% | 40,966 | 40,478 |
40% | 39.5% | 32,773 | 32,332 |
30% | 30.1% | 24,580 | 24,630 |
20% | 20.5% | 16,386 | 16,770 |
10% | 10.0% | 8,193 | 8,167 |
Active Idle | 0 | 0 |
