Dell Inc. PowerEdge R420 (Intel Xeon E5-2470, 2.30 GHz) ssj_ops@100% = 1,511,097
ssj_ops@100% per JVM = 94,444
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 22, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,444,259
Calibration 2     1,526,611
Calibration 3     1,529,494
ssj_ops@calibrated=1,528,052
100% 98.9% 1,528,052 1,511,097
90% 89.9% 1,375,247 1,374,059
80% 80.1% 1,222,442 1,223,446
70% 69.9% 1,069,637 1,068,676
60% 59.9% 916,831 915,119
50% 50.0% 764,026 764,363
40% 39.9% 611,221 609,107
30% 29.9% 458,416 457,364
20% 20.1% 305,610 307,187
10% 10.0% 152,805 152,719
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R420
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R420 (Intel Xeon E5-2470, 2.30 GHz)
Form Factor: 1U
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz )
CPU Characteristics: 8 core, 2.30GHz, 20MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC; Slots A1-3,B1-3 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: Dell P/N RYMG6
Disk Drive: 1 x 100GB SATA SSD, Dell P/N DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: Integrated 1 x dual-port Broadcom 5720
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver plan in OS
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1024m -Xms1024m -Xmn800m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.3.5
Management Firmware Version: 1.22.23 (Build 1)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-FF9U195UFVP.001 94,052
WIN-FF9U195UFVP.002 94,039
WIN-FF9U195UFVP.003 94,684
WIN-FF9U195UFVP.004 93,212
WIN-FF9U195UFVP.005 93,318
WIN-FF9U195UFVP.006 95,425
WIN-FF9U195UFVP.007 94,802
WIN-FF9U195UFVP.008 93,878
WIN-FF9U195UFVP.009 94,925
WIN-FF9U195UFVP.010 94,859
WIN-FF9U195UFVP.011 94,827
WIN-FF9U195UFVP.012 95,762
WIN-FF9U195UFVP.013 93,898
WIN-FF9U195UFVP.014 94,589
WIN-FF9U195UFVP.015 93,648
WIN-FF9U195UFVP.016 95,179
ssj_ops@100% 1,511,097
ssj_ops@100% per JVM 94,444

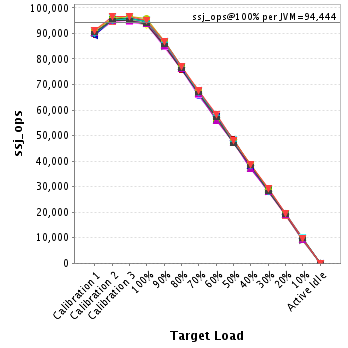

Graph of per-instance results
JVM 'WIN-FF9U195UFVP.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,121
Calibration 2     94,661
Calibration 3     95,572
ssj_ops@calibrated=95,117
100% 98.9% 95,117 94,052
90% 90.0% 85,605 85,600
80% 81.0% 76,093 77,037
70% 70.2% 66,582 66,792
60% 59.7% 57,070 56,771
50% 50.3% 47,558 47,850
40% 40.0% 38,047 38,052
30% 29.6% 28,535 28,170
20% 19.8% 19,023 18,836
10% 9.9% 9,512 9,411
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,187
Calibration 2     94,975
Calibration 3     94,909
ssj_ops@calibrated=94,942
100% 99.0% 94,942 94,039
90% 89.4% 85,448 84,906
80% 80.4% 75,954 76,335
70% 69.0% 66,460 65,542
60% 59.6% 56,965 56,548
50% 49.8% 47,471 47,258
40% 40.5% 37,977 38,410
30% 30.6% 28,483 29,015
20% 20.2% 18,988 19,174
10% 9.8% 9,494 9,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,008
Calibration 2     95,616
Calibration 3     95,222
ssj_ops@calibrated=95,419
100% 99.2% 95,419 94,684
90% 89.7% 85,877 85,553
80% 79.8% 76,335 76,156
70% 70.2% 66,793 66,994
60% 60.5% 57,251 57,682
50% 50.2% 47,709 47,911
40% 39.5% 38,167 37,680
30% 30.2% 28,626 28,819
20% 20.2% 19,084 19,249
10% 10.1% 9,542 9,670
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,507
Calibration 2     95,153
Calibration 3     95,092
ssj_ops@calibrated=95,123
100% 98.0% 95,123 93,212
90% 90.1% 85,610 85,659
80% 79.9% 76,098 75,993
70% 70.6% 66,586 67,113
60% 60.6% 57,074 57,662
50% 49.7% 47,561 47,322
40% 39.4% 38,049 37,439
30% 30.1% 28,537 28,660
20% 20.5% 19,025 19,455
10% 9.7% 9,512 9,212
Active Idle   0 0

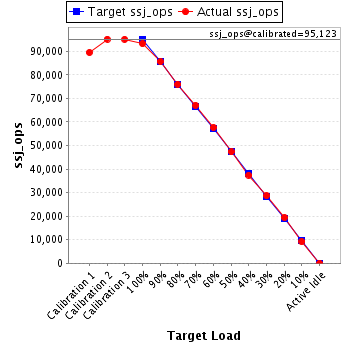

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,497
Calibration 2     94,700
Calibration 3     94,145
ssj_ops@calibrated=94,423
100% 98.8% 94,423 93,318
90% 89.4% 84,980 84,442
80% 80.4% 75,538 75,877
70% 69.5% 66,096 65,624
60% 60.4% 56,654 57,042
50% 50.1% 47,211 47,334
40% 40.2% 37,769 38,000
30% 29.4% 28,327 27,807
20% 20.0% 18,885 18,917
10% 10.2% 9,442 9,608
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,691
Calibration 2     96,198
Calibration 3     96,438
ssj_ops@calibrated=96,318
100% 99.1% 96,318 95,425
90% 90.0% 86,686 86,675
80% 80.0% 77,054 77,056
70% 69.2% 67,423 66,645
60% 59.9% 57,791 57,650
50% 50.5% 48,159 48,642
40% 39.2% 38,527 37,789
30% 29.9% 28,895 28,827
20% 20.2% 19,264 19,485
10% 10.3% 9,632 9,905
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,870
Calibration 2     95,819
Calibration 3     95,967
ssj_ops@calibrated=95,893
100% 98.9% 95,893 94,802
90% 90.2% 86,303 86,487
80% 79.8% 76,714 76,531
70% 69.7% 67,125 66,861
60% 60.6% 57,536 58,092
50% 49.7% 47,946 47,687
40% 39.8% 38,357 38,189
30% 30.4% 28,768 29,147
20% 20.4% 19,179 19,559
10% 10.4% 9,589 9,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,990
Calibration 2     95,285
Calibration 3     95,026
ssj_ops@calibrated=95,155
100% 98.7% 95,155 93,878
90% 89.4% 85,640 85,026
80% 80.5% 76,124 76,629
70% 69.8% 66,609 66,397
60% 59.9% 57,093 56,955
50% 50.8% 47,578 48,314
40% 40.2% 38,062 38,243
30% 29.6% 28,547 28,157
20% 19.9% 19,031 18,903
10% 9.6% 9,516 9,089
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,734
Calibration 2     95,951
Calibration 3     95,944
ssj_ops@calibrated=95,947
100% 98.9% 95,947 94,925
90% 88.9% 86,353 85,284
80% 79.2% 76,758 75,988
70% 70.6% 67,163 67,740
60% 59.6% 57,568 57,169
50% 50.5% 47,974 48,476
40% 40.0% 38,379 38,418
30% 30.0% 28,784 28,780
20% 20.3% 19,189 19,474
10% 10.0% 9,595 9,591
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,375
Calibration 2     95,297
Calibration 3     95,856
ssj_ops@calibrated=95,577
100% 99.2% 95,577 94,859
90% 90.9% 86,019 86,871
80% 79.4% 76,462 75,850
70% 70.6% 66,904 67,496
60% 60.3% 57,346 57,623
50% 50.2% 47,788 47,985
40% 39.0% 38,231 37,277
30% 30.3% 28,673 28,912
20% 20.0% 19,115 19,120
10% 10.2% 9,558 9,791
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,293
Calibration 2     95,322
Calibration 3     95,994
ssj_ops@calibrated=95,658
100% 99.1% 95,658 94,827
90% 90.8% 86,092 86,832
80% 80.7% 76,526 77,205
70% 69.3% 66,961 66,311
60% 58.9% 57,395 56,359
50% 50.0% 47,829 47,808
40% 40.4% 38,263 38,690
30% 30.4% 28,697 29,073
20% 20.0% 19,132 19,136
10% 10.1% 9,566 9,629
Active Idle   0 0

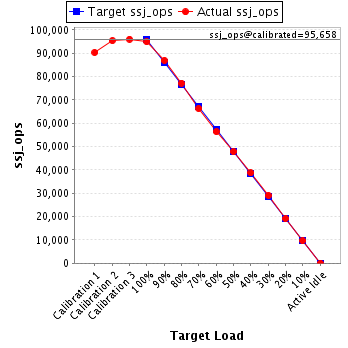

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,279
Calibration 2     95,685
Calibration 3     96,703
ssj_ops@calibrated=96,194
100% 99.6% 96,194 95,762
90% 90.5% 86,574 87,016
80% 79.8% 76,955 76,789
70% 70.3% 67,336 67,604
60% 58.7% 57,716 56,477
50% 49.9% 48,097 48,006
40% 40.3% 38,478 38,806
30% 29.6% 28,858 28,439
20% 19.7% 19,239 18,910
10% 9.9% 9,619 9,481
Active Idle   0 0

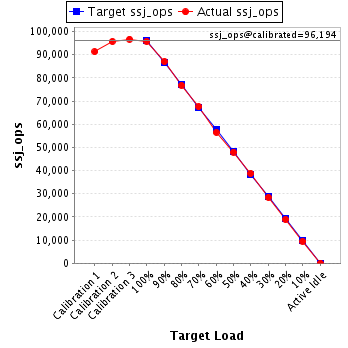

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,209
Calibration 2     94,891
Calibration 3     94,905
ssj_ops@calibrated=94,898
100% 98.9% 94,898 93,898
90% 89.7% 85,408 85,161
80% 80.4% 75,919 76,262
70% 70.2% 66,429 66,612
60% 58.8% 56,939 55,838
50% 49.8% 47,449 47,236
40% 39.3% 37,959 37,296
30% 29.8% 28,469 28,296
20% 19.9% 18,980 18,910
10% 9.8% 9,490 9,324
Active Idle   0 0

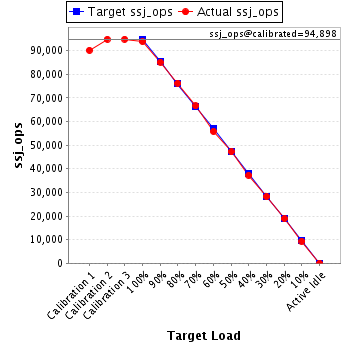

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,179
Calibration 2     95,139
Calibration 3     96,043
ssj_ops@calibrated=95,591
100% 99.0% 95,591 94,589
90% 90.3% 86,032 86,305
80% 80.1% 76,473 76,564
70% 69.8% 66,914 66,760
60% 60.5% 57,355 57,856
50% 49.9% 47,795 47,664
40% 39.9% 38,236 38,123
30% 29.4% 28,677 28,073
20% 20.3% 19,118 19,362
10% 10.0% 9,559 9,603
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,258
Calibration 2     95,241
Calibration 3     95,126
ssj_ops@calibrated=95,184
100% 98.4% 95,184 93,648
90% 89.7% 85,665 85,341
80% 79.9% 76,147 76,039
70% 70.0% 66,629 66,611
60% 59.9% 57,110 57,025
50% 49.3% 47,592 46,893
40% 40.1% 38,073 38,127
30% 29.4% 28,555 28,003
20% 20.0% 19,037 19,036
10% 10.0% 9,518 9,533
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,062
Calibration 2     96,678
Calibration 3     96,552
ssj_ops@calibrated=96,615
100% 98.5% 96,615 95,179
90% 89.9% 86,953 86,901
80% 79.8% 77,292 77,135
70% 69.9% 67,630 67,574
60% 60.4% 57,969 58,369
50% 49.7% 48,307 47,977
40% 39.9% 38,646 38,566
30% 30.2% 28,984 29,186
20% 20.4% 19,323 19,661
10% 10.0% 9,661 9,683
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
